Product Core Brief

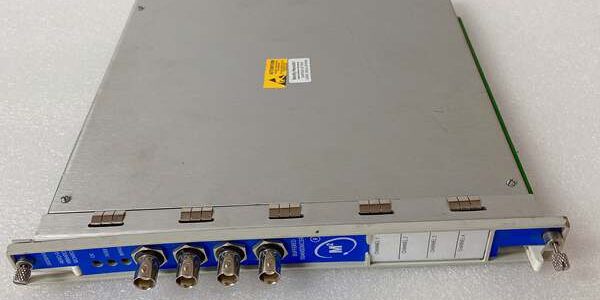

• Model: 3500/44M, rear terminal base PN 176449-03, front card PN 140734-03
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Four-channel dedicated monitor for aeroderivative gas turbines; processes casing velocity/acceleration signals with 1X synchronous vibration tracking and dual Keyphasor input support
• Product Type: Single-slot hot-swappable aeroderivative GT seismic monitor with matched rear I/O terminal base
• Key Specs: 4 independent seismic channels | Dual Keyphasor speed inputs | 4–20mA per-channel recorder outputs
• Note: Active OEM production unit; factory-new, refurbished surplus inventory available, designed exclusively for aeroderivative turbine machinery setups.

Key Technical Specifications

• Channel allocation: 4 fully independent seismic measurement channels, paired rear I/O base 176449-03 for field transducer termination
• Supported transducers: Velomitor velocity sensors, industrial accelerometers via OEM interface hardware (86517 / 86497)
• Keyphasor capacity: 2 separate pulse input channels; allows independent tracking filters for each pair of measurement channels
• Frequency response: 4 Hz to 30 kHz (-3dB); configurable 25/75/100 Hz high-pass filters, fixed 200 Hz low-pass 10-pole filter
• Transducer excitation: 23 VDC nominal supply, maximum 43 mA per channel drive current
• Analog recorder output: Isolated 4–20 mA proportional signal for each channel, 550 Ω output impedance
• Power draw: Maximum 4.8 W continuous load from 24 VDC rack backplane supply
• Galvanic isolation: 1500 VAC channel-to-backplane isolation, short-circuit protected front coaxial signal ports
• Operating temperature: -30°C to +65°C standard; conformal coated variant rated -40°C to +85°C for offshore/hazardous cabinets
• Alarm logic: Up to 8 mode-based alert/danger threshold sets with configurable time delay suppression
• Certifications: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 hazardous area cabinet approval
• Physical weight: 0.91 kg single slot form factor, fully hot-swap compatible without rack de-energization

Product Introduction

This specialized seismic monitor is purpose-built for aeroderivative gas turbine casing vibration surveillance, processing high-frequency acceleration and velocity signals that standard proximity-only monitors cannot accurately condition. It executes synchronous 1X vibration tracking using dual Keyphasor reference pulses to isolate rotor imbalance and synchronous fault signatures unique to lightweight aeroderivative frames.Its primary field advantage is mode-dependent multi-set alarm logic. Operators load separate threshold profiles for startup, base load, and trip conditions to eliminate nuisance vibration alarms during transient turbine speed ramps common to aeroderivative assets.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against OEM production logs to reject counterfeit hardware. Complete physical audit of PCB traces, front coaxial buffered output jacks, rear terminal screw blocks, and channel status LEDs; timestamp photos of all cosmetic wear and connector damage.
2. Live Power-On Testing: Install the device in a calibrated test 3500 rack powered by a Fluke 115 24VDC supply. Run a continuous 24-hour load test with simulated Velomitor and Keyphasor pulse signals to validate stable power draw and consistent backplane data polling to the rack master TDI.
3. Electrical Isolation Testing: Use a megohmmeter to confirm insulation resistance >10 MΩ between all signal channels and rack protective ground; verify zero leakage current across isolation barriers during full signal swing simulation.
4. Firmware & Config Backup: Flash the latest OEM-compatible firmware revision, log exact version numbers, and archive a blank multi-mode alarm configuration file to offline storage. Capture baseline LED behavior during 1X tracking filter activation for fault comparison.
5. Final QC & Packaging: Inject calibrated velocity signals across all four channels to validate linear 4–20 mA recorder output scaling. Place the unit in anti-static foam, attach serialized QC test tag with test timestamp, and seal inside ESD shielding packaging for transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide firmware revisions trigger persistent TX/RX communication faults and disable 1X synchronous tracking logic. Export the full rack firmware stack before swapping the module; never deploy mixed revision firmware sets across rack slots.❗ Rear Terminal Base Mismatch Risk: Pairing the front card with any I/O base other than 176449-03 breaks transducer wiring pinouts and removes built-in channel surge suppression; this creates unfiltered EMI noise and invalid vibration readings.❗ Dual-End Ground Loop Wiring Risk: Grounding Velomitor cable shielding at both the rear terminal base and turbine junction boxes creates circulating ground loop current that distorts casing velocity signals, triggering random nuisance Danger shutdown trips during turbine startup VFD transients.❗ ESD Damage Risk: Ungrounded field tools discharge static through front coaxial buffered output ports, destroying high-frequency ADC front-end circuits; OEM PCB repair costs exceed $1,600 for production hardware.❗ Missing Multi-Mode Alarm Backup Risk: Failing to export mode-specific threshold sets prior to replacement resets all startup/load vibration limits to factory defaults, leaving aeroderivative turbine transient operating states unprotected from unfiltered alarm logic.

4-Step Replacement Guide

1. Pre-install: Attach ESD wrist strap, photograph rear terminal transducer wiring layout, export full rack multi-mode alarm configuration, and record active rack firmware revision set. Capture front LED channel status baseline for post-swap validation.
2. Removal: Unlatch front panel lock levers to disengage backplane pins, slide the unit straight out of its assigned rack slot without bending PCB edge connectors. Disconnect the matched 176449-03 rear I/O base wiring harness.
3. Install: Mount the matching rear terminal base first, align the replacement front card’s backplane pins with the rack bus, slide fully into the slot, squeeze extraction levers to lock contact pins, and re-terminate Velomitor/Keyphasor wiring matching pre-replacement photo layout.
4. Power-on Test: Restore rack power, upload saved multi-mode rack configuration, inject calibrated velocity test signals to all four seismic channels, confirm accurate 1X tracking via Keyphasor input, validate linear 4–20mA DCS trending and functional Alert/Danger alarm state triggers before returning the aeroderivative turbine to automatic operation.

FAQ (Frequently Asked Questions)

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the hardware is rated for hot-swap without full rack power loss. Hardwired channel alarm relay trip logic remains active during removal and replacement, so turbine machinery protection interlocks do not drop out mid-swap.

Q: Can this assembly replace the general-purpose 3500/42M proximity/seismic monitor for aeroderivative gas turbine deployments?A: Not as a direct drop-in. This unit features dedicated dual Keyphasor 1X tracking and multi-mode alarm logic optimized for lightweight aeroderivative frames; the general-purpose monitor lacks specialized synchronous vibration filtering and cannot replicate turbine transient alarm suppression functionality.

Q: What warranty coverage applies to refurbished surplus inventory?A: Refurbished stock carries a 12-month functional warranty covering PCB signal conditioning, backplane communication, and analog output circuits; cosmetic scratches and terminal wear are excluded from claims. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored multi-mode alarm threshold configurations?A: No. All mode-based vibration limits, filter settings, and Keyphasor tracking parameters write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved measurement configuration data.

Q: Does this module independently store transient vibration waveform snapshots on its own PCB?A: No. High-resolution post-fault waveform capture functionality is managed exclusively by the rack’s Slot1 TDI master module; this hardware only processes steady-state seismic measurements and mode-based threshold alarm logic.

Q: Can proximity eddy-current probes be wired directly to this monitor’s signal channels?A: No. This card is designed exclusively for Velomitor velocity and accelerometer seismic inputs; it lacks the oscillator excitation circuitry required to drive 3300 XL proximity probes. Proximity measurements require a separate 3500/42M monitor slot.

Q: What happens if one seismic channel suffers an open or shorted transducer fault?A: The faulty channel triggers a front-panel OK LED fault state and logs the error to rack memory. Remaining three fully functional seismic channels and both Keyphasor tracking inputs continue normal measurement and alarm operation without cross-channel signal interference.
