Component Snapshot At-a-Glance

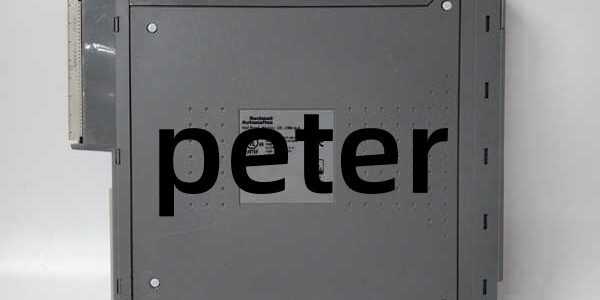

• Model: T8151B; coated harsh environment variant T8151BC
• Alt. P/N: No cross-compatible non-T8151B drop-in substitutes
• Product Series: ICS Triplex Trusted 8000 TMR Safety Instrumented System
• Hardware Type: Hot-swappable dedicated communications interface (CI) rack card
• Key Feature: Triplicated backplane bus with 2oo3 voting to T8110 TMR processor; dual Ethernet + four configurable serial ports to offload external comms traffic
• Primary Field Use: Offload Modbus TCP/RTU, HMI, historian, and third-party DCS communication load from main T8110 safety CPUs to prevent logic scan latency in SIL3 ESD racks.

Hard-Numbers: Technical Specifications

• Protocol Support: Trusted triplicated inter-module bus, Modbus TCP, Modbus RTU Master/Slave, SOE timestamp export
• Port Count: 2×RJ45 10/100Mbps Ethernet; 4×RS232/RS485 serial via T8153 breakout adapter; front panel RS232 diagnostic port; triple isolated backplane connector
• Baud/Data Rate: Backplane scan cycle 0.5ms; serial baud 300–115200; Ethernet auto 10/100 full duplex
• Operating Temperature: 0°C to +60°C standard T8151B; T8151BC rated -40°C to +70°C
• Isolation Rating: 1500VAC opto-isolation on all Ethernet and serial external ports
• Power Draw: 3.5W typical; dual redundant 20–32VDC backplane power feed
• Onboard Hardware: Motorola PowerPC processor; flash firmware storage; hardware watchdog timer
• Safety Rating: IEC 61508 SIL3 certified; Class I Div 2 / ATEX Zone 2 non-incendive approval
• Physical: 266mm H × 303mm D × 31mm W; weight 0.5kg; SmartSlot hot-swap capable

The Real-World Problem It Solves

Running all HMI, historian, and third-party Modbus traffic directly through the T8110 main TMR processor overloads its communication stack, stretching safety logic scan times and risking missed SOE events or delayed ESD interlock evaluation. Single-port comms cards create full data blackouts if one network cable fails mid-process run.

• Where you’ll typically find it:
  • Refinery crude unit SIS racks linking Trusted TMR to plant DCS historians and operator HMIs
  • Combined-cycle power plant burner management safety cabinets pulling gas turbine vibration data via Modbus RTU serial
  • Offshore platform hazardous zone ESD control racks using T8151BC salt-fog resistant coated hardwareDedicating a standalone hot-swappable CI card moves all external communication load off the safety logic CPU, preserves deterministic scan timing, and adds redundant Ethernet paths for uninterrupted supervisory data transfer.

Hardware Architecture & Under-the-Hood Logic

This card uses simplex external communication hardware paired with triplicated backplane bus logic; only data exchanged with the T8110 main processor passes through 2oo3 TMR voting.

1. Dual redundant 24VDC backplane power feeds isolated internal PSU circuits for the PowerPC core, Ethernet transceivers, and serial port drivers.
2. Triplicated inter-module bus interface reads three identical data streams from the T8110 CPU; onboard hardware executes 2-out-of-3 voting before processing external communication requests.
3. Dual isolated Ethernet transceivers operate active/standby; all Modbus TCP and HMI traffic automatically fails over to the secondary RJ45 if the primary link drops.
4. Four configurable RS232/485 serial channels route through T8153 breakout adapter; TVS surge protection blocks wiring transients from field Modbus RTU devices.
5. Front panel diagnostic RS232 port enables local firmware upgrades and fault log extraction without disrupting live network traffic.
6. Onboard watchdog timer resets the communications processor if lockup occurs; fault states, link loss, and comms overloads log millisecond SOE timestamps to flash memory.

Field Service Pitfalls: What Rookies Get Wrong

Double-End Grounding Ethernet & Serial Shield Cables

New techs ground shield braid at both the T8153 serial adapter and remote DCS/historian switch cabinets. Ground loop current corrupts Modbus frames, triggering constant tag timeouts and missing safety alarm data during VFD compressor cycling.

• Field Rule: Terminate all communication cable shield only at the Trusted rack chassis ground bar; tape and fully isolate shield conductors at all remote network enclosures.

Mismatched T8151B Firmware With T8110 Main Processor

Rookies load mismatched CI firmware after hot-swap replacement. Version incompatibility breaks triplicated backplane voting, generates persistent module FAULT LED, and cuts all supervisory HMI/historian communication.

• Quick Fix: Flash identical matched firmware revisions for and all T8151B cards in the rack; run full Modbus point scan and Ethernet failover test before returning SIS to normal operation.

Overloading Serial Ports Without Bandwidth Throttling

Techs stack multiple high-poll Modbus RTU transmitters on one T8151B serial channel without adjusting poll rates. Serial bus saturation causes backpressure that bleeds into the backplane and slows TMR processor scan cycles.

• Field Rule: Split dense Modbus device layouts across separate serial channels; limit poll frequency to 1 second or slower for non-safety auxiliary instruments.
