Component Snapshot At-a-Glance

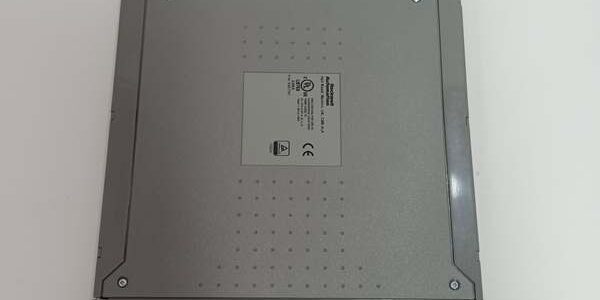

• Model: T8403; harsh environment coated variant T8403C
• Alt. P/N: No cross-compatible drop-in non-T8403 substitutes
• Product Series: ICS Triplex Trusted 8000 TMR Safety Instrumented System
• Hardware Type: Hot-swappable triple redundant 24VDC digital input rack card
• Key Feature: 40 fully triplicated discrete input channels with hardware 2oo3 voting and 1ms resolution SOE logging
• Primary Field Use: Collect safety-critical 24V discrete switch signals (ESD trip contacts, valve position, flame detectors, interlock limits) for SIL3 emergency shutdown logic.

Hard-Numbers: Technical Specifications

• Protocol Support: Trusted proprietary TMR backplane bus; compatible with T8110, T8151 Trusted safety CPUs
• Port Count: 40 field digital input screw terminals; triple isolated backplane edge connector; front per-channel status/fault LEDs
• Baud/Data Rate: Global full rack scan cycle 0.5ms; SOE timestamp resolution 1ms ±0.5ms accuracy
• Operating Temperature: -5°C to +60°C standard T8403; T8403C rated -40°C to +70°C
• Isolation Rating: 2500VAC opto-galvanic isolation between field wiring and three internal TMR slices
• Power Draw: 15–18W maximum full channel load; rack supply 20–32VDC nominal 24V
• Input Electrical: 5kΩ input impedance; 4.8mA typical sink current per channel; withstand ±40VDC field overvoltage
• Diagnostic Modes: Per-channel open/short circuit line monitoring, slice discrepancy detection, auto self-test every 2 minutes
• Safety Rating: IEC 61508 SIL3 certified; Class I Div 2 / ATEX Zone 2 non-incendive approval
• Physical: 266mm H × 303mm D × 31mm W; unit weight 1.18kg; SmartSlot/Companion slot hot-swap capable

The Real-World Problem It Solves

Low-channel TMR digital input cards force stacking multiple modules for large ESD interlock racks, adding dozens of vibration-prone wiring terminations that drift under compressor/turbine runtime. Non-triplicated discrete input hardware creates single-point signal loss that triggers unplanned unit trips.

• Where you’ll typically find it:
  • Refinery hydrocracker SIS racks monitoring emergency shutdown pushbuttons and isolation valve limit switches
  • Combined-cycle power plant burner management safety cabinets for flame detector and purge interlock discrete signals
  • Offshore platform hazardous zone ESD control racks using conformal coated T8403C salt-fog resistant variantsConsolidating 40 safety discrete inputs onto one hot-swappable SIL3 TMR card cuts spare part inventory and eliminates single-slice measurement failure risks via hardware voting.

Hardware Architecture & Under-the-Hood Logic

This card houses three fully independent identical signal processing slices on a single PCB; voting and fault detection run on dedicated onboard hardware separate from the Trusted rack CPU.

1. Rack 24VDC power splits to three electrically isolated power rails, one dedicated to each TMR slice to eliminate cross-slice electrical crosstalk.
2. Each of the 40 field discrete inputs feeds three parallel opto-isolated sampling circuits with built-in TVS surge suppression for field wiring transients.
3. Three matched sampling circuits read the same switch state simultaneously; hardware comparator executes 2-out-of-3 voting to discard outlier faulty readings from a single failed slice.
4. Continuous slice cross-check runs every scan cycle; any mismatch between slices latches a discrepancy fault flag and illuminates front panel module FAULT LED without dropping valid voted switch status values.
5. Voted digital contact state data transmits over isolated backplane bus to Trusted CPU; open circuit, short circuit and slice fault events logged with millisecond SOE timestamps for incident root cause analysis.
6. Front panel LED bank provides local per-channel diagnostics without engineering software; T8403C full acrylic coating blocks salt fog, oil mist and condensation corrosion in offshore and refinery cabinets.

Field Service Pitfalls: What Rookies Get Wrong

Double-End Grounding Discrete Input Shield Cables

New techs ground shield braid at both the T8403 terminal block and remote field junction boxes. Ground loop current creates fluctuating contact readings, generating false interlock/trip pre-alarms during VFD compressor cycling.

• Field Rule: Terminate cable shield only at the Trusted rack chassis ground bar; tape and fully isolate shield conductors at all remote instrument enclosures.

Skipping Full TMR Slice Sync Post Hot-Swap

Rookies pull and reinsert T8403 without waiting for backplane slice auto-sync. Partial seating breaks one redundant slice, disables 2oo3 voting and downgrades SIL3 safety integrity for all 40 channels.

• Quick Fix: After hot swap, wait 90 seconds for slice auto-sync; verify no discrepancy faults via Trusted engineering software before returning SIS to normal operating mode.

Disabling Per-Channel Line Monitoring For Nuisance Alarms

Techs turn off open/short line monitoring to stop intermittent wiring fault alerts from aged field cables. Disabling diagnostics removes visibility to broken trip circuit wiring, creating undetected single-point ESD failure risks.

• Field Rule: Leave line monitoring enabled on all safety SIF channels; repair loose/corroded field wiring instead of disabling diagnostic logic.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
