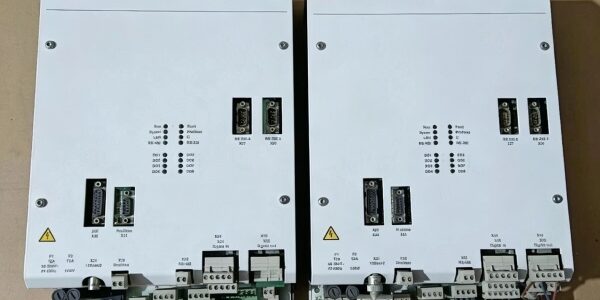

Component Snapshot At-a-Glance

• Model: PFXA401SF
• Alt. P/N: 3BSE024388R4; earlier revision 3BSE024388R1
• Product Series: ABB Advant Master MB300 Legacy DCS Platform
• Hardware Type: Rack-mounted strain gauge / load cell signal processing module
• Key Feature: Built-in high-precision excitation supply, per-channel low-pass filtering, full galvanic isolation for strain transducer wiring
• Primary Field Use: Convert millivolt strain gauge/load cell signals to digital values for paper machine tension, rolling mill force and silo weight control on Advant Master AC410/AC450 controllers.

Hard-Numbers: Technical Specifications

• Protocol Support: MB300 MasterBus parallel backplane bus, proprietary Advant cyclic data exchange
• Port Count: Dual 50-pin rear MB300 edge connectors, front dual D-Sub field transducer ports, multi-status LED front array
• Baud/Data Rate: MB300 bus up to 1 Mbps; strain signal sampling rate 100Hz per channel
• Operating Temperature: -20°C to +60°C full rated measurement accuracy; derate precision above +55°C in hot machine enclosures
• Isolation Rating: 1500VAC galvanic isolation between field strain wiring and MB300 backplane logic
• Power Draw: Typical 6.3W, peak 7.1W; powered entirely via MB300 rack 24VDC backplane (19.2–28.8VDC range)
• Transducer Compatibility: Full bridge strain gauges, load cells with 2–10mV/V sensitivity; onboard regulated 5V transducer excitation
• Measurement Accuracy: ±0.02% full scale linearity, hardware anti-aliasing filters for vibration noise suppression
• PCB Treatment: Factory conformal coating to resist paper mill dust, moisture and oil mist
• Ingress Protection: IP20 vertical rack slot mounting only
• Physical Dimensions: 30mm W × 300mm H × 291mm D; unit weight 0.78kg
• Hot Swap: Not hot-swappable; full rack LOTO power lockout required before card removal

The Real-World Problem It Solves

External standalone strain signal conditioners add extra cabinet hardware, wiring junctions and calibration steps on legacy Advant racks. Unisolated low-grade signal boards pick up heavy VFD and machine vibration noise, causing continuous drifting tension/weight readings that trigger false speed or feeder control corrections. Uncoated bare PCBs corrode rapidly in humid paper mill environments, generating intermittent broken transducer faults during high-speed machine operation.Where you’ll typically find it:

• Paper mill Advant AC450 racks measuring paper web tension via roll-mounted load cells
• Metal rolling mill legacy DCS cabinets monitoring rolling force strain gauge transducers
• Grain/chemical silo weighing control panels connected to silo load cell bridgesIntegrated high-precision signal conditioning eliminates external amplifiers, galvanic isolation blocks machine induced measurement noise, and corrosion-resistant coated PCB cuts unplanned calibration and service calls on aging Advant systems.

Hardware Architecture & Under-the-Hood Logic

This dedicated weighing/tension processor contains a local signal ASIC that handles strain bridge excitation, analog filtering and A/D conversion independent of the main Advant CPU; isolated signal paths prevent transducer wiring transients from damaging the backplane bus.

1. rack backplane delivers filtered 24VDC logic power and high-speed parallel data bus to the dual rear gold edge connectors.
2. Onboard stabilized 5V excitation supply feeds full-bridge strain gauges or load cells connected to front D-Sub field ports.
3. Per-channel passive low-pass RC filters suppress high-frequency machine vibration and VFD electrical noise before analog-to-digital conversion.
4. Local signal ASIC converts millivolt strain signals to calibrated digital weight/tension values, stores zero/tare offset parameters in non-volatile flash memory.
5. Cyclic digital measurement data uploads to the main Advant Master controller over the backplane for closed-loop tension/weight control and HMI display.
6. Front panel bi-color LED bank displays rack power, bus communication, transducer open-circuit fault and measurement over-range alarms for fast on-machine troubleshooting.
7. Dual isolated D-Sub front ports support redundant load cell bridge wiring to maintain measurement continuity if one transducer cable sustains partial damage.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Strain Gauge Cable Shields Causes Severe Measurement Drift

New technicians ground load cell shield braid at both the PFXA401SF front D-Sub port and silo/roll transducer junction boxes. Parallel ground loop AC noise shifts tension/weight readings continuously during VFD cycling.Field Rule: Terminate all strain transducer cable shields only at the Advant DCS cabinet ground bar; fully tape and isolate shield conductors at all remote machine-mounted load cells.

Pulling PFXA401SF Live From Energized Racks

Junior staff extract the strain processor card without full rack power lockout/tagout. Hot edge connector arcing burns backplane gold traces, shorts adjacent I/O cards, and loses all weighing/tension control for the production line.Quick Fix: De-energize the full rack power supply; wait minimum 3 minutes for backplane bus capacitors to discharge before inserting or removing PFXA401SF modules.

Skipping Post-Replacement Transducer Tare & Calibration

Field technicians swap a faulty PFXA401SF card and restart the machine without re-running zero/tare calibration. Uncalibrated offset values deliver inaccurate web tension or silo weight data that creates unstable production control loops.Field Rule: Execute full load cell tare and span calibration via Advant engineering software after every PFXA401SF card swap; verify stable weight readings for 10 minutes before releasing the machine to production.
