Component Snapshot At-a-Glance

• Model: MB510, full factory part number 3BSE044219DB
• Alt. P/N: MB511 (single Ethernet port variant, non-redundant, limited concurrent Modbus connection capacity)
• Product Series: S800 I/O, System 800xA, AC800M modular controller platform

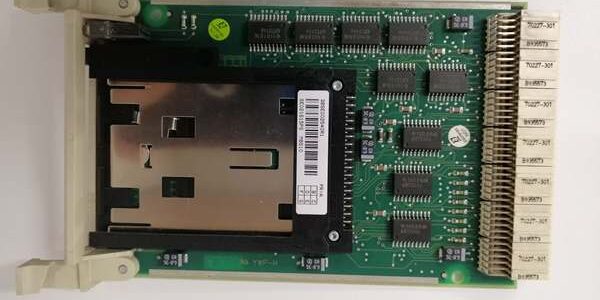

• Hardware Type: Single-slot controller rack plug-in Modbus TCP communication PCB, dual isolated RJ45 Ethernet ports, front multi-status LED diagnostic array
• Key Feature: Dual independent galvanically isolated 10/100Mbps Ethernet ports, native Modbus TCP master stack, full hot-swap capable, supports redundant network topology
• Primary Field Use: Bridge AC800M controller to Modbus TCP RTUs, tank level transmitters, power IEDs, third-party PLCs and remote monitoring field devices over standard plant Ethernet infrastructure

Hard-Numbers: Technical Specifications

• Protocol Support: Modbus TCP/IP master, IEC 60870-5 compatible auxiliary framing, TCP/IP IPv4 stack
• Port Count: 2 × isolated RJ45 10/100Base-TX Ethernet ports, rear controller backplane edge connector
• Baud/Data Rate: Fixed 10/100Mbps auto-negotiation Ethernet, controller backplane fixed cyclic scan timing
• Operating Temperature: -25°C to +70°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation per Ethernet port between field network and controller logic domain
• Power Draw: Max 4.2W total module load, fed 24VDC from AC800M controller rack backplane rail
• Max Concurrent Modbus TCP Connections: Up to 64 simultaneous slave device connections per card
• Hot-Swap Compliance: Fully hot-swap certified; online replacement without controller stop or process trip
• Diagnostic Functions: Port link loss, TCP timeout, register read/write error counters, network collision logging, slave offline tracking
• Physical Weight: 0.24 kg, standard AC800M single slot dimensions, IP20 cabinet-only mounting
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

Single-port MB511 boards lack network redundancy; switch port failures or damaged Ethernet cables cut all Modbus TCP device communication, forcing unplanned process downtime for tank farm and substation monitoring.Unisolated Ethernet communication cards create ground potential offsets between control room controller racks and remote field RTU cabinets; transformer and VFD EMI corrupts TCP packets, triggering random register read errors and frozen HMI tank level values.External third-party Modbus gateways add extra DIN rail enclosures, separate power supplies and extra wiring terminations, increasing maintenance points in compact MCC and control cabinets.Where you’ll typically find it:

• Combined cycle power plant AC800M control racks connecting generator protection IEDs, transformer monitoring RTUs and auxiliary water treatment Modbus transmitters
• Refinery tank farm DCS cabinets pulling level, pressure and temperature data from remote Modbus TCP tank gauging units
• Water treatment plant distributed control chassis communicating with pump station third-party PLCs and flow totalizer RTUsThis dual-port isolated Modbus TCP master card delivers network redundancy for critical field device links, eliminates external gateway hardware, and blocks cross-cabinet ground loop interference to stabilize continuous Modbus data polling.

Hardware Architecture & Under-the-Hood Logic

This board integrates dedicated TCP/IP and Modbus protocol ASICs plus isolated Ethernet physical layer transceivers; all Modbus frame polling, error checking and connection management run locally without saturating the AC800M main CPU.

1. 24VDC controller rack backplane power feeds internal EMI filters, independent isolated DC-DC converters for each Ethernet port, front-panel link and fault LED drivers.
2. Each RJ45 Ethernet channel includes discrete TVS surge suppression to absorb ESD and cable-borne transient spikes from long plant network trunk runs.
3. Separate galvanic isolation barriers for Port A and Port B fully isolate field Ethernet ground from controller backplane logic ground, eliminating circulating ground loop noise currents that drop TCP packets.
4. Onboard Modbus master ASIC schedules cyclic read/write requests to all connected TCP slaves, tracks communication timeouts, and buffers fault event counters in local on-card memory.
5. Front LED bank displays backplane bus active, Port A/B link status, transmit/receive traffic, slave communication loss and standby redundant card status; all fault codes forward to CPU for HMI alarming and maintenance trending.

Field Service Pitfalls: What Rookies Get Wrong

Substituting MB511 Single-Port Cards As Direct Replacements For MB510

Junior technicians install MB511 spare boards without verifying redundant network requirements. Loss of dual Ethernet redundancy removes fault tolerance; single cable or switch failure severs all Modbus field device communication during production shifts.

• Field Rule: Only deploy MB510 for critical Modbus TCP links requiring network redundancy; reserve MB511 spares for non-auxiliary single-network low-priority monitoring points only.

Running Unshielded Office-Grade Ethernet Cable For Field Modbus Trunks

Field crews deploy cheap unshielded CAT5 cable routed parallel to VFD and medium voltage power wiring. Inductive EMI distorts differential Ethernet signals, triggering daily TCP packet loss and intermittent tank level measurement freezes.

• Quick Fix: Install industrial shielded CAT5e/6 Ethernet cable; single-point ground cable shield at the controller cabinet switch end, leave remote RTU cabinet shield floating to avoid dual-ground loops.

Hot-Swapping MB510 Module With Controller Rack Energized

While rated hot-swap, technicians frequently leave all Ethernet field cables plugged during card swap. Live network transients can damage on-card Ethernet transceivers and corrupt active controller I/O register data.

• Field Rule: Disconnect both RJ45 Ethernet field cables first before removing MB510; re-terminate wiring after seating the replacement card fully into the rack slot.
