Component Snapshot At-a-Glance

• Model: CS513, full factory part number 3BSE000435R1
• Alt. P/N: CI546 (VIP serial interface, incompatible MB300 token stack, cannot replace )
• Product Series: ABB S100 I/O, Advant OCS, Advant Controller 450 (PM511V16 CPU) legacy DCS platform

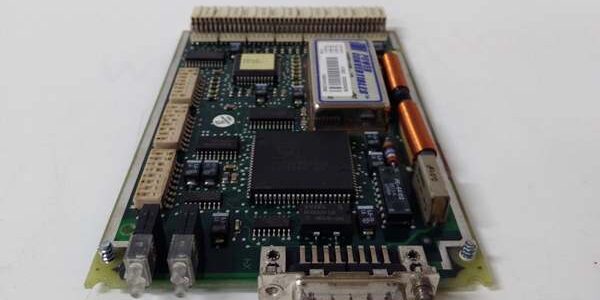

• Hardware Type: Single-slot RF522 master rack plug-in MasterBus 300 communication processor PCB, front DB9 serial MB300 port, multi-status LED diagnostic bank
• Key Feature: Dedicated onboard RISC processor running token-passing MasterBus 300 protocol stack, offloads all HMI trend, alarm and setpoint traffic from PM511 main CPU
• Primary Field Use: Bridge S100 master CPU to MB300 network operator stations, historian servers and remote control room HMI consoles for plant-wide process visualization and data archiving
