Component Snapshot At-a-Glance

• Model: CI541V1, full factory part number 3BSE014666R1
• Alt. P/N: CI546 (VIP serial communication card, no Profibus DP stack, cannot replace CI541V1)
• Product Series: ABB S100 I/O, Advant OCS, Advant Controller 450 (PM511V16 CPU) legacy DCS platform

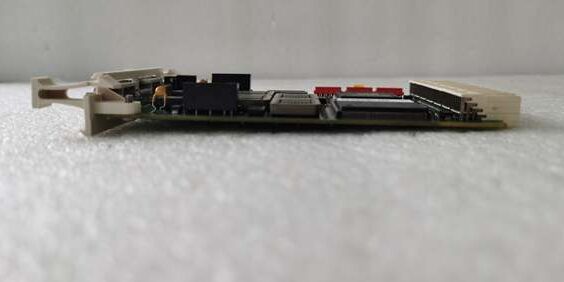

• Hardware Type: Single-slot RF522 master rack plug-in Profibus DP communication PCB, front 9-pin D-Sub DP port, multi-status LED diagnostic bank
• Key Feature: Dedicated isolated Profibus DP-V0 master protocol processor, supports redundant bus layout and full per-slave communication fault logging
• Primary Field Use: Bridge PM511 main CPU to Profibus DP compliant VFDs, intelligent transmitters and third-party DP I/O subracks over fieldbus cabling

Hard-Numbers: Technical Specifications

• Protocol Support: PROFIBUS DP-V0 cyclic data exchange, IEC 61158 fieldbus standard
• Port Count: 1×9-pin D-Sub Profibus DP field port, full rear S100 parallel backplane edge connector
• Baud/Data Rate: Selectable 9.6 kbps up to 960 kbps maximum DP bus speed
• Operating Temperature: -20°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation between DP field wiring and S100 backplane logic domain
• Power Draw: Max 3.6W total module load, fed 24VDC from RF522 master rack backplane rail
• Max Supported DP Slaves: Up to 32 fieldbus devices per single CI541V1 bus segment
• Redundancy Mode: Hot standby dual CI541V1 pair certified for SIL-rated safety control racks
• Diagnostic Functions: Slave offline, bus short circuit, baud mismatch, cyclic data timeout error counters
• Physical Weight: 0.17 kg, standard S100 single slot dimensions, IP20 cabinet-only mounting
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

Running third-party external Profibus gateways to connect DP field devices to Advant AC450 racks adds extra DIN rail hardware, separate 24V power feeds and loose terminal junctions prone to vibration-induced signal loss.Unisolated DP communication hardware creates cross-cabinet ground loop currents between master RF522 racks and remote MCC motor control cabinets; VFD switching noise distorts differential DP waveforms, triggering random slave dropout alarms during unit startup.Generic serial communication cards lack native Profibus DP protocol firmware, requiring custom driver development that extends commissioning timelines for boiler and reactor control projects.Where you’ll typically find it:

• Combined cycle power plant RF522 turbine master racks paired with PM511V16 CPU, connecting generator VFDs and bearing vibration DP transmitters
• Refinery central Advant OCS DCS main chassis driving DP-based flow transmitters and ESD safety valve positioners
• Pulp mill recovery boiler control racks communicating with web tension drives and liquor metering DP field instrumentsThis rack-mounted native Profibus DP master card eliminates external gateway hardware, electrically isolates fieldbus wiring from the control backplane, and delivers standardized DP cyclic data exchange without custom software modifications.

Hardware Architecture & Under-the-Hood Logic

This board integrates dedicated Profibus DP protocol ASIC and isolated differential line transceivers; all DP slave polling, frame parsing and fault logging run locally on the module without burdening the PM511 main CPU.

1. 24VDC RF522 rack backplane power feeds internal EMI filters, isolated dual-domain DC-DC converters separating S100 logic side and DP field bus side power, front-panel status LED drivers.
2. All DP bus differential signal lines pass discrete TVS surge suppression to block ESD and lightning transients from long field cable trunks routed alongside medium voltage power cables.
3. Galvanic isolation barrier electrically separates master chassis ground and remote MCC cabinet ground to eliminate circulating ground loop noise currents that corrupt DP cyclic data frames.
4. Onboard DP master ASIC executes synchronous cyclic input/output data exchange with all connected DP slaves, captures communication error codes and stores fault counters in local buffer registers.
5. Front LED bank displays S100 backplane link active, DP transmit/receive traffic, slave offline fault and standby redundant card status; all fault registers forward to PM511 CPU for HMI alarm display and maintenance logging.

Field Service Pitfalls: What Rookies Get Wrong

Replacing CI541V1 Profibus Card With CI546 VIP Serial Communication Module

Junior technicians install spare CI546 VIP serial boards without verifying protocol stack compatibility. Missing native DP firmware prevents any communication with Profibus field devices, all DP loop process values show blank on HMI screens after card swap.

• Field Rule: Only deploy CI541V1 for dedicated Profibus DP fieldbus slots; reserve CI546 spares exclusively for VIP HMI host serial communication links.

Removing 120Ω Bus Termination Resistors At The End Of DP Trunks

Field crews pull termination resistors on the farthest DP slave to add temporary test transmitters. Unterminated bus signals generate severe waveform reflection noise, causing unstable modulating valve control loops and frequent slave communication timeouts.

• Quick Fix: Maintain active 120Ω termination resistors at the master D-Sub port and the last physical DP slave on every bus trunk segment.

Hot-Swapping Module With RF522 Master Rack Energized

’s bus buffer circuits lack hot-swap rated hardware. Removing the live communication card creates open bus transients that crash the PM511 master CPU and cut all DP fieldbus control communication instantly.

• Field Rule: Cut master rack 24VDC supply breaker and wait 30 seconds for backplane capacitors to discharge before removing or inserting the DP interface module.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
