Component Snapshot At-a-Glance
- Model: 4329
- Alt. P/N: 4329G (factory upgraded revision; partial firmware lock vs base 4329, not blind swap compatible)
- Product Series: Triconex Tricon V9/V10 SIL3 TMR SIS rack family, NCM dedicated network communication lineup
- Hardware Type: Rack mounted triple redundant Network Communication Module (NCM)
- Key Feature: Dual isolated BNC 10BASE2 coax Ethernet ports split into safety/internal & external open network lanes
- Primary Field Use: Transmit Tricon SIS tag data to HMI, plant historians, third-party DCS/SCADA via Ethernet/Modbus TCP/OPC server links

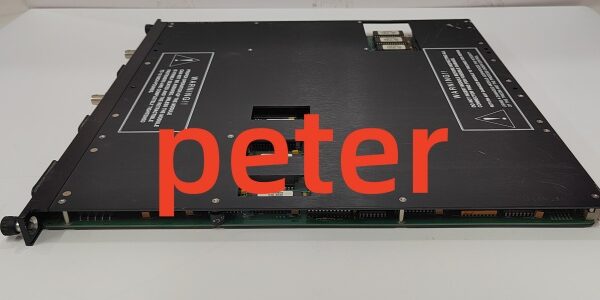

4329
Hard-Numbers: Technical Specifications
- Supported Protocol: TSAA proprietary Tricon safety net, Modbus TCP/RTU, OPC, TCP/IP, IEEE802.3 10BASE2
- Port Count: 2×BNC coax Ethernet +1×front RS232 debug serial + internal TriBus backplane connector
- Fixed Network Speed: 10 Mbps 10BASE2 thinnet over RG58 50Ω coaxial cable
- Isolation Rating: 500VDC galvanic isolation between external network ports and internal TMR core circuits
- Operating Temperature: -40°C ~ +70°C continuous running; -40°C ~ +85°C non-operational storage
- Backplane Power Draw: 5W nominal steady draw from chassis 24VDC (18~30VDC allowable input range)
- Safety Certification: IEC61508 SIL3, TÜV certified, UL Class I Div2 hazardous location approval
- Hot-Swap Status: Full live hot-swap permitted on energized SIS rack without triggering plant safety interlocks
- Max Coax Run Length: 185m per trunk for standard RG58 thin Ethernet cabling
The Real-World Problem It Solves
Stacked standalone third-party protocol gateways multiply earth loop risks and add extra maintenance points between SIS and site SCADA; single gateway power loss cuts all safety tag visibility to control room operators. Older single-channel comm cards lose full data feed from transient EMI near large compressor motor starters.
Where you’ll typically find it:
- Refinery FCC ESD rack linking Tricon SIS shutdown tags to Honeywell DCS OPC server via external NET2 port
- Onshore gas plant BMS cabinets pushing boiler trip & flame status to central plant historian over coax LAN
- Offshore platform F&G SIS rack syncing time stamp data across multiple distributed Tricon chassis on dedicated NET1 safety network
Built-in TMR voting and split dual-network architecture eliminates auxiliary third-party gateway hardware and reduces external wiring fault exposure.
Hardware Architecture & Under-the-Hood Logic
Three separate onboard microcontroller cores run independent network stack code on segregated PCB traces; no shared clock circuitry to limit common-mode surge damage across redundant lanes.
- SIS process and safety tag data from 3007 main CPU arrives simultaneously across TriBus backplane to all three isolated 4329 processing cores.
- Each core independently packages raw SIS data into target protocol frames (Modbus/TSAA/TCP) without cross-lane data referencing.
- Hardware 2oo3 voting circuit filters corrupted frames triggered by coax noise or single core component drift before releasing to front panel BNC ports.
- Inbound commands from external DCS/SCADA split evenly across three isolated input transceivers for redundant validation before backplane upload to main processor.
- Front panel LED status: all green = full three-lane healthy; single amber = one degraded channel; solid red = dual lane fault requiring spare replacement.
- Onboard flash memory retains network IP, port partitioning and protocol setup through full chassis power outage, no post-restart reconfiguration required.
4329
Field Service Pitfalls: What Rookies Get Wrong
Dual-End Grounding RG58 Coax Cable ShieldingNew techs ground thinnet coax shield drain wire at both SIS cabinet and remote DCS panel chassis. Potential earth potential difference creates circulating ground loop current causing cyclic tag dropouts during large motor startup surges.
- Field Rule: Terminate coax shield only at 4329 host cabinet side; route all RG58 cabling minimum 15cm clear of 480V AC power conduit.
Mix NET1 Safety & NET2 External Network Cabling Into Same TrunkField crews patch external SCADA wiring onto NET1 dedicated safety coax bus. External network noise bleeds into SIS safety sync bus triggering intermittent chassis time sync error and sporadic tag freeze.
- Quick Fix: Strict physical separation between NET1 (Tricon internal safety net) and NET2 (open external DCS link); never cross-connect BNC ports on 4329.
Ungrounded Office Laptop Plugged Direct Into Front RS232 Debug PortStandard mains-grounded field laptop connects straight to serial debug port during live setup. Earth voltage mismatch creates transient spike damaging onboard serial transceiver IC on one redundant lane.
- Field Rule: Only battery-powered floating field laptop or opto-isolated RS232 adapter allowed for live front-panel debug work.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
