Component Snapshot At-a-Glance
- Model: 4108
- Alt. P/N: 4118 (galvanically isolated upgraded variant, not direct blind swap; requires chassis config edit)
- Product Series: Triconex Tricon V9/V10 SIL3 TMR SIS safety rack lineup, EICM serial gateway family
- Hardware Type: Triple Modular Redundant Enhanced Intelligent Communication Module (EICM), rack plug-in backplane card
- Key Feature: Three independent isolated serial transceiver banks supporting dual-channel RS232/RS422 per redundant lane, TMR voting on all inbound serial frames
- Primary Field Use: Bridge Tricon SIS TriBus data to third-party field devices: turbine governors, local panel PLC, HMI via Modbus RTU serial protocol

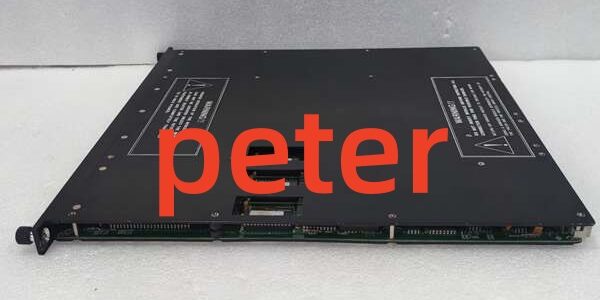

TRICONEX 3501E
Hard-Numbers: Technical Specifications
- Supported Protocol: Modbus RTU Master/Slave, native TriBus, RS232 point-to-point, RS422 multi-drop serial
- Port Count: 2×front terminal block serial ports (configurable RS232/RS422) + internal TriBus backplane edge connector
- Max Baud Rate: 19200 baud fixed upper limit; field common setup 9600/38400 baud
- Operating Temperature: -40°C ~ +70°C continuous operational; -40°C ~ +85°C storage rating
- Internal Core Isolation Rating: 1000VDC galvanic separation between three onboard TMR processing cores
- Nominal Power Draw: 6.2W steady draw from chassis 24VDC (18~30VDC acceptable input tolerance)
- Safety Certification: IEC61508 SIL3 certified, UL Class I Div2 approved for hazardous plant locations
- Hot-Swap Status: Full live hot-swap capable on powered SIS rack with zero safety interlock trip risk
- Max Serial Cable Length: 1200m shielded twisted pair for RS422 multi-drop field runs
The Real-World Problem It Solves
Bundling external standalone Modbus converters adds extra power feeds and junction boxes near process equipment; every extra intermediate device creates single-point failure that cuts critical turbine or compressor trip feedback to SIS rack. Unshielded third-party serial adapters pick up VFD EMI noise causing cyclic Modbus register corruption mid-run.
Where you’ll typically find it:
- Gas plant compressor ESD rack linking Tricon SIS to Woodward turbine governor via RS422 Modbus multi-drop trunk
- Refinery hydrocracker BMS cabinet pulling furnace flame scanner status from local panel PLC over RS232 direct wiring
- Onshore boiler SIS rack feeding permissive tag data to standalone local HMI terminal
Integrated TMR serial transceiver design eliminates auxiliary external protocol converters and reduces field wiring fault exposure for critical safety serial links.
Hardware Architecture & Under-the-Hood Logic
Three segregated PCB processing cores run independent serial stack firmware on separated copper traces; no shared power regulation paths to mitigate common-mode surge damage across redundant lanes.
- Safety tag data from 3007 main processor routes simultaneously across TriBus backplane into all three isolated 4108 core circuits.
- Each core independently packages internal SIS register data into Modbus frame format without referencing adjacent lane calculation outputs.
- Hardware 2oo3 voting circuit filters noise-corrupted serial payloads before routing finalized frames to front-panel terminal serial transceivers.
- Inbound Modbus commands from field equipment split evenly across three isolated input receivers for redundant validation before backplane upload to main CPU.
- Front panel LED array status: full green = all three lanes healthy; single amber = degraded core; solid red = dual-lane fault requiring spare replacement.
- Onboard nonvolatile flash retains port baud, master/slave mode, and Modbus address config through full rack power loss, no post-restart reconfiguration needed.
TRICONEX 3501E
Field Service Pitfalls: What Rookies Get Wrong
New field techs patch multi-drop field wiring into RS232 pin assignments; mismatched pinout triggers constant framing errors and intermittent Modbus register dropout under motor startup surge.
- Field Rule: Label each terminal pair pre-commissioning; strictly separate point-to-point and multi-drop wiring into isolated terminal groups.
Single-Ended Serial Cable Shield Dual Grounding At Both EndsCrews ground twisted-pair drain wire at SIS cabinet and remote field device chassis; earth potential difference creates circulating ground loop current that corrupts serial data near high-current VFD drives.
- Quick Fix: Terminate cable shield only at 4108 host rack side; route serial wiring minimum 20cm clear of 480V AC power cable trays.
Mains-Grounded Laptop Direct Connection To Live Serial DebugStandard site grounded office laptop plugs straight into unused front serial port for live debug; earth voltage mismatch generates transient spike damaging one onboard serial transceiver core.
- Field Rule: Only battery-powered floating field laptop or opto-isolated serial adapter permitted for live port troubleshooting.
