Component Snapshot At-a-Glance

• Model: 3007
• Alt. P/N: No direct OEM cross; limited conditional swap with 3006 only after firmware downgrade onsite
• Product Series: Triconex Tricon EMP II Enhanced, V9 / V10 SIS safety rack family
• Hardware Type: Triple Modular Redundant (TMR) Main Processor Module (MPM), rack-mounted core CPU card
• Key Feature: Three fully isolated independent processing lanes with hardware 2oo3 voting on TriBus backplane
• Primary Field Use: Executes SIS safety logic, processes all chassis I/O data, routes cross-system comms to DCS gateway cards like 4409/4609 in ESD/BMS racks

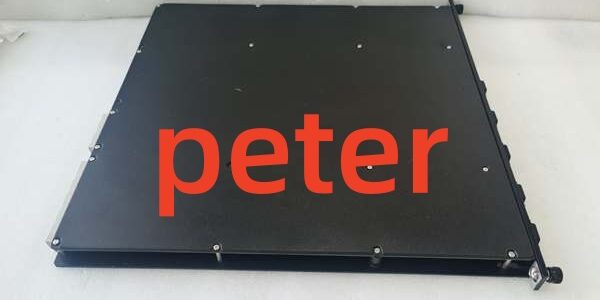

Triconex 4351B

Hard-Numbers: Technical Specifications

• Supported Protocol: TriBus backplane(4Mbps), onboard RS232 debug, RS485 peer-to-peer, Modbus via add-on comm modules
• Port Count: 1x front-panel RS232 engineering port + internal TriBus edge connector for rack backplane
• TriBus Data Rate: 4 Mbps fixed backplane bus speed, 16-bit DMA transmission
• Operating Temperature: -40°C ~ +70°C continuous operational; -40°C ~ +85°C storage rating
• Backplane Isolation Rating: 2000VDC galvanic isolation between each of three internal processor cores
• Typical Power Draw: 15W nominal from rack 24VDC TriBus supply (18~30VDC acceptable input range)
• Memory Spec: 1MB SRAM, onboard flash for firmware/program storage; lithium backup RTC battery
• Safety Rating: IEC61508 SIL3, TÜV certified, UL Class I Div2 hazardous location approval
• Hot-Swap Status: Full live hot-swap enabled; single faulty lane card pulls without tripping plant SIS interlocks

The Real-World Problem It Solves

Custom split PLC setups force separate logic controllers for shutdown and DCS bridging, introducing multiple single-failure points that can lock out entire plant ESD protection during power transients. Older single-core CPUs drop tag integrity from EMI spikes common near large pump and compressor motor feeds.

Where you’ll typically find it:

• Refinery FCCU ESD main rack coordinating fuel gas trip logic and UCN data handoff to Honeywell TDC3000 via 4409 card
• Power plant boiler BMS cabinets managing furnace permissive and flame safeguard safety interlocks
• Offshore platform F&G SIS racks forwarding fire alarm trip signals to site DCS via dedicated comm modules

Integrated TMR voting eliminates single-point CPU failure and consolidates all safety logic onto one rack core to cut auxiliary control hardware footprint.

Hardware Architecture & Under-the-Hood Logic

Three segregated PCB processor lanes run identical safety program code with no shared clock traces to limit common-cause surge damage across cores; each lane independently samples backplane I/O data before cross-lane validation.

1. Field I/O module raw data travels across TriBus backplane simultaneously to all three isolated 3007 processing cores.
2. Every core executes the full user safety logic independently without referencing calculation results from adjacent lanes.
3. Onboard voting hardware compares three sets of computed output values, applies 2-out-of-3 rule to filter single-core corrupted readings from EMI or component drift.
4. Validated final output commands get pushed back out TriBus to respective digital/analog output terminal modules.
5. Front panel LED array reports lane health: all green = full TMR healthy; single amber = one degraded core; solid red = dual-lane fault requiring spare replacement.
6. Internal lithium battery sustains onboard RTC and SRAM content for weeks after full rack de-energization to prevent program loss post blackout.

Triconex 4351B

Field Service Pitfalls: What Rookies Get Wrong

Mismatched Firmware Between 3007 and Existing Rack HardwareNew technicians drop spare 3007 with newer firmware revision into legacy V9 racks preloaded for older 3006 code. Version mismatch triggers intermittent TriBus CRC errors and random tag freeze mid-running process.

• Field Rule: Cross-check chassis firmware revision via TriStation before spare install; flash matching firmware to replacement card offline prior to hot swap.

Ignoring Backup Battery Degradation During Preventive MaintenanceCrews skip annual battery test; dead onboard lithium cells drain SRAM during rack power outage, wiping resident safety program and forcing full logic reload after restart.

• Quick Fix: Measure battery terminal voltage at every turnaround; replace cell when below 2.7V open-circuit reading.

Live RS232 Debug With Ungrounded Office-Grade LaptopStandard grounded desktop laptop plugs straight into front debug port; earth potential difference creates transient surge that fries onboard RS232 transceiver IC on one CPU lane.

• Field Rule: Only battery-powered floating field laptops or opto-isolated serial adapters connect to live running 3007 debug ports.
