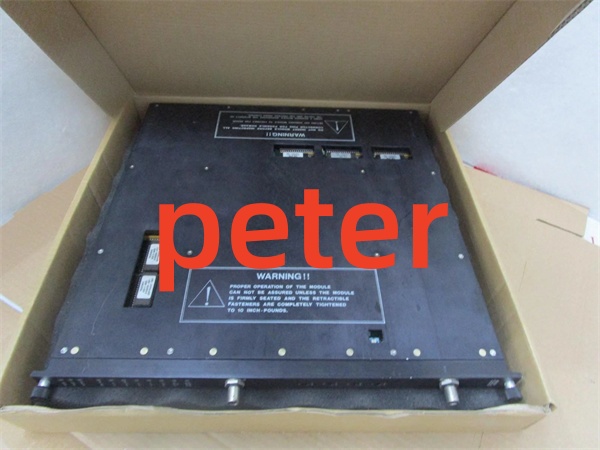

Component Snapshot At-a-Glance Model: Triconex 4508 (HSC, High-Speed Channel Interface) Alt. P/N: 7400156-100 Product Series: Tricon 8000 Series (SIS/ESD) Hardware Type: TMR high-speed DCS gateway module Key Feature: Proprietary HSC protocol, TMR voting, fiber/copper link to Honeywell Experion Primary Field Use: Connects Tricon SIL3 SIS to Honeywell Experion PKS DCS for safety data exchange.
Component Snapshot At-a-Glance Model: Triconex 9001NJ (6ft) Alt. P/N: 9001 (short form), 7400120-060 (factory assembly) Product Series: TRICON 3000/4000 TMR Safety Instrumented System Hardware Type: 6-foot TMR system interconnect ribbon cable assembly (backplane to I/O chassis) Key Feature: TMR triple-path signaling, shielded, keyed connectors, 6ft length Primary Field Use: Linking main chassis to expansion I/O…
Component Snapshot At-a-Glance Model: Triconex 3704E Alt. P/N: 7400125-110 (factory kit number) Product Series: Tricon 3000/4000 TMR Safety Instrumented System Hardware Type: 64-channel non-isolated analog input (AI) module Key Feature: High-density 64pt, 12-bit, 0–5V/0–10V software-selectable, TMR architecture Primary Field Use: Bulk analog voltage sensing for ESD, BMS, and process safety loops where isolation is not…
Component Snapshot At-a-Glance Model: Triconex 9563-810 Alt. P/N: 9563-820 (diagnostic enhanced version) Product Series: Tricon EMPII 3006 Safety Instrumented System Hardware Type: 16-channel digital input external termination panel (DI ETP) Key Feature: 1500VAC channel-to-ground isolation + per-channel 500mA slow-blow fuse Primary Field Use: Interfaces Tricon 3006 DI modules to 24VDC field switches and discrete sensors.

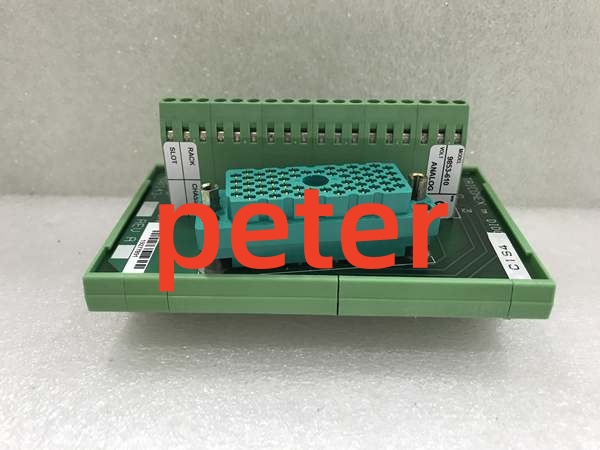

Component Snapshot At-a-Glance Model: Triconex 9853-610 Alt. P/N: 9853-620 (diagnostic enhanced version) Product Series: Tricon 3700 Safety Instrumented System Hardware Type: 8-channel basic analog output termination panel Key Feature: Configurable 4-20mA or 0-10V signal with 500VDC galvanic isolation Primary Field Use: Interfaces Tricon 3721/3722 AO modules to analog field actuators and control valves. Hard-Numbers:…
Component Snapshot At-a-Glance Model: Triconex 8105 Alt. P/N: None; 8106 = tall-panel variant Product Series: Tricon 3000 TMR System, fits 8110/8111/8121 chassis Hardware Type: Metal blank I/O slot panel (filler plate) Key Feature: Seals unused slots, maintains EMC shielding & airflow Primary Field Use: Covers empty I/O slots in Tricon safety racks to prevent EMI…

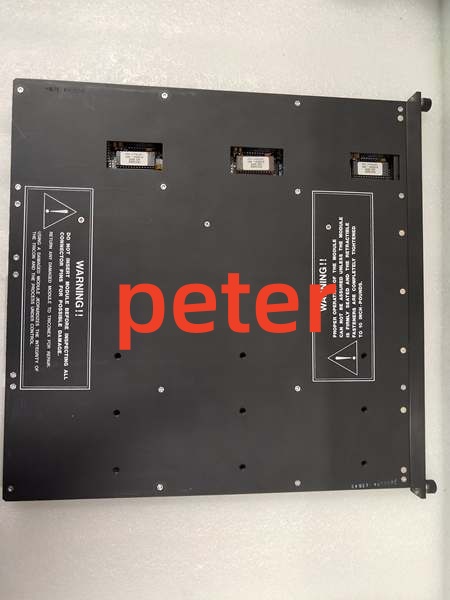

Component Snapshot At-a-Glance Model: Triconex 3504E Alt. P/N: 3504EB (variant); 3505E (32-ch 24VDC low-threshold) Product Series: Tricon 3000 TMR I/O Family, CX/EX/RX rack compatible Hardware Type: 64-channel DC-coupled digital input module, commoned 8 groups × 8 channels, hot-swap capable Key Feature: 20–72VDC wide-range operation, highest density TMR DI in Tricon line Primary Field Use: Monitor…
Component Snapshot At-a-Glance Model: Triconex 3601E Alt. P/N: DC counterpart = 3603E; supervised AC = 3602E Product Series: Tricon 3000 TMR I/O Family, CX/EX/RX rack compatible Hardware Type: 16-channel non-commoned 115VAC digital output module, hot-swap capable Key Feature: 1500VDC channel-to-channel isolation, per-channel fuse/load diagnostics Primary Field Use: Drive 115VAC solenoids, contactors, and alarm devices in…

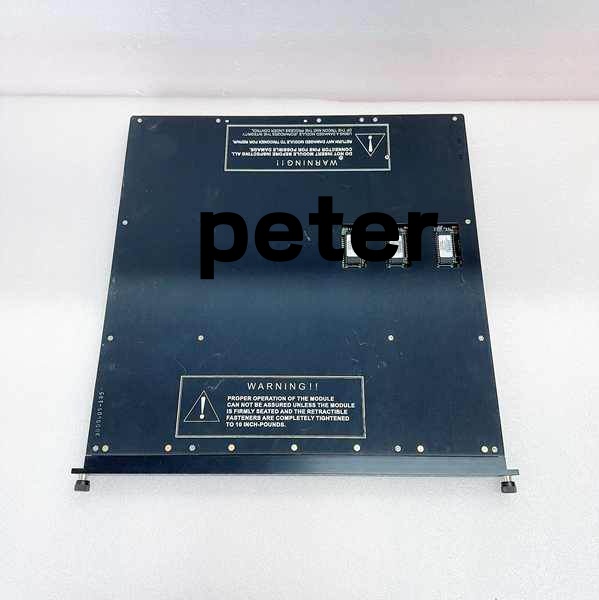

Component Snapshot At-a-Glance Model: Triconex 3617E Alt. P/N: No direct cross-replacement; lower voltage equivalent = 3614E, higher voltage equivalent = 3623 Product Series: Tricon 3000 TMR I/O Family, compatible with CX, EX, RX chassis Hardware Type: 8-channel supervised solid-state digital output module, single-slot hot swappable Key Feature: Non-commoned 48VDC outputs with built-in pulse test for…
Component Snapshot At-a-Glance Model: Triconex 3614E Alt. P/N: 6100305-470; no direct cross-brand equivalent Product Series: Tricon 3000 Series TMR I/O, fits CX/EX/RX SIS racks Hardware Type: 8-channel supervised TMR digital output module, single-slot hot-swap Key Feature: Per-channel pulse-test diagnostics; 1500VDC isolation; non-commoned outputs Primary Field Use: Driving critical 24VDC ESD solenoids, trip relays, and safety…
