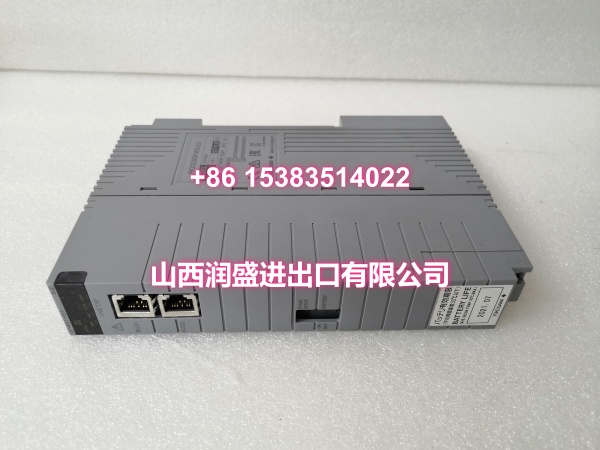

Product Core Brief
- Model: EC401-50 S3
- Brand: YOKOGAWA
- Series: CENTUM CS 3000 R3 FFCS / ESB Bus Coupler
- Core Function: Provides a 1-port ESB bus interface to connect direct-coupled extension nodes to the FFCS CPU node.
- Product Type: ESB Bus Coupler Module
- Key Specs: 1-port ESB bus | Supports dual-redundant configuration | For N-IO/FIO extension nodes
- Condition: New Original / New Surplus
Key Technical Specifications
- Product type: ESB Bus Coupler Module
- Model suffix: -50 (standard type, no explosion protection), 0 (basic type)
- Series compatibility: CENTUM CS 3000 R3 FFCS
- Bus interface: ESB bus, 1 port
- Coupled module: SB401 ESB Bus Slave Interface Module
- Application: Connects direct-coupled extension nodes to the FFCS CPU node
- Redundancy: Dual-redundant operation supported when two couplers are installed
- Mounting location: IOM section of the FFCS CPU node
- Typical use: N-IO/FIO remote or extension I/O expansion
- Handling: ESD-sensitive industrial control module
Product Introduction
The EC401-50 S3 is an ESB bus coupler module used in YOKOGAWA CENTUM CS 3000 R3 FFCS architectures. It sits in the CPU node’s IOM section and links the processor to direct-coupled extension nodes through the SB401 slave interface.
For maintenance teams, this module is most useful when keeping an existing FFCS station online during spare-part replacement or I/O expansion. Dual couplers can be installed for redundancy, which helps protect communication between the CPU node and its extension racks.
QA & Testing SOP
Each unit is treated as a controlled DCS spare. Before release:
- Visual and label inspection: Housing, connectors, PCB condition, and model/suffix markings are verified against OEM identification.
- Connector and pin check: ESB bus and backplane contacts are inspected for bent pins, oxidation, or mechanical damage.
- Power-up verification: The module is energized within rated limits to confirm normal startup behavior.
- Backplane seating check: Mechanical fit and alignment are confirmed to avoid poor contact in the IOM slot.
- ESD-safe packaging: Units are packed in anti-static materials with moisture protection for shipment.
Full loop validation requires a compatible FFCS CPU node, SB401 slave module, and correct DCS configuration. Site-specific testing should follow plant procedures.
Installation Pitfalls & Guide
❗ Do not hot-swap unless the FFCS design explicitly permits it. ESB couplers sit in the CPU node IOM section; incorrect insertion can damage backplane contacts.
❗ Match the slave module correctly. The EC401-50 S3 couples with SB401 slave interface modules in extension nodes. Using the wrong bus type will prevent communication.
❗ Verify redundancy configuration. If dual couplers are required, both slots, addresses, and DCS configuration must match. A single mismatched module can break redundant operation.
❗ Handle as ESD-sensitive hardware. Use a grounded wrist strap and keep the module in anti-static packaging until installation.
Replacement steps:
- Pre-install: Confirm model suffix, slot position, DCS configuration backup, and whether redundancy is active.
- Removal: De-energize the station if required, release locking hardware, and remove the module straight out of the IOM slot.
- Install: Align pins carefully, seat the module firmly, and secure locking hardware.
- Power-on test: Restore power, check module status, verify ESB bus communication, and confirm extension node recognition in the DCS.
Technical FAQ
What does the “S3” suffix mean?
“S3” typically indicates CENTUM CS 3000 R3 platform compatibility. Always confirm the exact revision and configuration with your DCS documentation before installation.
Can one EC401-50 S3 replace a failed coupler in a redundant pair?
Yes, if the slot, configuration, and firmware level match. However, redundant pairs should be validated after replacement to ensure both ESB bus paths are healthy.
Is it compatible with CENTUM VP?
The EC401-50 S3 is primarily associated with CENTUM CS 3000 R3 FFCS. CENTUM VP supports backward compatibility in some configurations, but cross-platform use must be confirmed against the current system architecture.
Can this module be used with ER-bus or V net?
No. This is an ESB bus coupler. ER-bus and V net use different interface modules such as EB401, EB501, or V net couplers.
Do you offer warranty on surplus stock?
Surplus and new-original units are generally covered by a limited functional warranty. Exact terms depend on stock source, so confirm warranty length and return conditions before ordering.
