Product Core Brief
- Model: A6500-UM
- Brand: Emerson (CSI / AMS 6500 Series)
- Core Function: Provides high-precision, dual-channel measurement for vibration, position, and speed on critical rotating assets.
- Product Type: Universal Measurement Card
- Key Specs: 2 Analog Channels | 24-bit ADC | 18.75 kHz Fmax | 5 DI / 6 DO | 3U Form Factor
- Condition: New Original / New Surplus

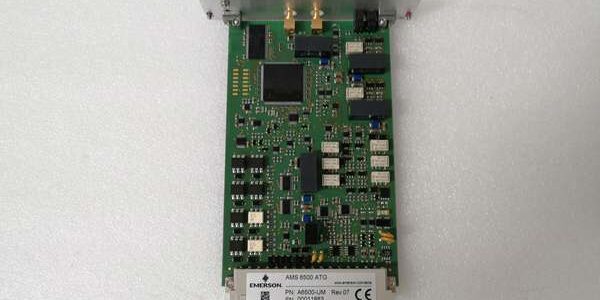

EMERSON A6500-UM
Product Introduction
The EMERSON is a versatile Universal Measurement Card designed for the AMS 6500 Machinery Health Monitor system. It serves as the primary data acquisition front-end for both API 670 mechanical protection and online condition prediction on critical rotating equipment like turbines, compressors, and pumps.
This module features two independent sensor input channels that support a wide variety of sensors, including eddy current probes, piezoelectric accelerometers, velocity sensors, and LVDTs. With a 24-bit ADC resolution and a sampling rate of 48k samples/sec (Fmax 18.75 kHz), it captures high-fidelity waveforms, spectra, and PeakVue data for advanced diagnostics. Beyond analog inputs, it also integrates 5 digital inputs and 6 digital outputs, allowing for consolidated monitoring of machine status and control signals within a single 3U slot.
Key Technical Specifications
- Module Type: Universal Measurement Card (Analog + Digital I/O)
- Form Factor: 3U, 1-Slot Plug-in Module
- Analog Channels: 2 Independent Sensor Inputs
- ADC Resolution: 24-bit
- Sampling Rate: 48k samples/sec (Fmax 18.75 kHz)
- Digital I/O: 5 Digital Inputs, 6 Digital Outputs (Isolated)
- Supported Sensors: Eddy Current, Piezoelectric (Accel/Vel), Seismic, LVDT, Hall Effect
- Communication: Internal RS-485 to A6500-CC (Modbus TCP/RTU, OPC UA)
- Software Integration: AMS Machinery Manager, DeltaV, Ovation
- Operating Temp: -20°C to +70°C
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify part number . Inspect the rear Euro-connector and front panel USB/Status LEDs for physical damage.
- Visual Inspection: Check the PCB for corrosion, flux residue, or signs of overheating. Ensure the module slides smoothly into the AMS 6500 chassis.
- Live Functional Test: Install in the AMS 6500 rack. Verify the module is recognized by the A6500-CC communication card and the “OK” LED illuminates.
- Signal Path Test: Inject simulated sensor signals. Verify accurate ADC conversion, spectrum generation, and digital output triggering via AMS Machinery Manager.
- Final QC & Packaging: Seal in an anti-static bag. Apply a QC Passed label with the date.

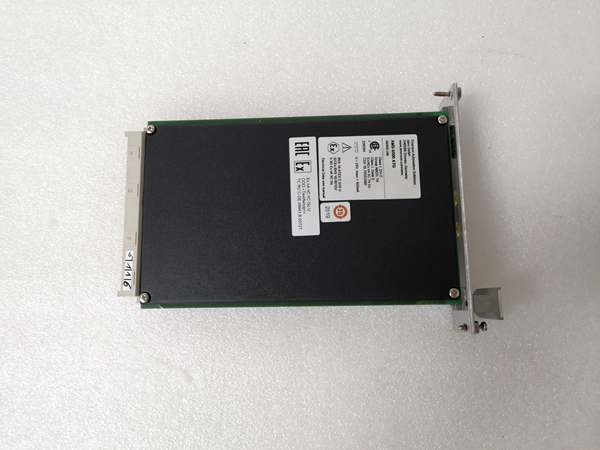

EMERSON A6500-UM
Replacement Pitfall Guide
❗ Communication Dependency: The cannot communicate with host systems (DCS/SCADA) on its own. It requires the A6500-CC Communication Controller to convert internal RS-485 data to Modbus TCP/RTU or OPC UA. Always verify the A6500-CC is present and functional.
❗ Sensor Configuration: This is a universal card, but it must be configured in software for the specific sensor type attached (e.g., Eddy Current vs. ICP Accelerometer). Incorrect sensor configuration will result in invalid readings or sensor power issues.
❗ Digital I/O Isolation: The 6 digital outputs are electrically isolated from the system power and share a common ground. Verify your external relay/PLC wiring matches this isolation scheme to prevent ground loops or signal damage.
❗ Protection vs. Prediction: While capable of protection (alarm relays), the is often used for online prediction (waveform/spectrum data). If your application requires API 670 TMR (Triple Modular Redundancy) for critical shutdown, verify if a dedicated protection card (like the A6250) is required by your safety integrity level (SIL) assessment.
❗ Firmware Matching: Ensure the firmware version is compatible with your A6500-CC and AMS Machinery Manager software. Mismatched firmware can cause communication timeouts or data corruption.
Compatibility Matrix & Benchmarks
- → A6500-CC : Required – Communication Controller for Ethernet/Modbus connectivity
- → A6500-SR : Required – System Rack for power and backplane connectivity
- → A6500-PS : Required – Power Supply Module for rack power
- → A6210 / A6220 : Alternative – Use A6210/A6220 for dedicated Thrust/Eccentricity protection if specific API 670 voting logic is needed.
Benchmarks:
- Data Resolution: Up to 12,800 Lines of Resolution (LOR)
- High-Freq Detection: PeakVue™ Waveform and Value for early bearing/gear fault detection
- Channel Scan: Simultaneous sampling across all channels
