Product Core Brief
- Model: 51304441-275 MC-TDID52
- Brand: HONEYWELL
- Series: Industrial Automation / DCS
- Core Function: Monitors 32 digital on/off signals with high noise immunity for centralized industrial control.
- Product Type: Digital Input Module / FTA Board
- Key Specs: 32 Channels | 24 VDC | Screw Terminals
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL 51304441-275 MC- serves as a high-performance digital input module designed for complex industrial environments. It acquires digital on/off signals from multiple field devices and transmits the data to the central control system.
This module features high noise immunity to reliably suppress external electromagnetic interference. It operates on a 24 VDC supply and uses fixed screw terminals for secure and reliable field wiring. Front-panel LED indicators allow operators to intuitively view channel status for quick fault diagnosis. Verify with OEM datasheet for exact logic thresholds, though standard field configurations provide excellent stability.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 32 Digital Inputs |
| Nominal Voltage | 24 VDC |
| Logic Low | 0-5 V |
| Logic High | 11-30 V |
| Mounting Type | DIN Rail |
| Wiring Method | Fixed Screw Terminals |
| Operating Temp | -40°C to +85°C |
| Dimensions | 160mm (H) x 100mm (W) x 60mm (D) |
| Diagnostics | LED Status Indicators |
| Interference | High Noise Immunity |

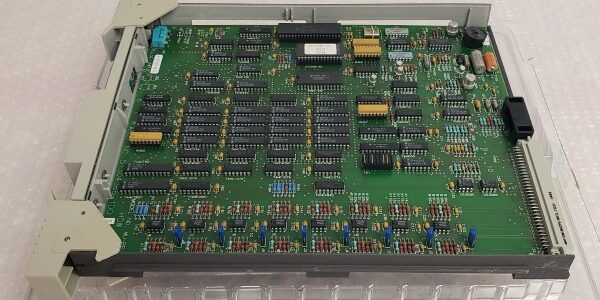

Honeywell 51304386-100
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
Honeywell 51304386-100
Compatibility Matrix & Benchmarks
- HONEYWELL 51304441-275 MC- → HONEYWELL 51304441-275 MC- : Direct — Identical replacement
- HONEYWELL 51304441-275 MC- → HONEYWELL 51304441-175 MC-TDID12 : Needs Adaptation — Verify voltage ratings and channel count
- HONEYWELL 51304441-275 MC- → HONEYWELL CC-PDIS01 : Incompatible — Different platform (C300 vs DCS FTA)
- HONEYWELL 51304441-275 MC- → HONEYWELL SDO-0824 : Incompatible — Digital output vs digital input
- Signal Acquisition: < 10 ms (Standard scan cycle)
- Diagnostic Response: < 50 ms (LED & Bus fault update)
