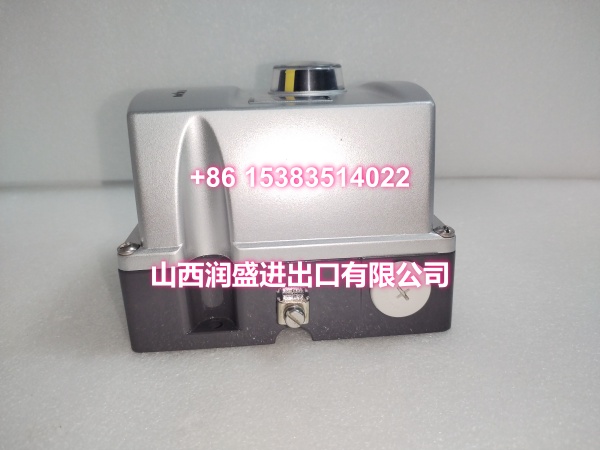

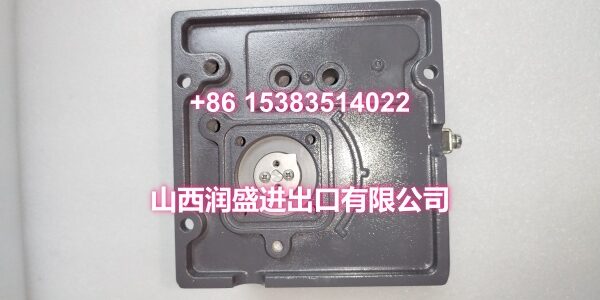

Product Core Brief
- Model: ND9103HN7/K06
- Brand: METSO (Valmet / Neles)
- Series: ND9000 Smart Valve Controller Line
- Core Function: Digitally controls pneumatic actuators using HART 7 communication for precise process modulation.
- Product Type: Smart Electrical Valve Positioner
- Key Specs: HART 7 Protocol | 32-bit ARM Processor | IP66 / SIL 2 Rated
- Condition: New Surplus / Original Packaging
Key Technical Specifications
- Manufacturer: METSO Automation (Valmet)
- Country of Origin: Finland
- Model Family: ND9000 Series (ND9103 Base)
- Communication Protocol: HART 7 (7 = HART version 7 in model code)
- Input Signal: 4–20 mA with HART 7 overlay
- Power Supply: Max 30 VDC (35 mA overcurrent protection)
- Air Supply Pressure: 1.4 to 8 bar
- Processor: 32-bit ARM RISC with 1MB Flash ROM
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP66 / NEMA 4X
- Safety Certification: SIL 2 Capable
Product Introduction (No Fluff)
Serving as the intelligent interface between control systems and final control elements, the METSO ND9103HN7/K06 executes precise pneumatic actuator positioning. Built on a 32-bit ARM RISC microprocessor, this smart positioner continuously monitors valve performance, automatically adapting to friction changes and supply pressure fluctuations to maintain exact setpoints.
Replacing a failing analog positioner with a verified METSO ND9103HN7/K06 unlocks advanced predictive maintenance capabilities. The unit’s built-in database continuously logs trends like static friction and air consumption, allowing maintenance teams to intervene before a catastrophic valve failure forces an unplanned plant shutdown.
QA & Testing SOP (Dynamic & Transparent)
Every METSO ND9103HN7/K06 leaving our facility undergoes a rigorous 4-point validation:
- HART Communication Handshake: Connected to a Trex or AMS communicator to verify successful HART 7 polling, parameter reading, and command execution.
- Pneumatic Response Test: Bench-tested with regulated air supply to verify the internal pilot valve and slide valve respond accurately to 4-20mA step changes without sticking.
- LUI Verification: Powered up to test the Local User Interface (LCD display and 4-button keypad), ensuring menu navigation, calibration modes, and diagnostic readouts function perfectly.
- Anti-Counterfeit & Packaging: Serial/lot verification against factory records, sealed in anti-static shielding bag with heavy-duty foam cradle to protect the glass LCD and pneumatic fittings.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Feedback Arm Geometry: The #1 cause of calibration failure. The mechanical linkage (feedback arm) must be perfectly aligned according to the VDI/VDE 3845 standard. If the arm is mounted at the wrong angle or the travel exceeds the sensor’s mechanical limits, the positioner will throw an E51/E52 ADC limit fault and refuse to calibrate. Always use the provided alignment jig.
❗ Air Supply Quality: Smart positioners have microscopic internal orifices. Moisture, oil, or pipe scale in the 1.4–8 bar supply line will clog the pilot stage, causing erratic valve hunting. Always install a high-quality coalescing filter/regulator directly upstream of the METSO ND9103HN7/K06.
❗ Grounding & Shielding: HART signals are highly susceptible to VFD-induced noise. Use properly shielded twisted-pair cable for the 4-20mA loop, and ground the shield at the control cabinet ONLY. Grounding at both the positioner and the cabinet creates a ground loop that corrupts HART communication.
❗ ESD Sensitivity: The 32-bit ARM processor is highly sensitive to static discharge. Always wear a grounded wrist strap when handling. Insert the module squarely into the backplane—never rock it side-to-side.
Replacement SOP:
- Pre-Install: Isolate and vent air supply, lockout/tagout electrical supply. Document existing configuration via HART before removal.
- Removal: Disconnect air tubing and electrical connections; unbolt from actuator yoke.
- Install: Mount METSO ND9103HN7/K06, align feedback arm precisely, reconnect air and electrical lines.
- Power-on Test: Apply air and 4-20mA signal; run the Guided Start-up and AUTO calibration routine via the LUI keypad.
Technical FAQ
Q: Is the METSO ND9103HN7/K06 compatible with Valmet DNA or MaxDNA systems?
A: Yes. METSO Automation transitioned to Valmet, and the ND9103HN7/K06 is fully supported in both legacy METSO and current Valmet DNA/MaxDNA platforms via standard HART integration or proprietary fieldbus gateways. Always verify the suffix code to ensure it matches your specific fieldbus or safety requirements.
Q: Why is the price higher than generic valve positioners?
A: Generic positioners lack true adaptive control and onboard diagnostics. The METSO ND9103HN7/K06 features a 32-bit ARM processor, 5 adaptive control tuning modes, and continuous friction monitoring. In a critical process loop, that intelligence prevents valve stiction and optimizes air consumption. The ROI is measured in process stability and extended valve life.
Q: What is the warranty on new surplus stock?
A: Full 12-month functional warranty against manufacturing defects. We test every unit on a live pneumatic bench with HART communicators before shipping. If it fails communication or calibration tests, we replace it immediately. No restocking fees on DOA units.
Q: Can I hot-swap this positioner?
A: No. While the ND9000 series supports 1-point calibration on a running valve, physically removing or replacing the METSO ND9103HN7/K06 requires shutting down the air supply and electrical signal to prevent uncontrolled valve movement. Always follow the full isolation SOP.
Q: Is this module still supported by Valmet/METSO?
A: The METSO ND9103HN7/K06 remains in active support for existing installations. Valmet maintains long-term availability for core ND9000 series positioners. However, always verify the full model number and suffix; minor updates may include improved firmware or updated pneumatic components. When in doubt, send us a photo of the module’s data plate for cross-reference.
