Product Core Brief
- Model: MVME61006E-0163R
- Brand: Motorola
- Series: MVME6100 Single Board Computers
- Core Function: High-bandwidth embedded processing for VMEbus systems
- Product Type: VMEbus Single Board Computer (SBC)
- Key Specs: 1.267GHz MPC7457 | 2GB DDR ECC | 320MB/s 2eSST
- Condition: New Original / New Surplus
Product Introduction

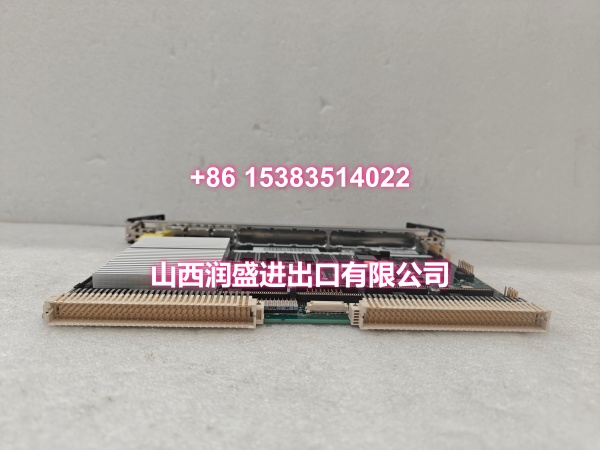

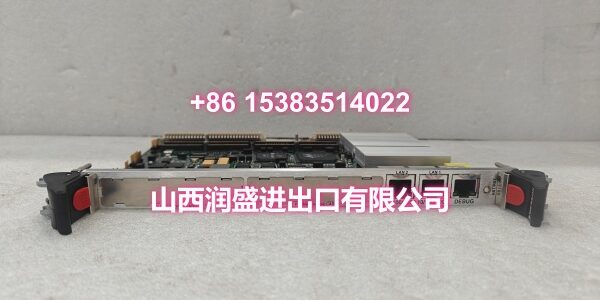

The Motorola MVME61006E-0163R is a high-performance VMEbus SBC. It utilizes a 1.267GHz MPC7457 PowerPC processor and 2GB DDR ECC memory for demanding industrial applications.
This industrial automation unit supports 2eSST protocols, achieving 320MB/s transfer rates. It includes dual Gigabit Ethernet and two PMC-X sites for flexible expansion.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor | MPC7457 PowerPC |
| Clock Speed | 1.267GHz |
| System Memory | 2GB DDR ECC |
| Flash Memory | 128MB |
| VMEbus Protocol | 2eSST (320MB/s) |
| Network Interfaces | Dual Gigabit Ethernet |
| Expansion Slots | Two PMC-X Sites |
| Coprocessor | 128-bit AltiVec |
| Supported OS | VxWorks, Linux |
| Target Application | Medical Imaging, Industrial Automation |
Quality Control Process
We inspect every replacement module thoroughly. First, we verify the 1.267GHz MPC7457 boots and runs diagnostics. Next, we stress-test the 2GB DDR ECC memory for bit errors. We validate the 128MB flash integrity and check the 2eSST bus timing on a live VME backplane. Dual Gigabit Ethernet ports undergo throughput testing. Finally, we pack the SBC in anti-static shielding.
Replacement Pitfall Guide
❗ Verify 2eSST Backplane Compatibility. This SBC requires a VME backplane that supports 2eSST signaling. Older backplanes may drop the bus speed to standard VME rates. Check your chassis specs first.
❗ Check PMC-X Module Heights. The two PMC-X sites accept 33/66/100 MHz modules. Ensure your daughter cards match the mechanical height and I/O pinout of the MVME6100 series.
❗ P2 I/O Mode Jumpers. The P2 connector supports both PMC and IPMC modes. Misconfigured jumpers here will disable rear I/O or legacy MVME761 modules. Consult the manual before applying power.
❗ AltiVec Code Dependencies. The 128-bit AltiVec coprocessor is powerful but requires specific compiler flags. If migrating from an older SBC, verify your application binaries are compiled for this architecture.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level (Direct/Needs Adaptation) | Migration Notes |
|---|---|---|---|
| MVME61006E-0163 | Direct | ‘R’ suffix typically indicates RoHS compliance | |
| MVME6100 Series | Direct | Verify memory size and flash configuration | |
| MVME5500 Series | Needs Adaptation | Requires BSP changes and potential chassis mods |
- VMEbus Throughput: 320MB/s sustained bandwidth via 2eSST protocol
- Processing Power: 1.267GHz MPC7457 with 128-bit AltiVec for vector processing
