Product Core Brief

• Model: CC-PDOD51
• Brand: Honeywell
• Series: Experion PKS / C-Series
• Core Function: Provides 1-channel digital switching output for driving relays, solenoids, and indicators.
• Product Type: Digital Output (DO) Module
• Key Specs: 1 Channel | 24 VDC @ 0.5 A | FAILOPT Configurable
• Condition: New Original (New Surplus)

Product Introduction

The is a single-channel digital output module designed for the Experion PKS C-Series architecture. It serves as the final control interface for discrete field devices, converting logic commands into reliable 24 VDC switching signals.

Unlike standard DO cards, the features advanced FAILOPT (Fail-Operational) safety configuration. This allows engineers to define the exact safe state (e.g., HOLD LAST VALUE or SHED TO SAFE) for each channel independently during communication loss or controller failure, ensuring deterministic process safety without unnecessary plant trips.

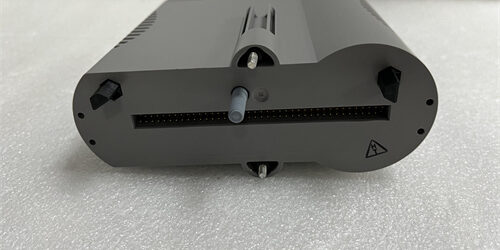

Honeywell CC-PDOD51

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

We don’t just box these and ship them. Here is our actual bench test workflow.

1. Incoming Verification: We verify the serial number against Honeywell’s traceability records. A visual inspection checks for bent pins on the C-Bus connector and ensures the DIN rail clip isn’t cracked.
2. Live Functional Test: We mount the unit in a live C300 test rack. We force the output ON/OFF and verify the 24 VDC switching at the terminals using a Fluke 115 multimeter and oscilloscope.
3. Electrical Parameter Test: We perform a 500 V Megger test between the field output terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
4. FAILOPT Verification: We simulate a controller communication loss and confirm the channel executes the configured fail-safe action (Hold or Safe) within the specified cycle time.
5. Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.

Replacement Pitfall Guide

Field replacements on safety systems are unforgiving. Watch out for these traps.

1. Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing CPU. The Experion controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
2. FAILOPT Configuration: This module supports per-channel fail-safe states. If you pull the old card and the new one defaults to “Safe Value” while your logic expects “Hold Last,” you may cause an unintended process shutdown. Verify the FAILOPT parameter in the controller configuration.
3. Terminal / Cable Incompatibility: Inspect the field wiring before plugging in the new card. A shorted solenoid or grounded cable will immediately trip the CC-‘s internal overcurrent protection, locking out the channel.
4. Power Supply Mismatch: Verify your external 24 VDC field power supply has at least 20% headroom. Inductive loads (relays/solenoids) can cause inrush currents that exceed the 0.5 A rating if not properly suppressed.
5. ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.

Keep these in mind and you’ll cut 90% of rework time.

Honeywell CC-PDOD51

Compatibility Matrix & Benchmarks

Compatibility

• Honeywell CC- Rev A → CC- Rev B : Direct Replacement — Verify firmware compatibility with CPU.
• Honeywell CC-TDOD51 → CC- : Direct Replacement — Verify backplane termination requirements (CC-TDOD51 is the termination base).

Benchmarks

• Switching Response: < 5 ms (from CPU command to terminal state change)
• Overcurrent Protection: < 5 ms (trip time at >0.6 A)

Need the FAILOPT configuration guide for the ? I can pull up the parameter setup steps so you can define the correct fail-safe state before installation.
