Component Snapshot At-a-Glance

• Model: MVAJ23T1GB0774B
• Alt. P/N: MVAJ23L1GB0774B (standard low-burden coil, no built-in RC surge suppression); MVAJ23B1GB0774B (standard high-burden coil, no transient immunity); MVAJ21 (integrated economiser resistance, not instant coil cut-off)
• Product Series: MVAJ Midos electromechanical high-security trip relay family, unified rack base footprint matching MCGG/MVAX/MVTT/MCTI protection relays

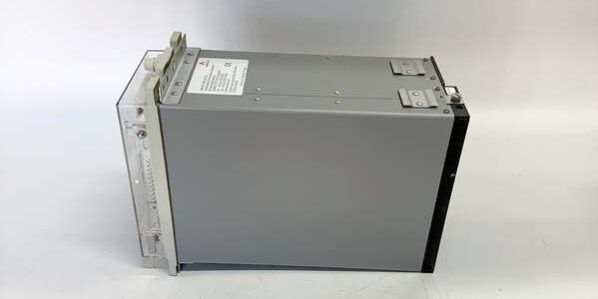

• Hardware Type: Full withdrawable plug-in attracted armature trip relay, grey aluminum industrial Midos chassis, transparent front inspection window without mechanical trip flag
• Key Feature: T-series factory integrated RC snubber anti-transient 110/125VDC coil, instant full coil cut-off after armature operation (zero sustained DC load), electrical self-reset design, multi-stack magnetic blowout heavy-duty changeover contacts
• Primary Field Use: Amplify weak main protection contact signals to drive multiple circuit breaker trip coils simultaneously; instant coil cut-off eliminates continuous DC battery drain post-operation; T coil variant suppresses stray capacitance leakage pulses on long-distance remote trip wiring (>100m) to prevent false nuisance pickup

Hard-Numbers: Technical Specifications

• Protocol Support: Pure electromechanical hardware, no digital bus communication; volt-free heavy-duty trip/alarm changeover contact outputs
• Port Count: Main DC coil supply terminals, multi-pole independent contact terminal stacks for multi-breaker trip, local cabinet alarm and remote SCADA fault indication
• Baud/Data Rate: No serial data transmission
• Operating Temperature: -10°C to +55°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 2000Vrms dielectric withstand between coil winding and contact wiring
• Power Draw: T anti-transient high initial pickup burden (capacitance immunity), built-in break contact cuts coil power completely after full armature pull-in, zero steady-state holding wattage
• Nominal Coil Voltage: 110/125 VDC station control battery, reliable pickup at 65% rated voltage, passes 10μF capacitance discharge anti-nuisance test
• Cut-off Characteristic: Instantaneous coil break contact on main contact stack; coil circuit fully opened once mechanical contact switching completes
• Reset Method: Electrical self-reset; all contacts return to normal state once fault input drive power is removed
• Operate Speed: ≤10ms full armature pull-in at rated DC voltage
• Contact Continuous Rating: 5A @300VDC resistive load; 40W DC inductive breaking capacity with integrated magnetic blowout plates
• 3s Fault Make/Carry Rating: 30A peak transient trip coil switching capacity for multi-breaker parallel trip circuits
• Mechanical Endurance: Minimum 10,000 loaded fault switching cycles
• Physical Weight: 0.43kg fully assembled Midos draw-out unit

The Real-World Problem It Solves

Standard MVAJ23L/B coils lack internal RC transient suppression; long remote trip cables accumulate distributed stray capacitance, leakage pulses falsely energize the relay and trigger unplanned multi-breaker tripping during normal substation switching transients.MVAJ21 economiser variants retain residual coil load after operation; simultaneous energized trip relays spike DC bus load, sag station battery voltage and disable critical backup protection logic during extended fault maintenance hold periods.External discrete RC snubber suppressors and load-limiting resistors occupy extra rack slots and introduce vibration-prone wiring splices that open after years of plant thermal cycling.Mechanical latch MVAJ53/MVAJ27 variants retain fault status after power loss, unsuitable for auto-reset multi-breaker coordinated trip schemes that require automatic contact reset once fault clears.Where you’ll typically find it:

• Fossil power plant generator, main transformer multi-breaker simultaneous remote trip protection panels with >100m control cable runs
• Refinery MV large compressor and multi-outlet busbar feeder breaker trip amplification schemes
• Urban distribution primary substation ring bus multi-feeder remote trip control cabinets prone to capacitance leakage transientsThis single draw-out T-coil trip relay combines factory built-in RC transient suppression and instantaneous full coil cut-off circuit, eliminating external surge/timing hardware and nuisance pickup from long trip wiring, while cutting sustained DC battery load to zero immediately after trip actuation.

Hardware Architecture & Under-the-Hood Logic

This unit uses a hinged armature electromagnetic coil with built-in coil RC absorption network and dedicated instant break contact branch, no onboard microprocessor or signal sampling ICs. It shares standardized Midos rack mechanical design with all ALSTOM Midos protection hardware for unified cabinet layout.

1. Weak fault contact signal from main protection relay energizes the T-series anti-surge main coil; integrated RC snubber clamps stray capacitance leakage pulses on long trip cables to prevent false armature pull-in. Magnetic flux pulls armature closed and switches all multi-stack trip/alarm contacts simultaneously.
2. Normally closed break contact on the main contact stack opens instantly after full armature pull-in, fully disconnecting the main coil winding from DC supply – zero sustained power draw after operation, no continuous battery drain.
3. Silver alloy contact tips paired with magnetic blowout plates extinguish DC inductive arcs from multiple parallel breaker trip coils, preventing permanent contact welding during repeated heavy fault switching cycles.
4. Self-reset spring tension returns all contacts to normal state the instant fault coil drive power drops to zero; no manual front-panel flag reset required.
5. Front panel transparent window allows direct visual inspection of armature and contact stack without full terminal disconnection during routine maintenance checks.
6. Rear Midos rack terminal base pre-fitted with factory CT short-circuit jumpers; full chassis withdrawal possible without disconnecting CT secondary wiring to eliminate lethal open CT kilovolt surge hazards during maintenance outages.

Field Service Pitfalls: What Rookies Get Wrong

Swapping MVAJ23L Standard Low-Burden Coil Variant For MVAJ23T Transient-Suppression Unit

New technicians install MVAJ23L spare stock without matching T suffix. Long remote trip wiring stray capacitance generates leakage pulses, relay falsely energizes and trips multiple breakers during normal switching transients, causing wide plant outages.Field Rule: MVAJ23T mandatory for all trip circuits with cable length >100m; segregate T and L/B coil MVAJ23 spares in clearly labeled locked storage bins.

Skipping CT Short Jumper Installation Before Withdrawing Draw-out Relay

Apprentices pull relay chassis straight out without shorting CT terminals on the rack base. Open CT secondary windings generate kilovolt surge that damages upstream MCGG overcurrent relay sampling boards and creates cabinet electric shock hazard for field technicians.Quick Fix: Always install factory CT short-circuit jumpers on the Midos base terminal strip before removing any draw-out MVAJ trip relay unit.

Adding External RC Surge Suppressors Across T Coil Terminals

Field crews wire external RC snubbers in parallel with T coil terminals. Over-damping slows armature operate speed, critical fast multi-breaker simultaneous trip coordination timing is broken, breakers suffer delayed clearing times during severe short-circuit faults.Field Rule: MVAJ23T contains factory integrated transient suppression; no external surge components shall be wired to coil terminals.

Deploying MVAJ23T On Circuits Requiring Permanent Mechanical Fault Latching

Techs use self-reset MVAJ23T for transformer lockout schemes that require visible latched fault indication. Once fault drive power drops, all contacts reset automatically; operators lose permanent local fault flag without dedicated mechanical latch relays like MVAJ53/MVAJ27.Field Rule: MVAJ23T only suited for self-resetting multi-breaker trip amplification circuits; select MVAJ53 hand-reset latching variants for lockout schemes requiring persistent fault visual indication.

Confusing MVAJ23 Instant Cut-off With MVAJ21 Economiser Circuit

Maintenance crews replace with MVAJ21T economiser relays. MVAJ21 retains residual coil load post-operation; dense multi-relay panels suffer severe DC bus sag during simultaneous fault hold periods.Field Rule: MVAJ23 series features full instant coil cut-off for zero post-operate burden; MVAJ21 only partial load reduction, cannot be cross-replaced for high-density DC battery panels.
