Component Snapshot At-a-Glance

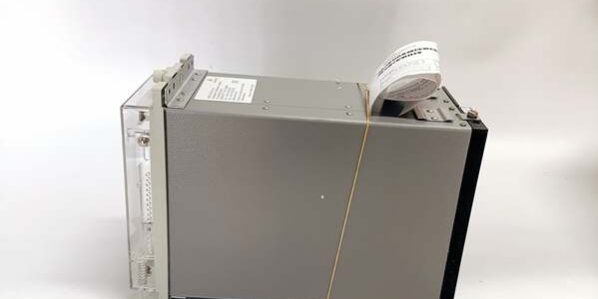

• Model: MVAJ21T1GB0771B
• Alt. P/N: MVAJ21L1GB0771B (standard low-burden coil, no built-in surge suppression); MVAJ21B1GB0771B (medium-burden coil, high continuous DC draw); MVAJ53 (mechanical latch, no economiser circuit)
• Product Series: MVAJ Midos electromechanical trip/amplifier relay family, shared rack base footprint with MCGG/MVAX/MVTT/MCTI protection relays
• Hardware Type: Full withdrawable plug-in attracted armature trip relay, blue aluminum industrial Midos chassis, transparent front inspection window without mechanical trip flag
• Key Feature: T-series factory integrated RC snubber anti-transient 110/125VDC coil, internal economising resistance load reduction circuit, electrical self-reset design, multi-stack magnetic blowout heavy-duty changeover contacts
• Primary Field Use: Amplify weak protection relay contact signals to drive breaker trip coils; built-in economiser cuts steady-state DC drain post-operation; T coil variant eliminates false pickup induced by stray capacitance leakage on long remote trip wiring (>100m cable runs).

Hard-Numbers: Technical Specifications

• Protocol Support: Pure electromechanical hardware, no digital bus communication; volt-free heavy-duty trip/alarm changeover contact outputs
• Port Count: Main DC coil supply terminals, multi-pole independent contact terminal stacks for breaker trip, local cabinet alarm and remote SCADA fault indication
• Baud/Data Rate: No serial data transmission
• Operating Temperature: -10°C to +55°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 2000Vrms dielectric withstand between coil winding and contact wiring
• Power Draw: T anti-transient coil, high initial pickup burden for capacitance immunity, internal economiser reduces steady-state holding wattage by 70% after armature pull-in
• Nominal Coil Voltage: 110/125 VDC station control battery, reliable pickup at 70% rated voltage, immune to short-duration stray leakage voltage transients
• Economiser Function: Auxiliary contact inserts series resistance instantly after armature closes to limit continuous DC load
• Reset Method: Electrical self-reset; all contacts return to normal state once coil drive power is removed
• Operate Speed: ≤10ms full armature pull-in at rated DC voltage
• Contact Continuous Rating: 5A @300VDC resistive load; 40W DC inductive breaking capacity with integrated magnetic blowout plates
• 3s Fault Make/Carry Rating: 30A peak transient trip coil switching capacity
• Mechanical Endurance: Minimum 10,000 loaded fault switching cycles
• Physical Weight: 0.42kg fully assembled draw-out unit

The Real-World Problem It Solves

Standard MVAJ21L low-burden coils lack internal surge suppression; long-distance trip cables accumulate distributed stray capacitance, leakage pulses falsely energize the relay and trigger unplanned breaker trips during normal substation switching transients.Non-economiser trip relays draw full coil wattage continuously when held energized for extended fault lockout maintenance periods; simultaneous energized relays spike DC bus load, sag station battery voltage and disable critical backup protection logic.External discrete RC snubber suppressors and economiser resistors occupy extra rack slots and introduce vibration-prone wiring splices that open after years of plant thermal cycling.Mechanical latch MVAJ53 variants retain fault status after power loss, unsuitable for auto-reset remote trip coordination schemes that require automatic contact reset once fault clears.Where you’ll typically find it:

• Fossil power plant generator, main transformer long-distance remote trip protection panels
• Refinery MV compressor and long overhead feeder breaker trip amplification schemes with >100m control cable runs
• Urban distribution primary substation ring bus remote feeder trip control cabinets prone to capacitance leakage transientsThis single draw-out T-coil trip relay combines factory built-in RC transient suppression and integrated economiser load reduction circuit, eliminating external surge/timing hardware and nuisance pickup from long trip wiring, while minimizing sustained DC battery drain during extended fault hold periods.

Hardware Architecture & Under-the-Hood Logic

This unit uses a hinged armature electromagnetic coil with built-in coil RC absorption network and dedicated internal economiser resistance branch, no onboard microprocessor or signal sampling ICs. It shares standardized Midos rack mechanical design with all ALSTOM Midos protection hardware for unified cabinet layout.

1. Weak fault contact signal from main protection relay energizes the T-series anti-surge main coil; integrated RC snubber clamps stray capacitance leakage pulses on long trip cables to prevent false armature pull-in. Magnetic flux pulls armature closed and switches all multi-stack trip/alarm contacts simultaneously.
2. Auxiliary contact on the main contact stack closes immediately after pull-in, inserting factory series economiser resistance in-line with the main coil winding to drastically cut steady-state DC power draw during sustained energization.
3. Silver alloy contact tips paired with magnetic blowout plates extinguish DC inductive arcs from breaker trip coils, preventing permanent contact welding during repeated heavy fault switching cycles.
4. Self-reset spring tension returns all contacts to normal state the instant fault coil drive power drops to zero; no manual front-panel flag reset required.
5. Front panel transparent window allows direct visual inspection of armature and contact stack without full terminal disconnection during routine maintenance checks.
6. Rear Midos rack terminal base pre-fitted with factory CT short-circuit jumpers; full chassis withdrawal possible without disconnecting CT secondary wiring to eliminate lethal open CT kilovolt surge hazards during maintenance outages.

Field Service Pitfalls: What Rookies Get Wrong

Swapping MVAJ21L Standard Low-Burden Coil Variant For MVAJ21T Transient-Suppression Unit

New technicians install MVAJ21L spare stock without matching T suffix. Long remote trip wiring stray capacitance generates leakage pulses, relay falsely energizes and latches breakers during normal switching transients, causing unplanned feeder outages.Field Rule: MVAJ21T mandatory for all trip circuits with cable length >100m; segregate T and L/B coil MVAJ21 spares in clearly labeled locked storage bins.

Skipping CT Short Jumper Installation Before Withdrawing Draw-out Relay

Apprentices pull relay chassis straight out without shorting CT terminals on the rack base. Open CT secondary windings generate kilovolt surge that damages upstream MCGG overcurrent relay sampling boards and creates cabinet electric shock hazard for field technicians.Quick Fix: Always install factory CT short-circuit jumpers on the Midos base terminal strip before removing any draw-out MVAJ trip relay unit.

Bypassing Internal Economiser Circuit With External Jumpers

Maintenance crews jumper across the built-in economiser resistance to eliminate minor coil voltage drop. The relay draws full unregulated DC load continuously during fault hold periods, draining station battery and triggering low DC supply alarms in SCADA.Field Rule: Never bypass the internal economiser contact/resistance branch; the load reduction circuit is mandatory for all long-run remote trip wiring schemes.

Adding External RC Surge Suppressors Across T Coil Terminals

Field crews wire external RC snubbers in parallel with T coil terminals. Over-damping slows armature operate speed, critical fast fault trip coordination timing is broken, breakers suffer delayed clearing times during severe short-circuit faults.Field Rule: MVAJ21T contains factory integrated transient suppression; no external surge components shall be wired to coil terminals.

Deploying MVAJ21T On Circuits Requiring Permanent Mechanical Fault Latching

Techs use self-reset MVAJ21T for transformer lockout schemes that require visible latched fault indication. Once fault drive power drops, all contacts reset automatically; operators lose permanent local fault flag without dedicated mechanical latch relays like MVAJ53.Field Rule: MVAJ21T only suited for self-resetting trip amplification circuits; select MVAJ53 hand-reset latching variants for lockout schemes requiring persistent fault visual indication.
