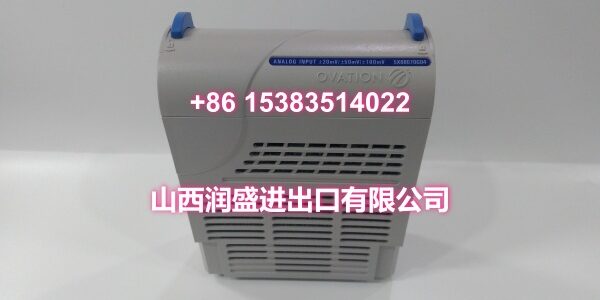

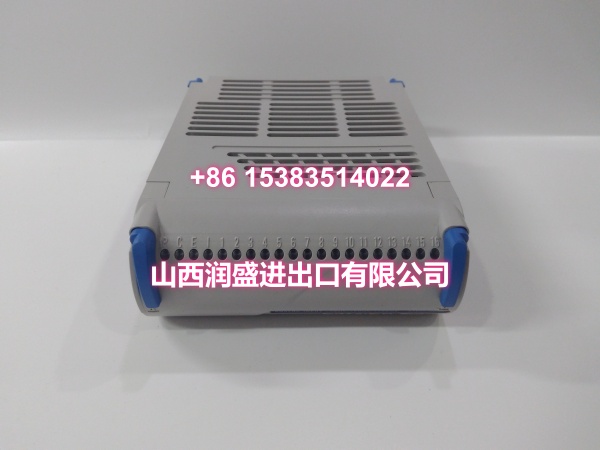

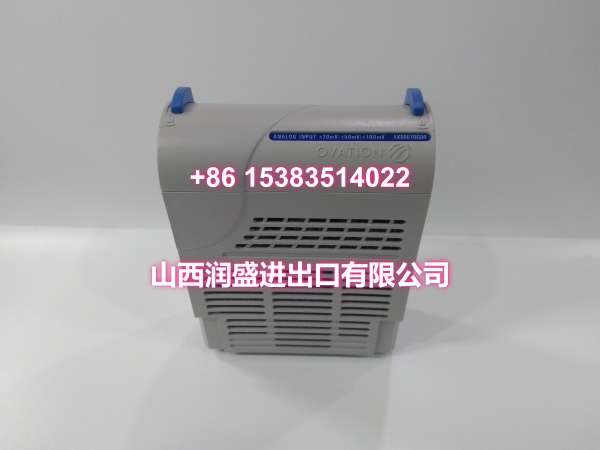

Product Core Brief

• Model: 5X00070G04
• Brand: WESTINGHOUSE / Emerson Ovation
• Series: Ovation DCS
• Core Function: Thermocouple analog input module for the Ovation DCS, acquiring temperature signals from field thermocouples and converting them into digital values for process control.
• Product Type: DCS Thermocouple / Analog Input Module
• Key Specs: Thermocouple input | typically 8 channels | ±20 mV to ±100 mV range family | rack-mounted electronic module
• Condition: New Surplus / Tested

Key Technical Specifications

• Part Number: 5X00070G04
• System Platform: Westinghouse / Emerson Ovation DCS
• Module Type: Thermocouple analog input electronic module
• Input Signal: Thermocouple / low-level mV analog input; listed as approximately +20 to +100 mV in some references, but exact range must be confirmed from the physical label.
• Channel Count: Typically 8 channels per module in Ovation TC input applications; confirm from label.
• Resolution: Typically 16-bit class ADC in Ovation analog input modules; verify per revision.
• Mounting: Ovation system rack / backplane slot
• Compatible System: Westinghouse / Emerson Ovation DCS I/O racks
• Origin: USA
• Condition: Surplus / Tested
• Note: Public documentation for 5X00070G04 is limited. Exact channel count, supported thermocouple types, mV range, cold-junction compensation method, and diagnostic features must be confirmed from the physical module label before installation.



Product Introduction (No Fluff)

The 5X00070G04 is a thermocouple input module for the Westinghouse / Emerson Ovation distributed control system. It acquires low-level millivolt signals from field thermocouples and converts them into digital temperature values for monitoring and control.

In Ovation systems, thermocouple input cards are often tied to critical temperature loops. A failed channel can force a loop into manual, degrade redundancy, or trigger nuisance alarms. A tested replacement with verified channel accuracy is therefore more valuable than an untested surplus unit.



QA & Testing SOP (Dynamic & Transparent)

Thermocouple input modules are validated channel-by-channel because a single open input, noisy channel, or drifted ADC can affect temperature readings without producing an obvious fault LED:

1. Label verification: Confirm 5X00070G04, revision, and any sub-designation. Ovation 5X-series part numbers can look similar across AI, AO, TC, and RTD modules.
2. Visual inspection: Check the housing, terminal connector, backplane edge connector, PCB, and LEDs for corrosion, rework, burn marks, or counterfeit indicators.
3. Connector inspection: Examine backplane pins and field terminal blocks for bent pins, oxidation, or loose contacts.
4. Bench power-up test: Install in a compatible Ovation test rack and verify clean initialization with no fault indicators.
5. Channel-by-channel mV injection test: Apply calibrated mV signals to each input and confirm correct digital reading, polarity, linearity, and open-thermocouple detection if supported.
6. ESD-safe packaging: After testing, seal the unit in anti-static shielding with moisture barrier protection for shipment.



Installation Pitfalls & Guide (Engineer to Engineer)

❗ Confirm it is a thermocouple input module. 5X00070G04 is listed as an Ovation thermocouple / low-level mV input module, not a generic 4-20 mA AI card or an AO card. Do not substitute it with a different Ovation AI module without verifying configuration compatibility.

❗ Match thermocouple type and range. If the original loop is configured for Type K and the replacement expects a different mV range or type, temperature readings will be offset. Verify software configuration and any module-level settings.

❗ Check cold-junction compensation. TC accuracy depends on proper CJC. A damaged CJC sensor, poor terminal contact, or local heat source can cause systematic temperature errors even when the module hardware is functional.

❗ Use correct thermocouple extension wire. Copper wire, reversed polarity, or poor terminations can introduce measurement errors that look like module faults.

Replacement steps:

1. Pre-install: Photograph the existing label, record slot position, channel assignments, thermocouple type, and loop configuration.
2. Removal: Place affected loops in manual mode if possible, then isolate or power down the rack per site procedure, release the module, and withdraw it straight from the slot.
3. Install: Inspect the backplane connector, align the new module, seat it firmly, and reconnect field wiring with correct polarity.
4. Power-on test: Restore power, verify LED status, and confirm each channel reads correctly against a known reference or calibrated simulator.



Technical FAQ

What is the 5X00070G04? It is a Westinghouse / Emerson Ovation-series thermocouple analog input module used to acquire temperature signals from field thermocouples.

What signal range does it support? It is listed as a thermocouple / low-level mV input module, with some references indicating approximately +20 to +100 mV. The exact range and supported thermocouple types should be confirmed from the physical label.

Can I replace it with another Ovation AI module? Not automatically. Ovation thermocouple, RTD, mA, and voltage input modules are not universally interchangeable. The replacement must match the original function, slot assignment, and configuration.

Is this module still available from the OEM? The Ovation platform is still supported by Emerson, but individual legacy modules may have limited new stock. Surplus and tested units are commonly used for maintenance.

What warranty applies to surplus units? Warranty terms vary by supplier. Some industrial surplus suppliers offer up to 2 years on tested parts, while others provide 12 months. Confirm exact terms before purchasing.
