Product Core Brief
- Model: 500MBA01 (1MRB150003R0002 / 1MRB200053/L)
- Brand: ABB
- Series: ABB AC 500 Series PLC Platform
- Core Function: Main processor module serving as the central CPU for ABB AC 500 programmable logic controllers.
- Product Type: PLC Main Processor Module / Industrial CPU Controller
- Key Specs: 24VDC Power Supply (±20%) | Backplane Bus Interface | Ethernet & Serial Communication | -25°C to +60°C Operating Range
- Note: Condition: New Original (New Surplus).
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 1MRB150003R0002 / 1MRB200053/L |
| Device Model | 500MBA01 |
| Functional Type | Main Processor Module (CPU) |
| Parent System | ABB AC 500 Series PLC |
| Power Supply | 24 VDC (±20%), typical consumption ≤10 W |
| Communication Interfaces | Ethernet (RJ45), Serial (RS-485/DB9) |
| Backplane Interface | AC 500 system rack bus for I/O module communication |
| Expansion Interface | Connects to I/O and communication modules (e.g., 500TAPxx series) |
| Mounting Method | 35 mm DIN rail mounting (vertical/horizontal) |
| Operating Temperature | -25°C to +60°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Isolation | Electrical isolation between power supply and signal interfaces |
| Hot-Swap Support | Yes (requires system parameter configuration) |
| Condition | New Original (New Surplus) |
Product Introduction

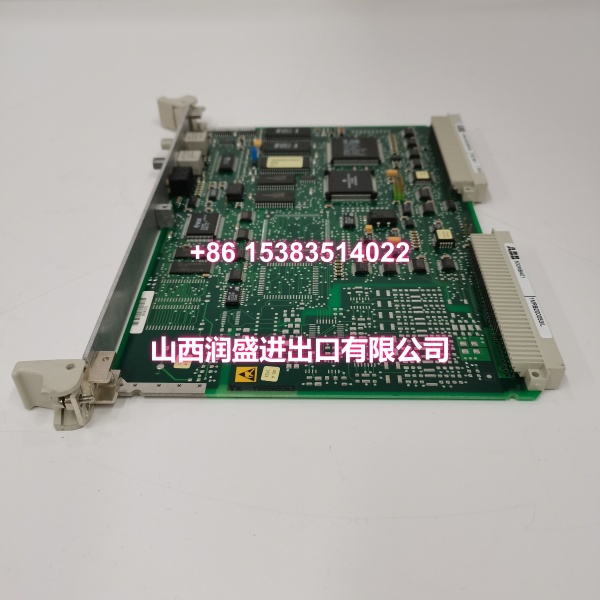

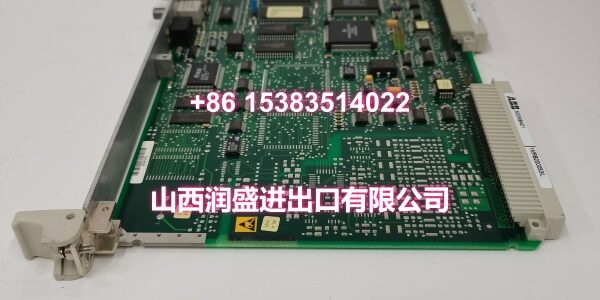

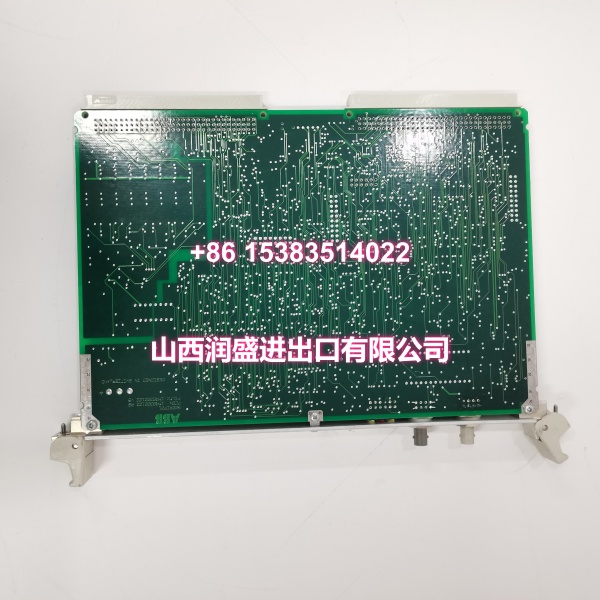

The ABB 500MBA01 (order codes 1MRB150003R0002 / 1MRB200053/L) is the main processor module for the ABB AC 500 series PLC platform. It serves as the central CPU, executing control logic programs, coordinating I/O modules across the backplane bus, and managing communication with external devices over Ethernet and serial interfaces.
Designed for continuous-operation environments, this module handles process control tasks in petrochemical processing, power generation, manufacturing automation, and water treatment applications. The 24VDC power supply with ±20% tolerance and electrical isolation between power and signal interfaces provides strong immunity against industrial electromagnetic interference. Hot-swap capability—when properly configured in system parameters—allows module replacement without a full rack power-down, reducing unplanned downtime during maintenance windows.
QA & Testing SOP
Every unit goes through a structured verification process before shipment:
- Visual Inspection: Check for burnt components, swollen capacitors, corrosion on the backplane connector pins, and physical damage to the front-panel Ethernet (RJ45) and serial (DB9/terminal block) ports.
- Backplane Connector Verification: Inspect the DIN 41612-style backplane connector for bent or pushed-out pins. A poor backplane connection is the most common cause of intermittent CPU faults and boot failures.
- Cold-Boot Test: Power the module on a test rack and verify it completes a full boot sequence without errors. Check that status LEDs progress through the expected startup pattern and settle into normal RUN mode.
- Firmware & Memory Check: Where test infrastructure allows, verify the module responds to ABB Automation Builder or Control Builder connections and that firmware is accessible. Confirm memory integrity by reading back a test program.
- Communication Port Verification: Test the Ethernet port for link negotiation and the serial port for physical integrity. Confirm the module can establish communication with a test master device.
- Anti-Counterfeit & Packaging: Verify authenticity markings on the PCB and label. Each unit is shipped in anti-static packaging with desiccant to prevent moisture damage during transit.
Installation Pitfalls & Guide
Replacing a main processor module is a critical operation. A few mistakes here can take the entire PLC rack offline:
❗ Firmware Version Mismatch: The new CPU may ship with different firmware than the original. If your control program was compiled for a specific firmware revision, a version mismatch can cause download failures or runtime errors. Document the original firmware version before removal and verify compatibility after installation.
❗ Hot-Swap Configuration Required: While the 500MBA01 supports hot-swapping, this feature must be explicitly enabled in the system parameters. Attempting a hot-swap on an unconfigured rack will cause an immediate CPU fault and process shutdown. If you are unsure of the configuration, power down the rack before replacement.
❗ Program Download Required: Unlike some I/O modules that inherit configuration from the backplane, a replacement CPU may not retain the original control program. Ensure you have a current backup of the control logic and are prepared to download it to the new module during commissioning.
❗ ESD Damage Risk: CPU modules are highly sensitive to electrostatic discharge. Always use a grounded wrist strap when handling the module, and never touch the backplane connector pins or exposed PCB traces.
4-Step Replacement Guide:
- Pre-install: Document the original firmware version, slot assignment, communication parameters, and hot-swap configuration status. Back up the current control program from the existing CPU if it is still accessible.
- Removal: If hot-swap is enabled and configured, follow the OEM procedure for online replacement. Otherwise, power down the rack. Use ejector levers to remove the old CPU module straight out, avoiding any tilting that could bend backplane pins.
- Install: Insert the new CPU firmly into the correct slot, ensuring the backplane connector seats fully. Secure the module with the retaining screws or latches.
- Power-on Test: Power up the rack (or re-enable the slot if hot-swapping). Verify the CPU completes its boot sequence and status LEDs indicate normal RUN mode. Download the control program if required, and test communication with the HMI or SCADA system.
Technical FAQ
1. What systems is the 500MBA01 compatible with? The 500MBA01 is the main processor module for the ABB AC 500 series PLC platform. It installs into standard AC 500 system racks and communicates with I/O and communication modules (such as the 500TAPxx series) over the backplane bus.
2. What communication interfaces does this CPU provide? The module includes an Ethernet interface (RJ45) for connection to industrial switches or host computers, and a serial interface (RS-485/DB9 or terminal block) for connecting to serial devices such as sensors, drives, and legacy equipment.
3. Can I hot-swap this processor module? Yes, but only if hot-swap support has been explicitly configured in the system parameters. If the feature is not enabled, removing the CPU while powered will cause an immediate system shutdown. When in doubt, power down the rack before replacement.
4. Is this a direct replacement for a failed AC 500 CPU? Yes, with important caveats. The 500MBA01 is designed as a drop-in replacement for AC 500 racks. However, you must verify firmware compatibility and be prepared to download the control program to the new module. Install it in the same slot as the original to preserve the system configuration.
5. What’s the warranty on New Surplus vs. Refurbished? We supply this unit as New Original (New Surplus)—unused, original factory stock, typically still in its anti-static packaging. This comes with a standard 12-month warranty. Refurbished CPU modules carry significant risks including degraded processor performance, corrupted firmware from previous fault events, and undocumented operational history. Refurbished units typically come with 30-90 day limited warranties that don’t cover latent defects.
