Product Quick Summary

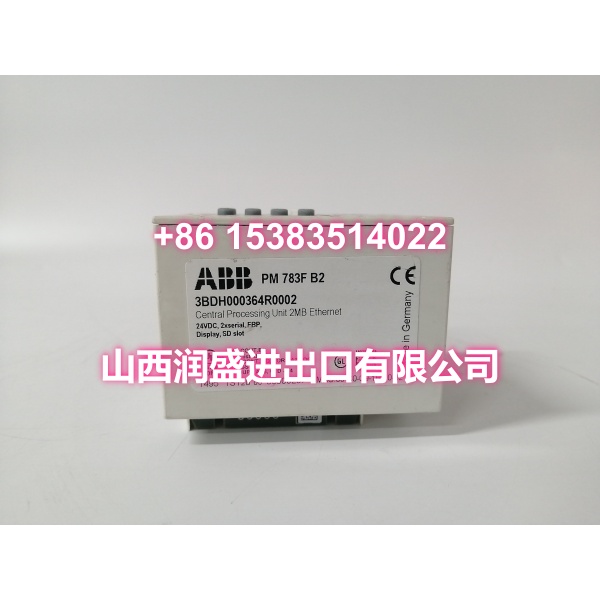

• Model: PM783F
• Part Number: 3BDH000364R0001
• Brand: ABB
• Core Function: Central processing unit for ABB Freelance / AC 800F distributed control systems
• Standout Specs: Integrated 10/100 Mbit/s Ethernet and dual serial ports; supports controller redundancy for high-availability process applications
• Condition: New Surplus / Refurbished (Legacy / Discontinued part)

Core Technical Specifications

Engineer’s Perspective

The ABB PM783F 3BDH000364R0001 is the central processing unit for ABB’s Freelance and AC 800F distributed control systems. If you’re maintaining a Freelance DCS installation in a power plant, chemical facility, water treatment site, or oil and gas operation, this is the kind of module you want on your spare parts shelf before a CPU failure takes a control station offline. It’s not a new-release product — it’s a legacy controller that’s been running process control loops in demanding environments for years, and finding a tested replacement quickly is critical when the processor goes down.

What makes the ABB PM783F 3BDH000364R0001 worth sourcing today is its role as the core of the Freelance station. When this processor fails, the entire control loop stops executing. The module handles real-time logic execution, data processing, and communication with fieldbus I/O and operator interfaces. It integrates 10/100 Mbit/s Ethernet for engineering and system access, dual serial ports for Modbus or diagnostic connections, and an FBP fieldbus port for local I/O communication. It also supports controller redundancy, which is essential in processes where downtime isn’t an option.

We’ve seen these units pulled from decommissioned Freelance systems and refurbished to full operational status. The key thing to watch is firmware and hardware revision compatibility — a mismatch between the replacement module and your existing station configuration can cause communication faults or prevent the processor from recognizing installed I/O modules. Always verify your current setup before swapping in a replacement.

Installation, Compatibility & Risk Avoidance

Before you install the ABB PM783F 3BDH000364R0001 into a live Freelance rack, there are a few common pitfalls that can cause headaches:

• Firmware and revision match: Check the firmware version on your existing processor and confirm the replacement matches. A version mismatch can prevent the module from syncing with the control network or recognizing the I/O configuration.
• Station address configuration: The PM783F uses software-based station addressing in the Freelance environment. Make sure the address matches your system documentation before powering up — a duplicate address on the network will cause communication collisions.
• Power budget check: The Freelance baseplate has a finite power budget. Verify the total load from all installed modules before inserting a replacement processor to avoid undervoltage trips.
• Redundancy sync: If your system runs in a redundant configuration, confirm the replacement module’s firmware matches the primary processor before attempting a synchronization. A firmware mismatch will prevent the redundant pair from syncing.
• Fieldbus termination: The FBP fieldbus port and serial connections need proper termination. A missing or incorrect termination resistor can cause intermittent communication failures that are hard to diagnose.

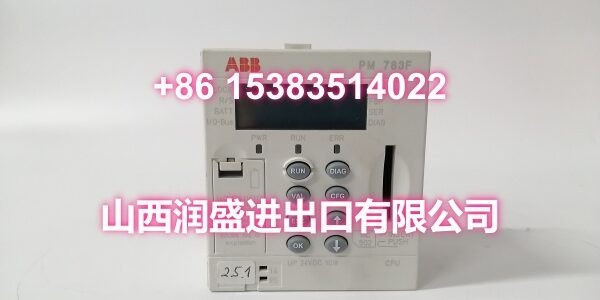

Field Note: Before swapping a processor in a live Freelance rack, always back up the current control program and note the LED status pattern on the old module. The RUN/ERR/DIAG LED sequence tells you whether the fault is a hardware failure or a software communication issue — saving you from replacing a module that just needs a firmware reload.

Our In-House Testing Process

Every ABB PM783F 3BDH000364R0001 unit goes through our internal inspection before it leaves our facility:

• Incoming visual inspection: Checking for physical damage, corrosion, bent pins, or signs of improper handling.
• Anti-counterfeit verification: Cross-referencing serial numbers, PCB markings, and manufacturing labels against known ABB specifications.
• Functional rack testing: Powering the module in a test chassis and verifying LED status indicators, boot sequence, and communication handshake on Ethernet, serial, and FBP ports.
• Electrical insulation testing: Ensuring no short circuits or degraded insulation on terminal connections.
• Static-proof packaging: Each unit is sealed in anti-static bags with protective foam before shipping.

Natural FAQ

Q: Can the ABB PM783F 3BDH000364R0001 replace an older PM783F version in my Freelance rack? A: In most cases, yes. The PM783F is designed as a direct replacement within the Freelance / AC 800F family. However, you need to verify the firmware version and hardware revision. If your existing system runs Freelance engineering software, the module is fully compatible. Always confirm the station address and configuration settings match your original setup before installation.

Q: The processor module boots but won’t communicate with the operator station. What should I check first? A: Start with the Ethernet port LEDs and the station address configuration. If the link LED is off, you likely have a cable or switch issue. If the link is up but communication fails, check that the processor’s firmware version matches what the Freelance project expects, and verify the station address isn’t duplicated on the network. A firmware mismatch or address conflict is the most common cause of “booted but silent” behavior on Freelance processors.

Q: Do you test the ABB PM783F 3BDH000364R0001 before shipping, and is there a warranty? A: Yes. Every unit undergoes our in-house functional rack test, visual inspection, and anti-counterfeit verification before shipment. We stand behind our inventory with a standard one-year warranty on all processor modules. If a unit fails to perform as specified, we handle replacement directly.

Q: Is this module compatible with AC 800M or Advant OCS systems? A: No. The PM783F is part of the ABB Freelance / AC 800F platform, which is a different architecture from the AC 800M (PM800-series) and Advant OCS (PM150/PM511) systems. If your system uses AC 800M or Advant OCS hardware, you need a processor module from those respective families. Confirm your existing rack type before ordering — mixing Freelance and other ABB platforms won’t work.
