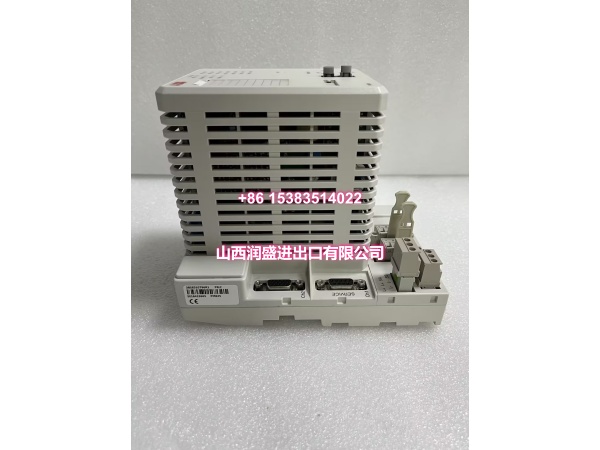

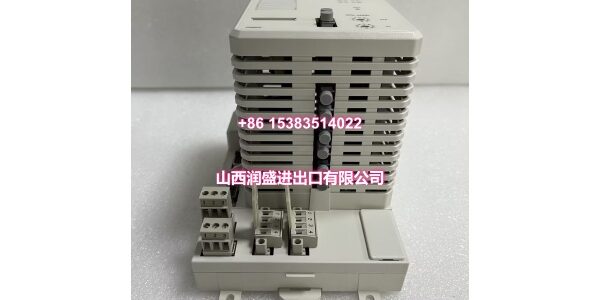

Product Quick Summary
- Model: PM825
- Part Number: 3BSE010796R1
- Brand: ABB
- Core Function: Processor module for AC 800M / Advant OCS control systems
- Standout Specs: MPC8250 PowerQUICC processor at 133 MHz; 16 MB SDRAM + 8 MB Flash; supports controller redundancy with ≤10 ms switchover
- Condition: New Surplus / Refurbished (Legacy / Discontinued part)
Core Technical Specifications
| Parameter | Detail |
|---|---|
| Brand | ABB |
| Model | |
| Part Number | 3BSE010796R1 |
| Product Type | Processor Module / CPU |
| Controller Family | AC 800M / Advant OCS |
| Processor | MPC8250 PowerQUICC, 133 MHz |
| Memory | 16 MB SDRAM / 8 MB Flash / 128 KB battery-backed RAM |
| Communication Interfaces | 10/100 Mbps Ethernet (RJ45), RS-232, 2x RS-485 (Modbus RTU), Profibus DP via expansion |
| Power Supply | 24 V DC (19.2–30 V DC range) |
| Power Consumption | Typical 1.5 W, max 3.5 W |
| I/O Expansion | Up to 32 S800 I/O modules via IM860 interface |
| Redundancy | Hot-standby redundancy supported (requires SM812 module), switchover ≤10 ms |
| Operating Temperature | -25°C to +70°C |
| Mounting | DIN-rail / baseplate mounting in AC 800M cabinet |
| Origin | Sweden |
Engineer’s Perspective
The ABB PM825 3BSE010796R1 is a processor module designed for ABB’s AC 800M and Advant OCS control platforms. If you’re maintaining an AC 800M installation in a power plant, chemical processing facility, water treatment site, or metallurgical operation, this module is the brain that keeps the whole rack executing logic and managing I/O communication. It’s not a new-release product — it’s a legacy controller that’s been proven in the field for years, and finding a tested replacement quickly is critical when a CPU failure takes a station offline.
What makes the ABB PM825 3BSE010796R1 worth sourcing today is its role as the core processor in the AC 800M architecture. When this module goes down, the entire control loop stops. The processor handles real-time execution of control programs, data processing, and communication with S800 I/O stations and HMI interfaces via Ethernet and fieldbus expansion modules. It supports Profibus DP, Modbus TCP/RTU, and other protocols through CI communication interfaces, which means it can talk to a wide range of field devices without needing additional gateways.
We’ve seen these units pulled from decommissioned AC 800M systems and refurbished to full operational status. The key thing to watch is firmware and hardware revision compatibility — a mismatch between the replacement module and your existing station configuration can cause communication faults or prevent the processor from recognizing installed S800 I/O modules. Always verify your current setup before swapping in a replacement.
Installation, Compatibility & Risk Avoidance
Before you install the ABB PM825 3BSE010796R1 into a live AC 800M rack, there are a few common pitfalls that can cause headaches:
- Firmware and revision match: Check the firmware version on your existing processor and confirm the replacement matches. A version mismatch can prevent the module from syncing with the control network or recognizing the S800 I/O configuration.
- Station address configuration: The PM825 uses software-based station addressing in the AC 800M environment. Make sure the address matches your system documentation before powering up — a duplicate address on the network will cause communication collisions.
- Power budget check: The AC 800M baseplate has a finite power budget. Verify the total load from all installed modules before inserting a replacement processor to avoid undervoltage trips.
- S800 I/O mapping: Since the PM825 has no onboard I/O, confirm that all CI communication modules and S800 I/O blocks are properly mapped in the control program before deployment. A missing CI module definition will cause I/O faults at startup.
- Redundancy sync: If your system runs in a hot-standby redundant configuration (with SM812 module), confirm the replacement module’s firmware matches the primary processor before attempting synchronization. A firmware mismatch will prevent the redundant pair from syncing.
Field Note: Before swapping a processor in a live AC 800M rack, always back up the current control program and note the LED status pattern on the old module. The RUN/ERR LED sequence tells you whether the fault is a hardware failure or a software communication issue — saving you from replacing a module that just needs a firmware reload.
Our In-House Testing Process
Every ABB PM825 3BSE010796R1 unit goes through our internal inspection before it leaves our facility:
- Incoming visual inspection: Checking for physical damage, corrosion, bent pins, or signs of improper handling.
- Anti-counterfeit verification: Cross-referencing serial numbers, PCB markings, and manufacturing labels against known ABB specifications.
- Functional rack testing: Powering the module in a test chassis and verifying LED status indicators, boot sequence, and communication handshake on Ethernet, serial, and fieldbus ports.
- Electrical insulation testing: Ensuring no short circuits or degraded insulation on terminal connections.
- Static-proof packaging: Each unit is sealed in anti-static bags with protective foam before shipping.
Natural FAQ
Q: Can the ABB PM825 3BSE010796R1 replace an older PM825 version in my AC 800M rack? A: In most cases, yes. The PM825 is designed as a direct replacement within the AC 800M family. However, you need to verify the firmware version and hardware revision. If your existing system runs Control Builder M software, the module is fully compatible. Always confirm the station address and configuration settings match your original setup before installation.
Q: The processor module boots but won’t communicate with the HMI or remote I/O. What should I check first? A: Start with the Ethernet port LEDs and the station address configuration. If the link LED is off, you likely have a cable or switch issue. If the link is up but communication fails, check that the processor’s firmware version matches what the Control Builder M project expects, and verify the station address isn’t duplicated on the network. A firmware mismatch or address conflict is the most common cause of “booted but silent” behavior on AC 800M processors.
Q: Do you test the ABB PM825 3BSE010796R1 before shipping, and is there a warranty? A: Yes. Every unit undergoes our in-house functional rack test, visual inspection, and anti-counterfeit verification before shipment. We stand behind our inventory with a standard one-year warranty on all processor modules. If a unit fails to perform as specified, we handle replacement directly.
Q: Is this module compatible with Advant Controller 450 or MasterPiece 90 systems? A: No. The PM825 is part of the AC 800M / Advant OCS platform, which is a different architecture from the older Advant Controller 450 (PM511) and MasterPiece 90 (PM630) systems. If your system uses Advant Controller 450 or MasterPiece 90 hardware, you need a processor module from those respective families. Confirm your existing rack type before ordering — mixing AC 800M and older Advant hardware won’t work.
