Product Core Brief
- Model: AAI143-S50/K4A00
- Brand: YOKOGAWA
- Series: CENTUM CS3000 DCS
- Core Function: Receives and isolates sixteen 4-20mA analog signals for process control.
- Product Type: Analog Input Module
- Key Specs: 16 Channels | 4-20mA DC | KS Cable Adapter (/K4A00)
- Condition: New Original / New Surplus
Product Introduction

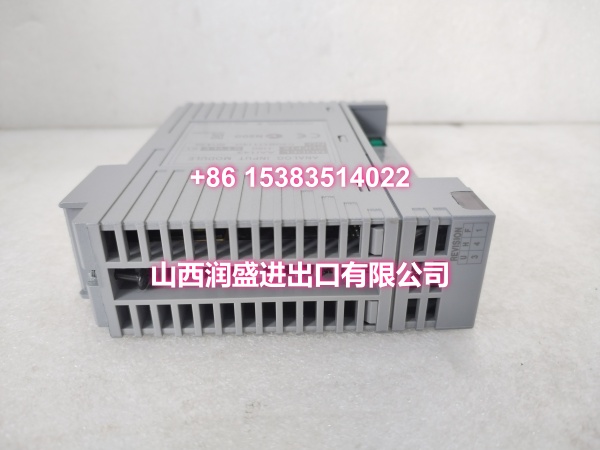

YOKOGAWA AAI143-S50/K4A00 analog input modules serve as the critical interface between field transmitters and the DCS controller. This industrial automation unit provides sixteen fully isolated channels for reliable signal acquisition.
The YOKOGAWA AAI143-S50/K4A00 includes the /K4A00 suffix, meaning it ships with a KS cable interface adapter (ATK4A-00). This specific replacement module saves procurement time by bundling the necessary terminal board adapter for AEA4D connections.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Signal | 4-20 mA DC |
| Number of Channels | 16 (Fully Isolated) |
| Module Type | Standard (-S50) |
| Adapter Code | /K4A00 (KS Cable Interface) |
| Adapter Model | ATK4A-00 |
| Target Terminal Board | AEA4D |
| Power Supply | 24 VDC (from ModuleBus) |
| DCS Compatibility | CENTUM CS3000 R3 |
| HART Pass-Through | Supported (Point-to-Point) |
| ModuleBus Isolation | One Group (8 Channels) |
Quality Control Process
Every YOKOGAWA AAI143-S50/K4A00 undergoes strict hardware validation before shipping. We first inject precise 4-20mA signals into all sixteen channels using calibrated process simulators to verify scaling and accuracy. Next, technicians use a Megger to test the isolation resistance between the ModuleBus and the input stages.
We also verify the included ATK4A-00 adapter by checking the pinout continuity to the AEA4D terminal board interface. The module is then powered up on a test rack to confirm stable ModuleBus communication. Finally, the unit is sealed in anti-static packaging to protect the sensitive logic during transit.
Replacement Pitfall Guide
❗ Never mix up the adapter suffix codes. The /K4A00 specifically uses the ATK4A-00 adapter for AEA4D boards. If your panel uses an ATA4S pressure-clamp board, you must order the /A4S00 variant instead.
❗ Verify the ModuleBus isolation groups. Remember that all eight channels share isolation in one group. Grounding multiple channels to different earth potentials will cause ground loops and erratic readings.
❗ Check the HART pass-through limitations. While this standard module supports HART, it only allows point-to-point communication. Do not attempt to daisy-chain multiple HART devices on a single channel.
❗ Mind the 24VDC power draw. The input stages draw power directly from the ModuleBus. Ensure your redundant power supply can handle the cumulative load of all populated I/O slots.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level (Direct/Needs Adaptation) | Migration Notes |
|---|---|---|---|
| YOKOGAWA / | Direct | Drop-in replacement with included KS adapter | |
| AAI143-H50 | YOKOGAWA / | Needs Adaptation | Downgrading from HART to Standard; verify DCS config |
| AAI141-S50 | YOKOGAWA / | Needs Adaptation | Upgrading from non-isolated to isolated inputs |
- Channel Density: 16 fully isolated channels per module, maximizing backplane utilization.
- Signal Resolution: High-precision 4-20mA processing ensures accurate DCS trend monitoring.
