Product Core Brief

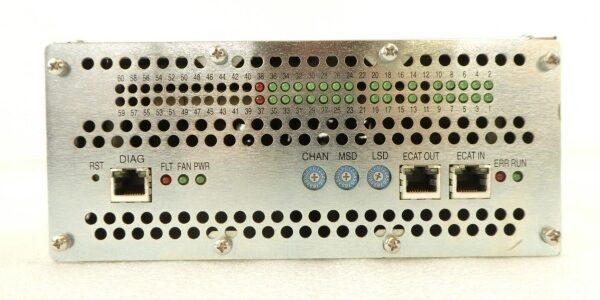

- Model: 0090-08114
- Brand: AMAT (Applied Materials)
- Series: MESA C3
- Core Function: Serves as the critical CIOC interface module bridging system controllers and semiconductor processing hardware.
- Product Type: Semiconductor Equipment Interface Module
- Key Specs: MESA C3 Architecture | CIOC Interface | Direct Backplane Mount
- Condition: New Surplus / Producer Working
Key Technical Specifications
- Manufacturer: Applied Materials (AMAT)
- Part Number: 0090-08114
- Product Category: Semiconductor Equipment Interface Module
- System Architecture: MESA C3 CIOC
- Mounting Type: Direct Backplane Slot
- Signal Type: Digital Control & I/O Interface
- Operating Voltage: 24 VDC / 5 VDC Logic
- Environmental Rating: IP20 (Cleanroom Panel Mount)
- Operating Temp Range: 0°C to 50°C
- Compliance: SEMI Standards / CE
Product Introduction (No Fluff)
This AMAT 0090-08114 acts as the central CIOC interface module within MESA C3 semiconductor processing systems, managing critical communication between the host controller and chamber hardware. It ensures precise signal routing and real-time fault monitoring during wafer fabrication.
Sourcing this exact OEM replacement part prevents prolonged tool downtime when legacy interface boards fail. Keeping verified new surplus stock on hand allows fabs to bypass extended lead times and restore chamber functionality immediately.
QA & Testing SOP (Dynamic & Transparent)
Semiconductor interface modules demand zero tolerance for signal degradation. Every 0090-08114 undergoes a strict inbound anti-counterfeit audit, verifying PCB silkscreen, component lot codes, and BGA solder joints against AMAT baselines. Next, we mount the module on a dedicated MESA C3 test rack to validate the CIOC bus handshake and verify digital I/O switching thresholds. We run a continuous loopback test to ensure no data corruption occurs during high-speed communication. Finally, a 6-hour burn-in under nominal logic voltage catches marginal components before they reach your cleanroom. All units ship in dual-layer ESD shielding with a printed QA test report.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Cleanroom Contamination Risks: This module handles sensitive CIOC bus signals. Even microscopic particulate on the backplane connector can cause intermittent communication faults. Wipe down the slot with approved cleanroom IPA wipes and inspect with a fiber-optic scope before mating the board.
❗ Backplane Connector Wear: MESA C3 backplanes endure years of thermal cycling. Inspect the slot receptacles for stretched or oxidized pins. Never force the 0090-08114 into the slot; if it requires excessive pressure, the backplane connector is likely compromised and needs rework.
❗ ESD Protocol Strictness: The CIOC interface ICs are highly sensitive to electrostatic discharge. A static shock from an ungrounded wrist strap can silently degrade the internal transceivers, leading to ghost faults weeks later. Verify your mat and strap resistance before touching the board.
Replacement Protocol:
- Pre-Install: Lock out the tool power. Verify 0 VDC at the backplane. Ground yourself properly.
- Removal: Release the card guides and extract the failed module straight out. Inspect the slot for debris or bent pins.
- Install: Align the 0090-08114 with the guides. Seat it evenly and secure the faceplate retaining screws.
- Power-on Test: Restore tool power. Monitor the CIOC bus status via the host GUI. Verify zero communication errors before returning the chamber to production.
Technical FAQ
Is this an exact drop-in replacement for my failed MESA C3 module?
Yes, provided your system is running the MESA C3 CIOC architecture. However, AMAT occasionally updates internal firmware revisions. Always verify the full part number and any revision suffix on your old board to ensure complete compatibility with your current tool configuration.
Why is this listed as “New Surplus” instead of factory-new?
This is genuine AMAT stock that was never deployed in a fab. It has been stored in climate-controlled inventory rather than operating in a corrosive semiconductor environment. You receive the exact same lifespan and reliability as a factory-fresh unit, typically at a significantly lower cost.
Can I hot-swap this interface module while the tool is running?
Absolutely not. The MESA C3 backplane lacks hot-swap isolation on the CIOC bus. Removing or inserting this module under power will cause a bus fault, potentially corrupting the host controller and damaging adjacent interface boards. Always follow proper lockout/tagout procedures.
What is the warranty coverage on this part?
We provide a standard 12-month functional warranty. If the module fails under normal operating conditions within that window, we replace it. Our QA testing proves the board functioned perfectly before it left our bench, so we stand behind our inventory.
My MESA C3 system is aging. Should I replace this module or plan a full tool upgrade?
If this is an isolated failure, replacing the 0090-08114 is the most cost-effective way to keep your fab running. However, if you are experiencing cascading interface failures across multiple slots, your backplane or power distribution may be degrading. Use this replacement as a bridge to schedule a comprehensive tool migration during your next planned maintenance window.
