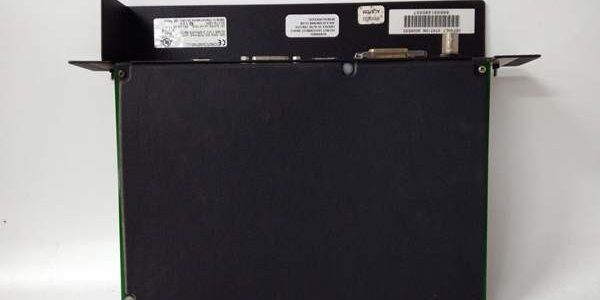

Product Core Brief

• Brand: GE Fanuc / Emerson Automation
• Model: IC697ALG320
• Series: Series 90‑70 PLC
• Core Function: Four-channel high-level analog output module converting digital %AQ register values into precision analog voltage or current signals for regulating control valves, variable drives and positioning actuators
• Type: Single-slot rack-mounted analog output module
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM production; limited surplus inventory
• Key Spec Highlights: 4 independent software-configurable channels, 16-bit DAC with 14-bit monotonicity, voltage/current range selection, backplane-to-field circuit isolation, open-wire detection for current loops

Key Technical Specifications

• Channel Configuration: 4 independent analog output channels
• Resolution: 16-bit DAC, 14-bit monotonicity
• Software-Selectable Output Ranges (per channel): · Voltage: 0–10 VDC, ±10 VDC · Current: 0–20 mA, 4–20 mA
• Load Limits: · Voltage output: Minimum 2 kΩ load impedance · Current output: Maximum 750 Ω loop resistance
• Update Rate: All four channels updated every 2 ms
• Isolation: 1500 VAC isolation between backplane logic and field wiring; channels share common field reference (no channel-to-channel isolation)
• Diagnostics: Open-wire detection active on 4–20 mA current loops, overrange / underrange monitoring
• Calibration: Factory calibrated; calibration constants stored in onboard non-volatile EEPROM
• Configuration Method: Software-only; no jumpers or DIP switches
• Backplane Power Draw: 1.66 A @ +5 VDC
• Operating Temperature: 0 °C to +60 °C
• Ambient Humidity: 5%–95% non‑condensing
• Mechanical Feature: Keyed carrier preventing mismatched module insertion
• Compatible Hardware: Standard Series 90‑70 backplanes and all supported Series 90‑70 CPU variants

Product Introduction

Precise modulating control of valves and process actuators depends on stable, high-resolution analog output signals. GE IC697ALG320 delivers four independent analog channels for Series 90‑70 control racks, allowing each channel to be individually set for voltage or current operation to match field device requirements.

Open-wire diagnostics notify control logic of broken 4–20 mA loop wiring before process excursions occur. All range setup is performed via programming software, eliminating field hardware adjustments. The standardized single-slot carrier enables direct drop-in spare replacement during planned maintenance outages.

Key Selling Points & Differentiators

1. GE supports independent per-channel range configuration, enabling mixed voltage and current actuator wiring within one module.
2. Embedded open-loop detection on 4–20 mA circuits reduces unplanned process upset risk by alerting operators to broken field wiring.
3. Every unit undergoes full bench validation on a Series 90‑70 test rack; full range output sweep, diagnostic function and load testing verified prior to shipment. Signed test documentation available on formal request. Warranty runs 12 months post delivery.
4. 16-bit conversion delivers smooth, fine resolution modulation critical for flow, temperature and pressure closed-loop control.
5. Not recommended for RX3i, RX7i or Series 90‑30 racks. Backplane connector and communication protocol are exclusive to Series 90‑70 architecture.
6. Software-only configuration reduces human error; no physical hardware reconfiguration required during spare module commissioning.

Quality Transparency SOP

• Incoming Verification: Serial traceability validation, anti-counterfeit visual inspection, terminal block hardware integrity cross-check.
• Live Bench Test: Dedicated Series 90‑70 test rack, power-on self-check, full range voltage/current output sweep, open-wire diagnostic simulation, continuous 24-hour thermal soak cycling.
• Electrical Tests: 500 V megger insulation resistance testing, output linearity and accuracy verification across all ranges.
• Hardware Verification: Confirm no unauthorized component rework; factory calibration data preserved.
• Final QC & Packaging: Anti-static shielding, shock-dampened transit carton, signed QC Pass label. Test images and logs available on request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Loop Resistance Overload Risk Risk: Exceeding the 750 Ω maximum loop resistance for 4–20 mA outputs causes signal clamping and loss of control range. Prevention: Calculate total wire + receiver resistance before commissioning; install signal repeaters for long cable routes. Field note: Multiple chemical plant control loops experienced limited valve travel after technicians added multiple isolators pushing loop resistance above rated limits.

Range Configuration Mismatch Risk Risk: Incorrect software range selection leads to actuator saturation or reversed control action. Prevention: Document channel range assignments in control drawings and verify configuration download after every module exchange.

ESD Damage Risk Risk: Unprotected handling damages analog output driver circuits without immediate visible fault indicators. Prevention: Use grounded wrist straps; keep the module sealed inside anti-static packaging until rack insertion.

Common-Mode Noise Risk Risk: Lack of channel-to-channel isolation allows transients on one output to affect adjacent channels. Prevention: Separate heavy inductive actuator wiring from analog signal cables; install external signal isolators in high-noise environments.

Critical Summary: Confirm rack platform and field actuator signal types before procurement. This analog output module operates exclusively within Series 90‑70 racks and cannot be substituted with Series 90‑30 or PACSystems analog I/O hardware.

FAQ

1. Q: Can GE be installed into RX3i, RX7i or Series 90‑30 PLC racks? A: No. It is designed exclusively for Series 90‑70 backplanes. Physical carrier pinout and backplane communications protocols differ completely from other GE PLC families.
2. Q: Does open-wire detection work on voltage output channels? A: No. Open-wire diagnostics are only active when the channel is configured for 4–20 mA current mode.
3. Q: Does this module support hot-swap replacement while the Series 90‑70 rack remains energized? A: Hot swap is not supported. Module removal terminates all four analog outputs; coordinated process shutdown is required for exchange.
4. Q: What lead times apply for available inventory? A: In-stock units ship within 1–3 business days. Backordered allocations require 5–7 week lead times subject to global surplus availability.
5. Q: What failure modes fall outside warranty coverage? A: The 12-month limited warranty covers manufacturing defects. Damage from sustained overload, field wiring short circuits, ESD and over-temperature operation is excluded.
6. Q: Can different output ranges be mixed on the same module? A: Yes. Each of the four channels may be independently programmed for voltage or current ranges.
7. Q: What is the difference between and IC697ALG321? A: IC697ALG321 adds channel-to-channel galvanic isolation. only provides backplane-to-field isolation without separation between output channels. The two cannot directly substitute without wiring and noise assessment.
