Product Core Brief
- Model: USC329AE01 3HB002483R0001
- Brand: ABB
- Series: UNITROL 1000 Auxiliary I/O Signal Conditioning Platform
- Core Function: Collects and isolates analog transducer and digital status signals for UNITROL 1000 family excitation controllers
- Product Type: Horizontal rack-slotted multi-channel I/O interface PCB
- Key Specs: 8 analog 4–20 mA inputs | 16 digital binary inputs | 1500 V AC channel isolation ⚠️ EOL — limited stock remaining
Product Introduction
ABB 3HB002483R0001 conditions raw field signals from generator temperature, rotor current, and breaker position transducers before sending data to UNITROL AVRs via rack backplane bus. This unit differs from UFC921A101 by adding 16 digital status channels while maintaining identical 0.1 % full-scale analog accuracy. It supports continuous signal sampling at 2.2 ms intervals across -20 °C to +60 °C cabinet operating ranges.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Analog input count | 8 galvanically isolated 4–20 mA loops |
| Digital input count | 16 dry-contact binary status inputs |
| Channel-to-backplane isolation | 1500 V AC reinforced separation |
| Analog measurement accuracy | ±0.1 % FS at 25 °C ambient |
| Auxiliary supply voltage | 24 V DC ±10 % SELV |
| Max operating current draw | 140 mA |
| Backplane communication | Proprietary UNITROL 1000 rack bus |
| Signal sampling cycle | 2.2 ms full channel scan |
| Operating cabinet temperature | -20 °C to +60 °C |
| Storage temperature | -40 °C to +85 °C |
| PCB coating | ISA G3 industrial conformal coating |
| Mounting standard | Standard UNITROL 1000 rack horizontal slot |
| Net weight | 0.41 kg |
Quality Control Process (Engineer’s Perspective)

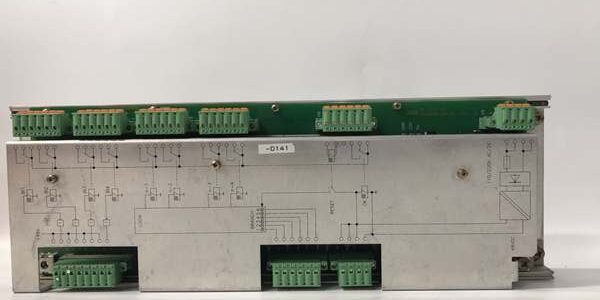

- Incoming Verification: Cross-reference serial numbers against ABB UNITROL spare database to flag counterfeit hardware. Inspect green spring terminal blocks and backplane gold edge pins with a 10x magnifier for corrosion or bent contacts; log serial numbers for plant traceability.
- Live Functional Test: Seat the unit on a UNITROL test rack paired with a UNITROL 1010 controller. Inject calibrated 4–20 mA signals to all analog channels and toggle digital contact inputs; run continuous 26-hour load testing with cabinet temperature logging.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between each signal channel and chassis ground; pass threshold set at >10 MΩ. Verify PE ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: Extract and record onboard logic firmware revision printed on PCB silkscreen. Photograph rack bus termination jumper positions for field commissioning reference.
- Final QC & Packaging: Wipe the PCB housing with anti-static microfiber cloth, cap all terminal blocks with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: firmware v2.1 drops backward compatibility with UNITROL1000 3BHE014557R0003 base controllers. Match exact firmware builds before rack power-up, or all analog readings will lock at zero permanently. ❗ DIP Switch / Jumper Misconfiguration: Factory default rack bus termination resistor is disabled. Most dual-controller excitation racks require the resistor enabled on the last I/O card in the slot chain; missed settings create cyclic backplane packet loss under full transducer load. ❗ Terminal / Cable Incompatibility: This unit uses 1.5 mm spring signal terminals, unlike UFC921A101 2.5 mm blocks. Oversized wire strands cause loose transducer wiring and intermittent channel dropout; shield drain wires must land on dedicated protective ground terminals only. ❗ Power Supply Mismatch: Full 8-channel analog transducer load draws 140 mA peak auxiliary power. Calculate rack power budget with 20 % overhead; undersized 24 V supplies trigger low-voltage lockout and missing digital status signals. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade internal ADC chips on the unit. Always use an anti-static mat and grounded wrist strap when handling exposed PCB edge connectors. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- UFC921A101 → 3HB002483R0001 : Needs Adaptation — adds digital input channels, rack bus pinout differs
- UNITROL 1010 → 3HB002483R0001 : Direct — full backplane communication compatibility, no rack modification required
- UNITROL 1020 → 3HB002483R0001 : Direct — identical slot footprint, minor parameter scaling for 20 A field output
