Product Core Brief

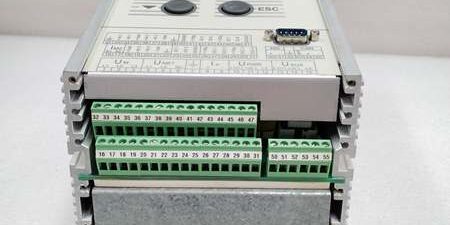

- Model: UNITROL1000 3BHE014557R0003 (Variant UN1000b-Z V3)
- Brand: ABB
- Series: UNITROL 1000 Compact Static Excitation AVR Platform
- Core Function: Digital automatic voltage regulator governing brushless synchronous generator field current for grid paralleling and voltage stabilization
- Product Type: Panel-mount single-channel excitation control unit
- Key Specs: 10 A continuous DC field output | RS232/RS485 Modbus RTU | 3 analog / 12 digital I/O ⚠️ EOL — limited stock remaining
Product Introduction
ABB 3BHE014557R0003 processes PT voltage and CT current signals to adjust IGBT field output for generators up to 50 MVA. It delivers built-in synchrocheck and power system stabilizer logic without external add-on modules. This unit differs from the UNITROL 1020 by halving maximum field current and omitting dual Ethernet ports. It holds ±0.5% steady-state voltage error across -20 °C to +70 °C and stores 8,000 timestamped fault logs in onboard flash memory.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Continuous field output current | 10 A DC at 55 °C ambient |
| Short-term overload field current | 20 A DC for maximum 10 seconds |
| Auxiliary supply input | 9–250 V AC single/3-phase; 18–300 V DC |
| Maximum unit power draw | 32 W |
| Steady-state voltage regulation accuracy | ±0.5 % full scale |
| Control loop response time | ≤120 ms full load step change |
| Communication ports | RS232 local service, RS485 Modbus RTU (9.6–19.2 kbit/s) |
| Onboard I/O allocation | 3 analog inputs (4–20 mA / ±10 V), 8 digital inputs, 4 relay outputs |
| Fault event storage capacity | 8,000 timestamped operational and trip logs |
| Operating cabinet temperature | -20 °C to +70 °C sealed enclosure |
| Humidity rating | 5–95 % RH non-condensing |
| Mechanical mounting | Standard 4U vertical panel cutout footprint |
| Net unit weight | 2.8 kg |
| Compliance standards | IEC 60034-1, IEC 60255, CE, DNV marine certified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB power control spare database to flag counterfeit hardware. Inspect terminal blocks, RS232 port and front membrane HMI with a 10x magnifier for pin corrosion or cracked housing; log serial numbers for power plant traceability.
- Live Functional Test: Mount the unit on a panel test rack paired with PT/CT signal simulators and resistive field load banks. Run continuous 26-hour load testing while logging cabinet temperature swings and recording voltage regulation deviation under full load steps.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between field power terminals and chassis ground; pass threshold set at >10 MΩ. Verify PE ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: Extract and record internal DSP firmware revision printed on the PCB silkscreen. Photograph RS485 bus termination jumper positions and I/O polarity labels for field commissioning reference.
- Final QC & Packaging: Wipe front HMI and terminal housing with anti-static microfiber cloth, cap all communication ports with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: 3BHE014557R0003 firmware V3.1 drops backward compatibility with UNITROL 1000 LIGHT variant logic. Match exact firmware builds before rack power-up, or synchrocheck interlocks will lock breaker close commands indefinitely. ❗ DIP Switch / Jumper Misconfiguration: Factory default RS485 bus termination resistor is disabled. Most plant SCADA trunk layouts require the resistor enabled on the last controller in the chain; missed settings create cyclic Modbus RTU packet loss under peak generator load. ❗ Terminal / Cable Incompatibility: This unit uses 2.5 mm spring signal terminals, unlike UNITROL 1020 4 mm power blocks. Oversized cable strands cause loose field wiring and intermittent excitation dropout; shield drain wires must land on dedicated protective ground terminals only. ❗ Power Supply Mismatch: Full 10 A field output draws 32 W peak auxiliary power. Calculate rack power budget with 20 % overhead; undersized AC/DC auxiliary supplies trigger low-voltage lockout and zero field current delivery. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade internal DSP and IGBT gate driver chips on the unit. Always use an anti-static mat and grounded wrist strap when accessing exposed terminal and PCB wiring. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- UNITROL 1005 → 3BHE014557R0003 : Needs Adaptation — maximum field current capacity differs, HMI navigation layout changed
- UNITROL 1010 → 3BHE014557R0003 : Direct — identical I/O pinout, minor PSS parameter re-tuning required
- UFC760BE143 → 3BHE014557R0003 : Incompatible — separate Masterbus300 rack bus architecture, no direct signal mapping
