Product Core Brief
- Model: DSTS106 (3BSE007287R1)
- Brand: ABB
- Series: Advant OCS Master DCS Power Control Hardware
- Core Function: Generates synchronized thyristor firing trigger pulses and delivers regulated backup DC voltage for Advant power control racks.
- Product Type: Trigger Pulse Generator & Regulator PCB Card
- Key Specs: 24 V DC nominal supply | Multi-channel SCR pulse output | Integrated backup regulation Condition: New Original (New Surplus)
Product Introduction

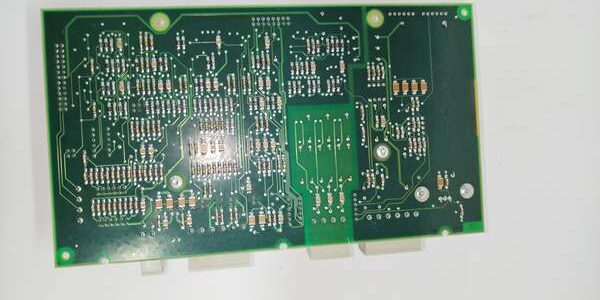

The ABB 3BSE007287R1 is a rack-mounted pulse generator board built exclusively for ABB Advant OCS Controller 110 power regulation systems. It times SCR firing sequences for industrial DC power conversion loops.Well, technically it shares rear cabinet DSRA mounting rails with DSTC-series communication units, yet the ABB 3BSE007287R1 integrates analog pulse timing circuits absent from pure communication hardware. Its pulse phase resolution locks at 0.05° for precise power output modulation under full load.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Number | , 3BSE007287R1 |
| Target Controller Platform | Advant OCS AC110 power control racks |
| Core Functionality | SCR thyristor trigger pulse generation + auxiliary backup voltage regulation |
| Nominal Operating Supply | 24 V DC (18–30 V continuous input window) |
| Total Board Power Draw | 110 mA under full pulse generation load |
| Pulse Phase Resolution | 0.05° electrical phase accuracy |
| Dielectric Isolation Rating | 500 V AC between control logic and power trigger outputs |
| Operating Ambient Temperature | -20 °C to +60 °C enclosed control cabinet |
| Storage Temperature Range | -40 °C to +70 °C non-operating storage |
| Internal System Bus | MasterBus300 proprietary Advant rack bus |
| Physical Mount Format | Standard DSRA rear cabinet DIN rail slot |
| Unit Net Weight | 0.28 kg fully assembled with terminal headers |
| Enclosure Class | IP20 for indoor cabinet installation only |
| Terminal Wire Gauge Max | 2.5 mm² solid copper signal conductors |
Quality Control Process
- Incoming Verification: Cross-reference PCB serial numbers against ABB Advant power control batch manifests to reject counterfeit trigger hardware. Visual inspection scans for cracked pulse transformer windings, bent D-Sub header pins, or swollen electrolytic capacitors (—minor conformal coating speckles pass QA standards).
- Live Functional Test: Secure the board to a calibrated DSRA test rail, feed regulated 24 V DC rack supply, and run power-on self-diagnostics. Establish MasterBus300 handshake with an AC110 test controller, then execute a 24-hour continuous SCR pulse generation cycle with hourly phase shift logging.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate cross-circuit insulation resistance; all trigger output paths must register above 10 MΩ. Confirm DSRA rail protective earth continuity via Fluke 115 digital multimeter across chassis ground lugs.
- Firmware Verification: Read embedded pulse timing controller firmware revision through Advant Engineering Workbench, log the version to unit trace paperwork, and photograph phase offset DIP switches on the primary terminal header for field replacement reference.
- Final QC & Packaging: Cap exposed multi-pin signal connectors with factory dust plugs, wipe rail mounting contacts with isopropyl alcohol, seal the PCB inside anti-static shielding bag, and attach a dated QC Passed sticker with assigned test technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: Legacy AC110 Advant racks running power control firmware v3.1 or older cannot synchronize firing pulses from newer ABB 3BSE007287R1 firmware v1.9. Upgrade controller runtime or source vintage matching trigger board revisions.
- DIP Switch / Jumper Misconfiguration: Factory DIP defaults set mid-range phase offset, but high-current SCR stacks require adjusted pulse delay jumpers; misaligned switches create power ripple exceeding 8% of rated DC output.
- Terminal / Cable Incompatibility: Trigger output pin mapping differs between ABB 3BSE007287R1 and older DSTS101A pulse cards. Route all pulse cable shield drains directly to cabinet master earth bars, not local DSRA rail grounds.
- Power Supply Mismatch: Sum total draw of all trigger and communication boards in the cabinet and add 20% power headroom to the rack 24 V PSU. Undervoltage supply distorts pulse phase timing and triggers persistent SCR misfire faults.
- ESD Damage: Static discharge risk rises heavily at plant humidity below 30%. Rest the PCB on an anti-static mat during rail swaps; bare contact with pulse transformer control traces corrupts firing timing logic instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BSE007287R1 → 3BSE007287R1 : Direct — Exact pulse timing, regulator circuit, and DSRA mounting drop-in replacement
- 3BSE007287R1 → DSTS101A : Needs Adaptation — Narrower phase resolution, full power control loop recalibration required
- 3BSE007287R1 → DSTC190 : Incompatible — AUI communication adapter lacks SCR pulse generation hardware
- 3BSE007287R1 → DSTA131 : Incompatible — Analog termination base contains no power trigger logic
Benchmarks
- Pulse phase adjustment resolution: 0.05° (simulated full SCR stack load)
- MasterBus300 bus throughput: 10 Mbit/s (Advant rack internal communication)
Internal Self-Check Confirmation
