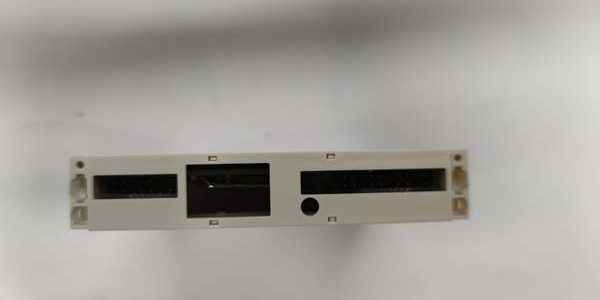

Product Core Brief

• Model: AO910, three variants AO910N (safe area, 3KDE175512L9100) / AO910B (Zone 2, 3KDE175532L9100) / AO910S (Zone 1 Ex ia)
• Brand: ABB Measurement & Control
• Series: S900 Intrinsically Safe Remote I/O for Freelance DCS
• Core Function: Converts Profibus DP digital setpoints to 4-channel 0/4–20mA analog drive signals for modulating field actuators and valve positioners.
• Product Type: DIN rail mount remote analog output I/O module
• Key Specs: 4 common-ground output channels | 13-bit D/A resolution | Group galvanic isolation; AO910S certified ATEX Zone 1Note: Active OEM spare, new original surplus stock available; no onboard HART modem circuitry.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, max power draw 1.8 W
• Supported output signal ranges: 0–20 mA, 4–20 mA; voltage output unsupported
• D/A hardware: 13-bit unsigned conversion per channel
• Full 4-channel output refresh cycle: 10 ms base scan rate
• Max permissible load resistance: 750 Ω per channel continuous
• Measurement accuracy: Max ±0.12 % full scale at 25 °C ambient, drift ≤55 ppm/°C
• Galvanic isolation: Single group isolation between field wiring and Profibus bus logic, 1500 VAC 1-minute dielectric withstand
• Circuit protection: Per-channel self-resetting PTC short-circuit limiting capped at 26 mA
• Built-in diagnostics: Open-loop wire-break detection, over/under-range flagging, module supply supervision
• Hazardous certifications: AO910N = safe area only; AO910B = ATEX II 3G Zone 2; AO910S = ATEX II 1G Ex ia Zone 0/1
• PCB coating: ISA-S71.04 G3 grade conformal coating for corrosive industrial atmospheres
• Status indicators: 4 channel LEDs, global POWER and MODULE FAULT diagnostic lamps
• Mechanical form: Standard S900 snap-on DIN rail module, hot-swap certified to IEC 61131-2
• Operating ambient: -20 °C to +60 °C continuous duty; max relative humidity 93% non-condensing
• Storage range: -40 °C to +70 °C, non-condensing 5–95 % relative humidity
• Max field wiring length: 600 meters with shielded twisted pair control cable
• Dimensions: 20 mm W × 104 mm H × 104 mm D
• Net weight: 0.13 kg

Product Introduction

This field-mounted analog drive module is built exclusively for S900 remote I/O racks paired with Freelance DCS controllers. It installs locally near process equipment to drive standard 2-wire modulating actuators without central control room marshalling panels.Group galvanic isolation suppresses common-mode noise from nearby variable frequency drives, limiting steady-state output deviation below 0.12% full scale during heavy motor load transients. The three tiered hazardous-area variants eliminate external isolation barriers for chemical, oil and gas plant field installations.

QA & Testing SOP

1. Incoming Inspection: Cross-reference serial numbers and 3KDE part code against ABB S900 spare part databases. Inspect conformal coating integrity, terminal block spring tension and full 4-channel LED functionality. Reject units with torn factory anti-static packaging to filter counterfeit inventory.
2. Live Testing: Mount the module on an S900 DIN rail test station paired with a Freelance Profibus DP simulator. Run continuous 24-hour cyclic output sweep testing across all channels while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate field wiring short-circuits and open current loops to validate PTC limiting and wire-break alarm timing.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between field channel group and Profibus logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no erratic output swing or false fault flags.
4. Firmware/Config Backup: Record factory default fail-safe output preset values via Freelance Engineering software. Capture high-resolution photos of terminal pin labeling for hazardous area commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over front terminal headers. Place the module inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide

❗Firmware Rev Mismatch Risk: Freelance controller firmware older than v9.2.0 lacks register mapping for wire-break diagnostic logic. Post-replacement, the DCS ignores disconnected valve loop signals and throws intermittent AO COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before DIN rail mounting.❗Hazardous Area Variant Misuse Risk: Mounting AO910N (safe area model) inside Zone 1/2 classified cabinets voids ATEX compliance. Match module certification rating to site zone classification per plant safety documentation.❗HART Device Compatibility Risk: No onboard HART modem hardware. Smart HART valve positioners wired to this unit lose all digital diagnostic and remote calibration workflows; select AO930 series for HART field devices.❗Wiring Incompatibilities: Unshielded field wiring introduces RF interference into current outputs, creating ±0.3% full scale output swing near VFDs. Use shielded twisted pair cable with single-point chassis ground at the S900 rack terminal bar, follow 0.6 N·m torque specs for terminal screws.❗ESD Dangers: Ungrounded handling exposes D/A analog traces to static discharge from dry field cabinet air. Field records show unprotected handling burns output drive circuits; full process unit downtime labor cost exceeds $1,590. Remediation: Place anti-static mat under the rack, wear grounded wrist strap, touch bare DIN rail chassis ground for 3 seconds before handling the module.

4-step replacement guide

1. Pre-install: Lock out and tag rack 24VDC auxiliary power; pause Profibus DP fieldbus communication before hot-swap. Photograph terminal wiring layout and existing channel fail-safe assignments from the old unit; set all critical modulating valves to manual bypass position.
2. Removal: Depress DIN rail latch, slide the old module upward off the rail and disconnect terminal wiring one channel at a time to avoid cross-circuit miswiring to safety-critical control loops.
3. Install: Transfer actuator wiring harness to the new unit’s terminal header, snap the module fully onto the DIN rail and lock the mounting latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all channel LEDs activate correctly, connect a precision mA calibrator to confirm stable output ramping before resuming full DCS Profibus communication and automatic valve modulation.

FAQ

Q: Can this unit be hot-swapped while the rack remains powered?A: Yes, the hardware carries official ABB hot-swap certification for all three variants. For high-EMI field cabinets with medium voltage drives, isolate auxiliary power first to prevent Profibus data corruption from voltage transients.Q: Does this module carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty coverage follows component lifecycle timelines. All surplus inventory passes full in-house bench QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during validation testing.Q: Can AO920 serve as a direct drop-in replacement for the module?A: DIN rail mechanical fit only. AO920 provides channel-to-channel galvanic isolation while this unit uses single-group shared ground. Swapping without reworking field wiring and DCS fault logic introduces cross-channel signal crosstalk.Q: What minimum Freelance controller firmware version enables full wire-break diagnostic support?A: Freelance DCS controller firmware v9.2.0 or newer. Older builds lack register addresses for open-loop current detection, only delivering raw analog setpoints with no broken valve loop alarm flags.Q: Will the unit retain fail-safe output and channel scaling settings after power loss?A: No configuration data stores on-board. All channel mA range and fail-safe parameters reside in the Freelance controller’s non-volatile memory. No re-calibration of the device itself is needed post-swap.Q: Is the unit compatible with S800 I/O racks for AC800M controllers?A: No. The module uses the proprietary Profibus remote I/O bus, which is electrically incompatible with S800 backplane architecture and cannot be cross-mounted.Q: Can multiple actuators be multi-dropped on a single channel of AO910?A: Not recommended. Each channel is designed for a single 2-wire actuator load; multi-drop wiring increases total loop resistance beyond the module’s 750 Ω limit and triggers persistent over-range fault codes.
