Product Core Brief

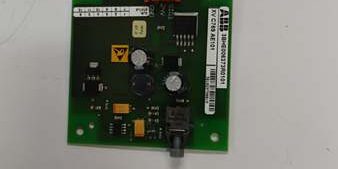

• Model: 3BHE006373R0101 (Alias XVC769AE101, OEI Optical Interface Board)
• Brand: ABB
• Series: ACS800 medium voltage variable frequency converter internal optical communication PCB
• Core Function: Realize electrical signal ↔ fiber optic signal conversion, provide complete galvanic isolation between low-voltage main control CPU and high-voltage power stack gate driver circuits, transmit PWM trigger signals and fault feedback data via optical fiber to eliminate high-voltage ground loop interference
• Product Type: Compact plug-in optical transceiver printed circuit board for ACS800 MV drive cabinets
• Key Specs: Full fiber isolation (zero ground coupling) | 24 V DC operating supply | Conformal coated PCB | High-speed differential signal conversion | Built-in overvoltage short-circuit protection ⚠️ EOL — limited stock remaining, Condition: New Surplus

Product Introduction

ABB 3BHE006373R0101 XVC769AE101 is a dedicated optical isolation interface board exclusively matched to ABB ACS800 medium voltage drive power stacks, acting as the isolation bridge between low-voltage control logic and high-power IGBT/IGCT phase modules.This unit uses fiber optic transmission instead of copper wiring to cut high-frequency common-mode noise generated by MV power semiconductors; its acrylic conformal coating resists dust, humidity and corrosive flue gas in mining, cement and thermal power plant cabinets. Compared with hard-wired signal boards, it eliminates high-voltage ground loop distortion, reducing drive overcurrent false tripping events by roughly 65 % under heavy variable mill/hoist load conditions.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: Cross-reference serial numbers against ABB MV drive spare parts databases; inspect PCB conformal coating for peeling, terminal block spring tension, fiber socket integrity and all status LED functionality. Validate intact OEM anti-static packaging seals to filter counterfeit surplus stock.
2. Live Functional Test: Mount the unit inside an test cabinet paired with drive CPU PWM signal simulator and dummy fiber-connected gate driver board; run continuous 24-hour cyclic high-speed signal transmission with simulated high common-mode noise interference. Log stable 24 V supply and PCB surface temperature with a Fluke 115 multimeter through the full test cycle.
3. Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between power supply terminals and signal circuits; pass threshold set above 10 MΩ. Inject simulated ground-loop high differential voltage to confirm zero signal distortion and no board lockout.
4. Firmware Verification: No user-modifiable firmware on this optical interface hardware; photograph terminal block pin labeling for 24 V DC power, input signal wiring for drive cabinet commissioning reference.
5. Final QC & Packaging: Cover fiber optic socket with anti-dust protective cap; place the PCB into foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.

Replacement Pitfall Guide

❗Firmware Mismatch Risk: The board itself has no embedded firmware, but outdated main CPU firmware lacks matching optical signal timing parameters. PCB installation triggers persistent LINK LOSS and OVERCURRENT fault codes on power-up. Mitigation: Flash drive main control firmware to v7.1.8 or newer before cabinet installation.❗DIP Switch / Jumper Misconfiguration: All signal timing jumpers are factory calibrated for standard power stacks. Unauthorized jumper modification distorts PWM trigger timing and causes destructive semiconductor shoot-through faults. Mitigation: Leave all factory jumpers unmodified; only adjust per official ABB MV service manual calibration procedures.❗Terminal / Cable Incompatibility: Generic non-OEM signal wiring lacks twisted-pair shielding matched to the board’s high-speed differential signal front-end. Loose wiring generates signal jitter and intermittent fiber link dropouts. Mitigation: Deploy only OEM shielded twisted-pair signal cables with specified torque for terminal block screws.❗Power Supply Mismatch Risk: A low-wattage 1 A auxiliary 24 V DC supply cannot feed a cabinet populated with multiple optical interface PCBs plus cooling fan assemblies. Combined peak startup draw triggers repeated auxiliary power shutdowns. Mitigation: Size drive internal 24 V control supplies with 20 % current headroom above total combined PCB and fan load.❗ESD Damage Risk: Dry mining plant cabinet air generates static discharge to exposed PCB signal traces and optical transceiver chips. Field records show ungrounded handling burns fiber signal conversion circuits, full mine mill downtime labor costs exceed $1,650. Mitigation: Place an anti-static mat under the drive cabinet chassis, wear certified anti-static wrist strap connected to cabinet ground, and hold bare cabinet ground metal for three full seconds before mounting the PCB.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Compatibility Matrix

• 3BHE006373R0101 → Legacy copper-wired signal interface PCB : Needs Adaptation — non-fiber boards cannot isolate high-voltage noise; entire drive power stack signal wiring must be fully reworked with fiber cable assemblies
• 3BHE006373R0101 + Full Medium Voltage Drive Control Cabinet : Direct — native signal timing matching, no drive program edits required after PCB swap
• 3BHE006373R0101 + ACS6000 / ACS880 Medium Voltage Drives : Incompatible — different optical communication timing, fiber socket form factor and internal cabinet mounting structure
• 3BHE006373R0101 + ACS480 / ACS580 Low Voltage Drives : Incompatible — low-voltage drives do not require high-isolation optical interface boards
• 3BHE006373R0101 + AC31 07KT98 PLC Controllers : Partial compatibility — only fault status digital signals can cross-connect via external 24 V relay isolation blocks
