Product Core Brief

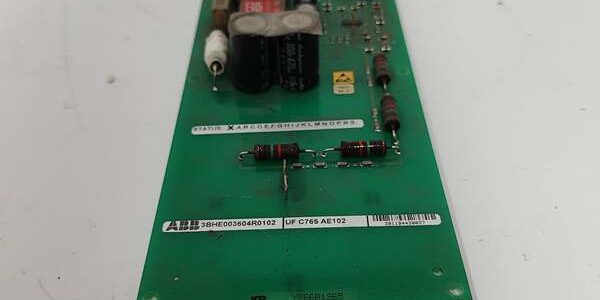

- Model: 3BHE003604R0102 (Designation UFC765AE102)
- Brand: ABB
- Series: UFC series universal field control board for Advant OCS / Symphony Plus DCS platform
- Core Function: Real-time signal conditioning, fieldbus communication gateway and drive/generator excitation interface; bridge DCS backplane bus with external variable frequency drives and generator excitation control loops
- Product Type: Standard Eurocard rack slide-in interface printed circuit board
- Key Specs: 24 V DC backplane supply | Multi-channel analog/discrete signal isolation | Proprietary Advant fieldbus + Modbus RTU dual communication | Full acrylic PCB conformal coating ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction
ABB 3BHE003604R0102 UFC765AE102 is a universal interface board developed exclusively for ABB Advant OCS and Symphony Plus distributed control systems, widely deployed in thermal power, hydropower, metallurgy and chemical plant generator excitation and MV drive control cabinets.This unit integrates backplane high-speed data exchange, analog signal isolation and serial communication conversion in one single card; its multi-stage EMC filtering and 1500 VAC channel isolation suppress strong electromagnetic interference from high-power rectifiers and IGBT stacks, cutting analog measurement jitter by roughly 60 % on generator voltage/current closed-loop regulation. Compared to separate communication and signal conditioning cards, it reduces cabinet rack slot occupancy and simplifies DCS I/O wiring architecture.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Operating supply | 24 V DC ±20 %, powered via DCS rack backplane; max 12 W power consumption |
| Isolation rating | 1500 VAC one-minute hipot between backplane logic, analog field channels and serial bus circuits |
| Supported signal types | Configurable 4–20 mA / 0–10 V analog; 24 V DC sinking/sourcing discrete DI/DO |
| Communication interfaces | 1. Internal Advant proprietary backplane bus; 2. External RS485 Modbus RTU slave/master |
| PCB protection | Full acrylic conformal coating against dust, humidity and mild corrosive flue gas in power plant cabinets |
| Onboard protection | Input overvoltage lockout, channel short-circuit current limiting, reverse power supply guard |
| Front indicators | Per-channel signal LED, POWER, BUS COMM, FAULT multi-stage diagnostic lamps |
| Mechanical form factor | Standard Eurocard slide-in for ABB Symphony Plus / Advant OCS rack backplanes |
| Operating ambient range | -25 °C to +70 °C full rated signal precision; linear derating above 65 °C |
| Storage temperature range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Physical dimensions | W25 mm × H233 mm × D130 mm |
| Net unit mass | 0.08 kg |
| Exclusive system compatibility | ABB Advant OCS, Symphony Plus DCS racks; compatible with generator excitation cabinets and ACS MV drive control systems; incompatible with AC31 PLC, S800 I/O standalone racks, low voltage ACS480/580 drives |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB Symphony DCS spare parts databases; inspect edge connector gold plating for oxidation, PCB conformal coating integrity, all channel and communication LED functionality. Validate intact OEM anti-static packaging seals to filter counterfeit surplus stock.
- Live Functional Test: Insert the unit into a Symphony Plus test rack paired with DCS CPU simulator, 4–20 mA signal sources and Modbus RTU drive simulator; run continuous 24-hour cyclic analog sampling, discrete channel switching and bidirectional bus data exchange. Log stable 24 V backplane voltage and PCB surface temperature with a Fluke 115 multimeter through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure isolation resistance between all isolated circuit domains; pass threshold set above 10 MΩ. Inject differential ground-loop voltage and short-circuit channel conditions to confirm instant channel cutoff without permanent PCB trace burnout.
- Firmware Verification: Read and record factory communication interface firmware revision via ABB System 800xA diagnostic tool; photograph edge connector and terminal block pin labeling for analog field signals, Modbus bus and backplane wiring for power plant cabinet commissioning reference.
- Final QC & Packaging: Wipe PCB surfaces with anti-static cloth; place the board into foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Older Symphony Plus CPU firmware revisions lack register mapping matched to this board’s dual-bus communication layout. Card insertion triggers persistent COMM LOSS and analog channel freeze faults during generator load transients. Mitigation: Upgrade DCS controller firmware to v6.1.2 or newer before rack installation.❗DIP Switch / Jumper Misconfiguration: All Modbus slave address, signal range and bus termination jumpers are factory preset. Unauthorized jumper modification causes bus collision or clipped analog measurement signals. Mitigation: Photograph jumper positions on the old card before removal and replicate exact settings on the replacement unit; do not alter factory calibration jumpers without official ABB service documentation guidance.❗Terminal / Cable Incompatibility: Unshielded field and Modbus cables lack twisted-pair EMC drain wires matched to the board’s differential signal front-end. Long unshielded wiring introduces mains-coupled noise and fluctuating generator voltage feedback values. Mitigation: Deploy only OEM shielded twisted-pair field cables with single-point shield grounding at the DCS cabinet terminal bar.❗Power Supply Mismatch Risk: A degraded DCS rack backplane 24 V DC bus with insufficient current capacity cannot feed a fully populated rack with multiple UFC765AE102 boards. Combined peak communication startup draw triggers repeated rack power reset events. Mitigation: Verify rack backplane power supply capacity with 20 % current headroom above total combined rack module load before replacement.❗ESD Damage Risk: Dry power plant control room air generates static discharge to exposed edge connector and analog op-amp traces. Field records show ungrounded handling burns Modbus transceivers and analog sampling circuits, full generator unit downtime labor costs exceed $1,900. Mitigation: Place an anti-static mat under the DCS rack chassis, wear certified anti-static wrist strap connected to cabinet ground, and hold bare cabinet ground metal for three full seconds before extracting/seating the Eurocard PCB.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BHE003604R0102 → Legacy single-bus UFC interface PCB : Needs Adaptation — older boards lack dual Advant/Modbus bus circuits; all drive excitation communication logic must be re-mapped and split across multiple rack slots
- 3BHE003604R0102 + Symphony Plus / Advant OCS DCS Racks : Direct — native backplane register mapping, no DCS project logic edits required after PCB swap
- 3BHE003604R0102 + ABB ACS800/ACS880 Medium Voltage Drives : Partial compatibility — Modbus RTU port can directly link to MV drive control boards without extra protocol converters
- 3BHE003604R0102 + AC31 07KT98 PLC Controllers : Incompatible — AC31 CS31 bus cannot interface with Advant proprietary backplane communication
- 3BHE003604R0102 + S800 AI/DO Process I/O Modules : Partial compatibility — analog 4–20 mA signals can cross-connect via terminal blocks, no direct backplane bus interoperability
