Product Core Brief
- Model: 3BHB009884R5211 (Internal designation S-073N ALU phase module)
- Brand: ABB
- Series: ACS6000 medium voltage AC variable frequency drive power stack assembly
- Core Function: Serve as two-quadrant active front-end rectifier module, implement power factor correction and three-phase AC-to-DC energy conversion for MV drive DC bus
- Product Type: Complete integrated power phase module with power semiconductors, cooling radiator, gate driver subassembly
- Key Specs: 500 kW rated power | 380–500 V three-phase input | 0–690 V DC bus output | Up to 0.99 power factor ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction

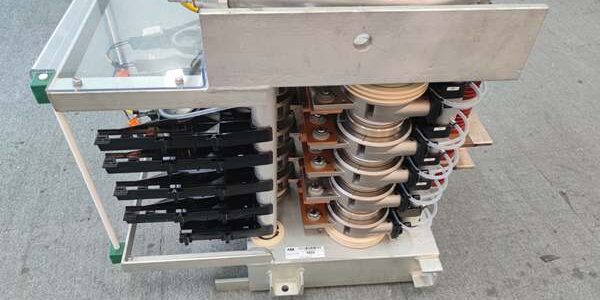

ABB 3BHB009884R5211 S-073N is a fully integrated active front-end phase module exclusively built for ABB ACS6000 medium voltage drives, deployed in mining hoists, cement mills, paper pulp and heavy industrial pump fan systems.This unit outperforms passive diode rectifier phase modules by delivering near-unity power factor and bidirectional energy feedback; its compact integrated radiator design cuts cabinet installation space demand by roughly 30 %, and built-in semiconductor over-temperature protection avoids catastrophic stack damage during transient overload events.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Rated continuous power capacity | 500 kW per single phase module |
| Input three-phase voltage range | 380 V AC ~ 500 V AC, 50/60 Hz |
| DC bus output adjustable range | 0 V ~ 690 V DC |
| Operation topology | 2-quadrant active rectifier (regenerative energy feedback to grid) |
| Maximum achievable power factor | 0.99 at nominal load |
| Conversion efficiency | Up to 98% under full rated operating conditions |
| Integrated protection functions | IGBT overcurrent lockout, radiator over-temperature trip, input over/under voltage shutdown, short-circuit self-locking |
| Internal assembly composition | Power IGBT semiconductors, copper cooling radiator, built-in gate driver PCB, current/voltage sensing circuits |
| Cooling method | Forced air convection cooling with dedicated drive cabinet fan duct matching |
| Operating ambient range | -20 °C to +55 °C full rated power; linear power derating above 55 °C |
| Storage temperature range | -40 °C to +70 °C, non-condensing 5–95 % RH |
| Mechanical mounting | Standard ACS6000 rack plug-in power stack form factor |
| Net unit mass | 18.6 kg complete assembly |
| Exclusive system compatibility | ABB ACS6000 medium voltage drive series only; incompatible with ACS800/ACS880 low/medium voltage drives, S800 I/O, AC31 PLC hardware |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB MV drive spare parts databases; inspect radiator fin integrity, power terminal copper lugs for oxidation, internal gate driver PCB conformal coating, and built-in temperature sensor wiring. Validate intact OEM anti-static packaging seals to filter counterfeit surplus inventory.
- Live Functional Test: Install the unit into an test power cabinet paired with a 500 kW resistive load bank and three-phase grid simulator; run continuous 24-hour full-load cyclic operation including regenerative energy feedback testing. Log DC bus stability, radiator surface temperature and input power factor with a Fluke 115 multimeter and power analyzer through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between high-power AC input terminals and low-voltage gate driver control circuits; pass threshold set above 10 MΩ. Inject simulated input short-circuit and over-temperature faults to confirm instant semiconductor lockout without permanent module burnout.
- Firmware Verification: The module’s built-in gate driver PCB holds fixed factory firmware; record driver firmware revision via service diagnostic tool, photograph power terminal and signal interface pin labeling for cabinet replacement commissioning reference.
- Final QC & Packaging: Cover power semiconductor terminals with anti-static insulation caps; place the full phase module into shock-resistant foam-lined shipping crate, attach a QC Passed label printed with inspection date before sealing original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Outdated main drive CPU firmware lacks register mapping for S-073N active rectifier control logic. Module installation triggers persistent PF LOSS and OVERCURRENT fault codes on power-up. Mitigation: Flash drive main control firmware to v7.2.1 or newer before power stack assembly.❗DIP Switch / Jumper Misconfiguration: All gate driver calibration jumpers are factory preset for 500 kW power rating. Manual jumper tampering distorts PWM deadtime and causes destructive IGBT shoot-through faults. Mitigation: Keep all internal jumpers unmodified; only adjust per official ABB service manual calibration procedures.❗Terminal / Cable Incompatibility: Generic non-OEM power bus copper busbars lack matched insulation and torque specifications for the module’s high-current lugs. Improper fitting creates thermal hotspots under full load. Mitigation: Deploy only OEM matching phase module power busbar assemblies with factory specified torque values.❗Power Supply Mismatch Risk: Undersized cabinet auxiliary 24 V DC supplies cannot feed the module’s internal gate driver PCB plus cabinet cooling fans simultaneously during startup. Combined peak draw triggers repeated auxiliary power shutdowns. Mitigation: Size drive internal 24 V control supplies with 20 % current headroom above total combined stack PCB and fan load.❗ESD Damage Risk: Dry mining plant cabinet air generates static discharge to exposed gate driver PCB traces inside the module assembly. Field records show ungrounded handling burns high-speed IGBT drive amplifiers, full mine hoist downtime labor costs exceed $2,200. Mitigation: Place an anti-static mat under the MV drive rack chassis, wear anti-static wrist strap connected to cabinet ground, and hold bare cabinet ground metal for three full seconds before extracting/seating the phase module.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BHB009884R5211 → Passive diode rectifier phase module : Needs Adaptation — passive modules lack regenerative feedback and power factor correction; entire drive grid harmonic suppression logic and cabinet filter configuration must be fully reworked
- 3BHB009884R5211 + Full Medium Voltage Drive Power Rack : Direct — native DC bus and gate signal register mapping, no drive program edits required after module swap
- 3BHB009884R5211 + ACS800 / ACS880 Low & Medium Voltage Drives : Incompatible — different power stack mechanical form factor, DC bus voltage levels and gate communication protocols
- 3BHB009884R5211 + S800 AI/DO Process I/O Modules : Partial compatibility — only 24 V fault feedback signals can cross-connect via external relay isolation blocks
- 3BHB009884R5211 + AC31 07KT98 PLC Controllers : Partial compatibility — fault status digital signals can wire to AC31 discrete input channels with auxiliary isolation relays
