Product Core Brief

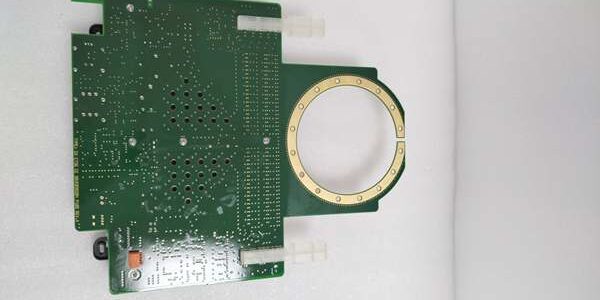

- Model: 3BHB045647R0001 (Type alias GVC736CE101)
- Brand: ABB
- Series: ACS800 / ACS880 medium voltage variable frequency converter internal gate trigger control PCB
- Core Function: Receive torque control PWM signals from drive main CPU, generate isolated trigger pulses for SCR/IGCT power semiconductors, collect current/voltage feedback for closed-loop DTC control
- Product Type: Ring-mounted gate driver signal conditioning printed circuit board for MV power stacks
- Key Specs: DTC direct torque control logic | Isolated thyristor trigger outputs | Full acrylic conformal coating | Built-in overcurrent/overtemperature fault detection ⚠️ EOL — limited stock remaining, Condition: New Surplus
Product Introduction
ABB 3BHB045647R0001 GVC736CE101 is a dedicated ring-style gate trigger board exclusively matched to ABB medium voltage ACS800/ACS880 drive power stacks, serving as the signal bridge between the main control CPU and high-power thyristor/IGCT phase modules.This unit integrates high-speed isolated trigger amplifiers and analog sampling circuits absent from generic low-voltage drive PCBs; its conformal coated circuit board resists dust and humid mine cabinet air, and real-time DTC feedback sampling cuts motor torque ripple by roughly 40 % under variable mill/hoist load conditions.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Core control algorithm support | DTC Direct Torque Control vector logic |
| Operating supply voltage | 24 V DC ± 10 %, 120 mA typical steady-state draw |
| Semiconductor trigger topology | Galvanically isolated SCR/IGCT gate pulse output channels |
| Analog feedback sampling | High-speed current/voltage sensor signal conditioning for closed-loop torque regulation |
| Integrated protection circuits | Semiconductor overcurrent lockout, PCB over-temperature thermal trip, trigger supply undervoltage shutdown |
| PCB surface protection | Full acrylic conformal coating for corrosive industrial cabinet environments |
| Front status indicators | Individual LED channel trigger status, POWER OK, FAULT diagnostic lamps |
| Mechanical mounting | Circular ring form factor fixed onto MV power module heat sink stack |
| Operating ambient range | -20 °C to +70 °C full rated signal performance; linear derating above 60 °C |
| Storage temperature range | -40 °C to +70 °C, 5–95 % RH non-condensing |
| Physical dimensions | Outer diameter 210 mm × PCB thickness 32 mm |
| Net unit mass | 0.38 kg |
| Exclusive system compatibility | ABB ACS800 / ACS880 medium voltage drive power stacks only; incompatible with ACS6000, low voltage ACS480/580, S800 I/O, AC31 PLC hardware |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB MV drive spare parts databases; inspect circular gold contact ring integrity, PCB conformal coating for peeling, all trigger channel LED functionality, and multi-pin signal connector plating for oxidation. Validate intact OEM anti-static packaging seals to filter counterfeit surplus stock.
- Live Functional Test: Mount the unit onto an ACS880 test power module heat sink paired with a drive CPU DTC signal simulator and dummy thyristor load banks; run continuous 24-hour cyclic variable torque pulse triggering with active fault trigger testing. Log stable 24 V supply and PCB surface temperature with a Fluke 115 multimeter through the full test cycle.
- Electrical Parameter Test: Use a 500 V Megger to measure isolation resistance between low-voltage logic traces and high-power trigger output circuits; pass threshold set above 10 MΩ. Inject simulated semiconductor short-circuit conditions to confirm instant trigger cutoff without permanent PCB trace burnout.
- Firmware Verification: Read and record factory DTC trigger firmware revision via ABB DriveStudio diagnostic tool; photograph ring connector pin labeling for PWM input, 24 V supply, and analog feedback wiring for MV drive cabinet commissioning reference.
- Final QC & Packaging: Cover circular gold contact ring with anti-static insulating film; place the PCB into foam-lined static shielding bag, attach a QC Passed label printed with inspection date before sealing in original factory carton.
Replacement Pitfall Guide
❗Firmware Mismatch Risk: Older ACS880 main CPU firmware revisions lack DTC register mapping matched to this board’s trigger channel layout. PCB installation triggers persistent OVERCURRENT and TRIGGER LOSS fault codes on power-up. Mitigation: Flash drive main control firmware to v8.0.5 or newer before power stack assembly.❗DIP Switch / Jumper Misconfiguration: All trigger deadtime and current sampling trim jumpers are factory calibrated for standard MV power modules. Unauthorized jumper modification causes destructive semiconductor shoot-through faults. Mitigation: Leave all factory jumpers unmodified; only adjust per official ABB ACS MV service manual calibration procedures.❗Terminal / Cable Incompatibility: Generic non-OEM ring ribbon signal cables lack shield drain wires matched to the board’s differential high-speed PWM front-end. Forced insertion scratches delicate analog sampling PCB traces. Mitigation: Deploy only OEM GVC736CE101 matched ring trunk cables with full EMC shielding termination.❗Power Supply Mismatch Risk: A low-wattage 1 A auxiliary 24 V DC supply cannot feed a fully populated MV rack with multiple ring gate driver PCBs plus cabinet cooling fan assemblies. Combined peak startup draw triggers repeated auxiliary power shutdowns. Mitigation: Size drive internal 24 V control supplies with 20 % current headroom above total combined PCB and fan load.❗ESD Damage Risk: Dry mining plant cabinet air generates static discharge to exposed circular gold contact ring and trigger amplifier chip traces. Field records show ungrounded handling burns high-speed DTC signal circuits, full mine mill downtime labor costs exceed $1,800. Mitigation: Place an anti-static mat under the MV drive power stack chassis, wear certified anti-static wrist strap connected to cabinet ground, and hold bare cabinet ground metal for three full seconds before mounting the ring PCB onto the heat sink.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BHB045647R0001 → Legacy non-DTC gate driver PCB : Needs Adaptation — older boards lack DTC torque sampling circuits; all motor control logic and protection thresholds require full drive re-tuning
- 3BHB045647R0001 + ACS800 / Medium Voltage Power Stacks : Direct — native DTC trigger register mapping, no drive program edits required after PCB swap
- 3BHB045647R0001 + ACS6000 MV Drives : Incompatible — different rectangular Eurocard gate driver form factor and trigger communication protocol
- 3BHB045647R0001 + ACS480 / ACS580 Low Voltage Drives : Incompatible — low-voltage drives use compact integrated gate driver modules without separate ring PCBs
- 3BHB045647R0001 + AC31 07KT98 PLC Controllers : Partial compatibility — only fault status digital signals can cross-connect to PLC discrete inputs via external 24 V relay isolation blocks
