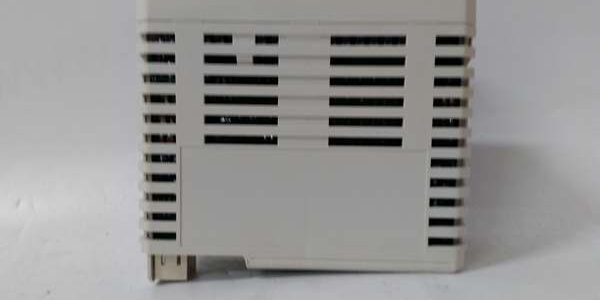

Product Core Brief

• Model: , part number 3BSE008510R1
• Brand: ABB
• Series: S800 I/O distributed fieldbus I/O platform for AC800M / System 800xA Harmony DCS controllers
• Core Function: Convert DCS control logic commands to 24VDC sourcing transistor output signals for small solenoid valves, auxiliary relays, pump contactors and indicator lamps; short-circuit current limiting, group fault monitoring and built-in inductive coil surge suppressionABB
• Product Type: Compact slide-in S800 I/O module, compatible with TU810 / TU812 / TU814 / TU830 series MTU screw terminal base units
• Key Specs: 16 output channels split into 2 isolated groups of 8 | 24VDC sourcing (positive common) only | 0.5A continuous per channel | 500VAC group-to-backplane dielectric isolation | Short-circuit self-protection | Hot-swap certifiedNote: Mass deployed mainstream S800 DCS digital output module, stocked inventory is New Surplus with intact factory anti-static sealed packaging.

Key Technical Specifications

• Module logic supply: Powered via S800 fieldbus backplane, typical power dissipation 2.1W, backplane current draw 80mA
• Nominal field output voltage: 12–32VDC rated (nominal 24VDC ±20%)ABB
• Output topology: Sourcing transistor (positive power to channel, negative common return)
• Single-channel continuous load: 0.5A @24VDC resistive / inductive loads; permanent short-circuit current limiting per channelABB
• Channel grouping: Two electrically separated 8-channel banks with independent galvanic isolation
• Dielectric isolation rating: 500VAC between each group and I/O backplane bus
• Inductive load protection: Integrated TVS varistor flyback suppression for solenoid coils
• Off-state leakage current: <0.5mA, eliminates faint lamp glow in OFF state
• Max field cable length: 600m with shielded twisted pair wiring
• Diagnostics: Individual yellow LED channel status indicators, green RUN power LED, red group fault alarm LEDs, module-wide FAULT/WARNING indicators on front faceplate
• Hot-swap support: Fully hot-swappable on energized I/O racks
• Operating temperature range: −25°C to +60°C full rated channel load
• Storage environmental limits: −40°C to +70°C, 5%–95% RH non-condensing humidity
• Physical dimensions: W45 × H102 × D119 mm; unit mass 0.157kgABB
• Mounting: TS35 DIN rail via matched TU81x screw terminal MTU base
• Compliance standards: CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC, EN 61010 safety certification
• System compatibility: ABB AC800M / System 800xA Harmony DCS local racks, Profibus DP / Foundation Fieldbus remote I/O stations; incompatible with Mod300 S100, AC500 S500, Freelance DLM legacy platforms

Product Introduction

This high-density 16-channel sourcing digital output module expands AC800M / 800xA DCS actuator drive capacity for refinery, power, pulp & paper and chemical heavy-industry process racks. Dual isolated channel groups limit fault propagation: a shorted solenoid coil only disables an 8-channel subgroup instead of all 16 outputs. is the positive-common counterpart to sinking DO814, designed for plant wiring standards where sensor/actuator positive power feeds run to module channel terminals and negative lines tie to group common returns. Built-in short-circuit current limiting and coil surge protection remove external signal conditioning hardware, while group-level fault diagnostics send real-time coil short-circuit alarms to the DCS HMI before permanent transistor burnout occurs.The module supports both local main rack installation and remote Profibus/Foundation Fieldbus I/O stations to extend DCS actuator control coverage across large plant sites without hundreds of discrete field wires routed back to the central control room.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB component trace databases; inspect rear gold edge connector pins for oxidation, front channel LED segment integrity, PCB conformal coating for peeling; verify factory static packaging seal remains unbroken for surplus stock.
2. Live Testing: Mate the unit to a TU810 terminal base on a DIN rail test bench paired with an AC800M controller simulator and 0.5A solenoid load banks; run uninterrupted 24-hour cyclic on/off switching across all 16 channels; simulate group short-circuit overload conditions to verify fault reporting to the DCS; use a Fluke 115 to log steady 24VDC field supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between each 8-channel isolated group and backplane logic ground; pass threshold set at >10MΩ insulation resistance; inject reversed 24VDC field supply and channel short-circuit faults to confirm current limiting activates without damaging output transistor semiconductors.
4. Firmware/Config Backup: Record factory module interface firmware revision via Control Builder M engineering software; photograph TU81x terminal pin layouts and document factory default fail-safe OFF output state for field commissioning reference.
5. Final QC & Packaging: Torque all TU81x base terminal screw connections to OEM torque specifications; enclose the module in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗DCS Controller Firmware Mismatch Risk: Outdated AC800M CPU firmware lacks calibrated group overload fault register mapping for the module. Fault outcome: Missing solenoid coil short-circuit HMI alarms, delayed safety interlock actuator response during process load transients. Mitigation: Flash matching validated firmware revisions to the controller before rack power-up; archive compatible firmware files to plant engineering servers.❗Sink Wiring Mismatch Risk: only supports sourcing (positive common) outputs; connecting sinking negative-common field wiring results in permanently OFF channel readings with no LED activity. Fault outcome: Complete loss of affected group actuation. Mitigation: Rewire field devices to positive common sourcing topology or swap to DO814 sinking output module for negative-common plant wiring.❗Excessive Single-Channel Load Risk: Connecting solenoids drawing more than 0.5A triggers continuous short-circuit current limiting and persistent group fault alarms. Fault outcome: Rapid flickering valve states and permanent HMI fault alerts. Mitigation: Install intermediate auxiliary relays for loads exceeding the single-channel current rating.❗Terminal Base Incompatibility Risk: Attempting to mount the module to non-TU81x series base units creates misaligned edge connector pinouts and unregulated field voltage exposure. Fault outcome: Burned output transistor circuits, permanent module failure. Mitigation: Only deploy the unit paired with OEM TU810, TU812, TU814 terminal base assemblies.❗Cross-Group Common Return Wiring Error: Jumping negative return lines across separate isolated 8-channel groups breaks group galvanic separation performance. Fault outcome: Cross-group signal bleed generating unintended simultaneous solenoid energization events during motor contactor switching transients. Mitigation: Maintain isolated negative return wiring for each individual 8-channel group per the TU terminal wiring schematic.❗High-Frequency Inductive Load Degradation Risk: Solenoid switching faster than 0.5Hz accelerates internal varistor aging over long-term continuous operation. Mitigation: Add external freewheel diodes for fast-cycle valve applications to extend module service life.❗ESD Dangers: Low-humidity refinery control room air generates static charge that damages delicate output drive transistor ICs on the PCB. Field service logs show ungrounded handling creates intermittent stuck-ON actuator faults that require multiple interlock diagnostic shifts to isolate. Mitigation: Establish direct contact with bare cabinet chassis ground metal for three full seconds before touching module edge connectors or base terminal blocks.

4-Step Replacement Guide

1. Pre-install: Set the controller to manual hold mode to freeze all discrete interlock actuator states; photograph all solenoid valve and pump contactor field wiring assignments on the TU81x terminal base assembly, and record current fail-safe output state parameter settings in Control Builder M.
2. Removal: Slide the module straight upward out of the TU81x base without bending edge connector pins; leave all field wiring terminated to the base to eliminate full retermination labor.
3. Install: Align the new unit’s rear edge connector with the TU81x base slot and slide fully seated until the module retention tab locks into place; replicate fail-safe OFF state and group overload fault monitoring parameter configurations within Control Builder M to match original process requirements.
4. Power-on Test: Energize 24VDC field supply; cycle on/off logic commands to all 16 output channels via DCS simulator, confirm consistent solenoid and relay actuation with zero group fault flags accumulating during 30 minutes of idle actuator testing before restoring live process control logic.

FAQ

Q: What is the core difference between and DO814?A: = 16-channel 24VDC sourcing (positive common) digital output; DO814 = 16-channel 24VDC sinking (negative common) digital output. All channel count, isolation, current rating, terminal base and firmware features are identical; only field wiring polarity differs.

Q: Does this module support hot-swapping while the TU terminal base remains energized?A: Hot-swap is rated and supported for the I/O platform, but manual hold mode must still be enabled on the controller to prevent unplanned safety interlock trips during the swap window. Hot-swap only protects internal module semiconductors from power transients and cannot hold output states during replacement.

Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from sinking wiring mismatch, overcurrent field loads, ungrounded ESD handling, incompatible TU terminal bases, sustained channel wiring short-circuits or high-frequency inductive load degradation is excluded from warranty claims.

Q: If a single channel inside an 8-channel group fails, can individual transistor components be repaired on-site?A: Field repair of damaged output drive circuits is not recommended for critical safety interlock systems. Repaired PCB trace paths degrade group isolation performance and raise risk of unintended actuator energization events; full module swap is the standard site maintenance procedure.

Q: Can multiple units share a single 24VDC field power circuit in one rack?A: Multiple units may share one 24VDC supply only if the supply unit maintains 20% extra current headroom above total combined module output load draw. Independent auxiliary feed wiring is recommended for racks with six or more installed digital output modules to eliminate voltage sag during simultaneous mass solenoid switching events.

Q: Is rated for Class 1 Div 2 hazardous cabinet deployment inside refinery pump MCC rooms?A: No, the open slide-in module + TU base design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated I/O enclosures are required for hazardous area process installations.

Q: What long-term upgrade path exists as this component reaches end-of-life support?A: remains the standard 16-point sourcing DC output module for all new System 800xA deployments. For distributed multi-cabinet systems, ABB recommends Profibus/Foundation Fieldbus remote I/O stations populated with to extend DCS actuator capacity without expanding main control rack footprint.
