Product Core Brief

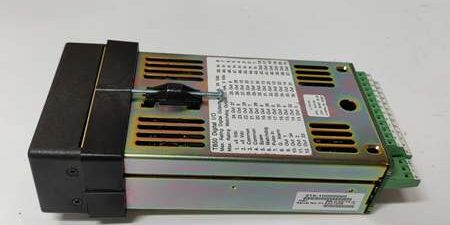

- Model: CLS216 (Watlow Anafaze CLS200 series 16-loop variant)
- Brand: WATLOW
- Series: CLS200 Compact Loop System multi-loop thermal controller family
- Core Function: Run independent PID heating/cooling regulation across 16 sensor input loops, store batch recipes, and exchange thermal data via serial communications for industrial mold and furnace processes.
- Product Type: 1/8 DIN panel mount multi-loop temperature controller with front vacuum fluorescent display and membrane keypad
- Key Specs: 16 independent PID control loops | 8 stored batch recipes | RS232/RS485 Modbus RTU | Auto-tune PID algorithm | Condition: Refurbished Load-Tested Surplus
- Series breakdown: CLS204 = 4-loop, CLS208 = 8-loop, = maximum 16-loop high-density zone control unit
Product Introduction
The WATLOW condenses 16 separate single-loop controllers into one compact 1/8 DIN panel cutout, processing thermocouple and RTD sensor signals to drive SSR or relay outputs for multi-zone mold heating and thermal treatment lines. It eliminates the cabinet space overhead of mounting 16 discrete controllers side-by-side.This unit differentiates from smaller CLS204 and CLS208 siblings by supporting double the loop count and adding expanded ramp/soak batch sequencing logic. OEM datasheet field logging places its rated MTBF at 46,000 operating hours under continuous 24/7 thermal cycling at 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | Standard 1/8 DIN panel mount cutout |
| Supported Control Loops | 16 fully independent heating/cooling PID loops |
| Loop Scan Update Rate | 0.667 seconds (1.5 samples per second) |
| Measurement Resolution | 14-bit internal conversion (0.006 % full span accuracy) |
| Supported Sensor Inputs | All standard thermocouple types; 2/3-wire RTD; 4–20 mA / 0–10 V linear analog |
| Control Output Types | SSR logic drive, mechanical relay, analog retransmit 4–20 mA |
| Onboard Recipe Memory | 8 unique ramp/soak batch profiles stored in non-volatile EPROM |
| Serial Communication Ports | RS232 (local setup); RS485 multi-drop Modbus RTU (remote SCADA) |
| Front User Interface | 32-character vacuum fluorescent display + 8 tactile membrane keys |
| Auxiliary Operating Supply | 100–240 V AC universal mains input, 35 VA steady draw |
| Continuous Operating Ambient Temp | -20 °C to +70 °C full rated accuracy; linear derate above +70 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH |
| Built-In Diagnostics | Open/short sensor fault detection, loop deviation alarm, relay status monitoring |
| Compliance Certifications | UL, C-UL, CE, EN61000 Class A industrial EMC filtering |
| Net Unit Weight | 490 g; panel depth behind cutout 92 mm |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial number against Watlow Anafaze OEM CLS200 part databases; inspect front VFD display for dead segments, membrane keys for sticking, rear SCSI terminal connector pins for oxidation. Photograph 50-pin terminal board wiring pinout for field panel installation reference.
- Live Functional Test: Mount controller to test panel paired with 16-channel thermocouple simulator and SSR load banks; run 24 hour cyclic ramp/soak recipe profiles across all 16 loops simultaneously. Use a Fluke 115 signal logger to track loop temperature stability and Modbus data transfer consistency.
- Electrical Parameter Test: 500 V Megger insulation test between sensor input circuits and chassis ground (pass threshold >10 MΩ); verify relay output short-circuit protection triggers at 120 % rated contact load without PCB trace damage.
- Recipe & Comms Verification: Write and read back all 8 batch recipe profiles to validate EPROM memory retention; establish multi-drop Modbus RS485 handshake with industrial SCADA PC, retain full loop configuration tables over a 12 hour mains power-off cycle.
- Final QC & Packaging: Clean rear SCSI connector contacts during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front keypad/display, seal unit in anti-static PE foam bag, apply dated QC Pass label listing loop linearity, recipe memory retention, and Modbus throughput test metrics before rigid carton shipping.
Replacement Pitfall Guide
❗ Photograph original recipe ramp/soak parameter values before controller power-down and extraction from the panel cutout.❗ ❗ Modbus RS485 Bus Termination Misconfiguration Risk: Missing or duplicate 120 Ω termination resistors on multi-drop Modbus networks create signal reflection noise that drops remote recipe uploads. Only enable termination at the two physical end points of the RS485 trunk cable.❗ Panel Enclosure Condensation Short-Circuit Risk: Cold-stored controllers moved into warm humid production enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before applying 100–240 V AC mains supply to prevent VFD display driver chip corrosion and intermittent loop dropout.❗ ESD Sensor Input Circuit Damage: Onboard analog signal op-amp circuits carry low electrostatic discharge tolerance. Always rest the unit on a grounded anti-static mat during rear terminal wiring or SCSI cable disconnection, especially in low-humidity cleanroom manufacturing environments.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- CLS208 8-loop mid-size thermal controller → WATLOW : Needs Adaptation — rework machine sensor wiring harness to add 8 extra input channels, expand SCADA Modbus tag mapping to cover 16 loop data registers
- VM310 24 V cabinet auxiliary power supply → WATLOW : Direct — 24 V DC auxiliary rail can power controller via optional external DC supply jumper setting
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → WATLOW : Direct — Modbus RTU RS485 bus enables bidirectional thermal setpoint and fault data exchange between motion CPU and multi-loop thermal controller
- SE311 Rexroth tightening control Eurocard → WATLOW : Direct — controller digital alarm relay contacts wire directly to SE311 24 V digital input channels for thermal fault production interlock logic
