Product Core Brief

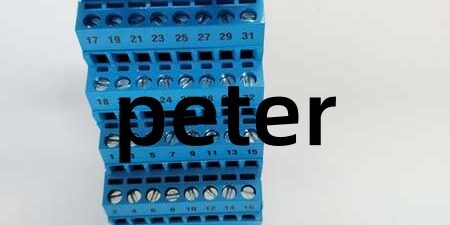

• Model： KJ4110X1-BC1
• Brand： Emerson (DeltaV M-Series Distributed Control System)
• Full Name： 16-Channel Digital Input Terminal Base Carrier
• Series： DeltaV M 系列通用 I/O 端子底座家族
• Core Function： Matched wiring base for KJ4110 series 16-channel digital input front I/O card, provides spring-cage field wiring terminals for dry contact / 24VDC discrete sensor signals; realizes signal isolation, channel fault diagnosis and backplane bus transmission between field switches and DeltaV controller. Support online hot swap of front I/O card without cutting field wiring.
• Product Type： Rack pluggable I/O wiring terminal base (cooperate with DI front module)
• Key Specs： 16 independent discrete input channels; spring clamp quick wiring; 24VDC field loop; backplane power supply; channel-level open/short circuit diagnosis
• Note: Original OEM spare; must be paired with series digital input front card; BC1 is standard non-intrinsically safe type, only for safe zone cabinet installation.



Key Technical Specifications

Electrical Parameters

1. Field signal rating: 24VDC dry contact input, max 30mA per channel
2. Supported signal types: NPN/PNP proximity switch, relay dry contact, valve limit switch, interlock digital signal
3. Backplane power: Powered by DeltaV M-series rack backplane 12VDC LocalBus, power consumption ≤0.3W
4. Isolation: Channel-to-backplane optocoupler isolation, withstand 500VAC insulation voltage
5. Diagnosis function: Detect open circuit, short circuit, abnormal loop current for each single channel

Mechanical & Wiring

• Wiring method: Orange spring-cage quick terminal, wire range 0.5–2.5mm² solid copper wire
• Channel layout: 16 channels grouped separately, printed channel number marking for easy maintenance tracing
• Mounting: DeltaV M-series dedicated 8-slot / 16-slot I/O rack plug-in installation
• Overall dimension: 160mm (W) × 102mm (H) × 32mm (D)
• Net weight: 0.43kg
• Interface: High-density gold-plated edge connector for docking with front DI card

Environmental & Compliance

• Operating temperature: -20℃ ~ +70℃
• Storage temperature: -40℃ ~ +85℃
• Humidity: 5%–95% RH non-condensing
• Anti-pollution: Meet ISA S71.04 G3 severe industrial gas environment
• Vibration & Shock: 10g peak 5–500Hz vibration, 10g half-sine shock 11ms
• Protection class: IP20 (only install inside control cabinet)
• Certifications: CE, UL, RoHS industrial automation standard



Product Introduction

The is the standard wiring carrier for Emerson DeltaV M-series 16-channel digital input modules, widely used in thermal power, petrochemical, natural gas, chemical and pharmaceutical DCS control systems.It adopts split two-layer design: the rear BC1 terminal base is fixed on the rack and connected to all field digital signal cables; the front digital input core card can be hot-plugged for replacement without removing field wiring, greatly shortening equipment downtime during maintenance.Built-in optocoupler isolation circuit eliminates ground loop interference between field equipment and control cabinet; each channel independently monitors loop status, and uploads channel fault alarms to DeltaV operator station in real time. Spring-cage terminals avoid loose wiring faults caused by long-term cabinet vibration, compared with traditional screw terminals.Typical matching front card: -BA1 16CH Digital Input module; BC1 base only applies to non-hazardous safe zone, cannot be used for Zone0/1 explosive areas (HA1 intrinsically safe base required for hazardous locations).



QA & Testing SOP

1. Incoming InspectionCheck original Emerson serial number label; inspect spring terminal elasticity, edge connector gold plating without oxidation, PCB conformal coating intact, no cracked housing.
2. Continuity & Isolation Test500V megohmmeter insulation test between channel and backplane ground; insulation resistance ≥100MΩ as pass standard. Simulate dry contact on/off to verify signal transmission.
3. Channel Diagnosis Function TestSimulate open circuit and short circuit for each channel one by one, confirm DeltaV workstation correctly reports corresponding channel fault alarm.
4. Mechanical Plugging Durability Test500 times hot swap test with matching DI front card, ensure connector contact stable without signal dropout.
5. Final PackagingESD anti-static vacuum bag packaging, attached serial number test report with 24-hour continuous operation stability log.



Installation Pitfalls & Replacement Guide

Critical Mistakes To Avoid

❗ Mix Safe-Zone BC1 with IS HA1 BaseBC1 has no intrinsic safety barrier circuit, forbidden for Zone0/1 hazardous area field signal wiring; must select HA1 yellow IS terminal base for explosion-proof loops.❗ Live Hot Swap Terminal BaseOnly the front I/O card supports hot swap; do not pull out the whole BC1 terminal base when rack power is on, will cut off all 16 field signals and trigger full interlock trip.❗ Incorrect Field Power PolarityReverse 24VDC field power leads will burn internal optocoupler isolation circuits, causing permanent channel damage. Strictly follow terminal positive/negative marking.❗ ESD Damage To Backplane ConnectorWear grounded anti-static wristband when disassembling; static discharge damages edge connector gold pins and internal signal processing circuits.❗ Mixed Digital & Analog WiringDo not lay analog 4–20mA signal cables parallel to digital input field wires, EMI noise leads to false digital point fluttering. Separate cable trays with ≥10cm clearance.

4-Step Replacement Guide

1. Pre-operation LockoutCut off DeltaV I/O rack 24VDC auxiliary power; enter DeltaV workstation to set interlock bypass for related equipment; photograph all field wiring terminal correspondence.
2. RemovalPull out the front DI I/O card first; loosen all spring-cage field wires; release rack lock buide horizontally out of the rack slot.
3. InstallationInsert new BC1 base fully into rack slot until locked; rewire all field signals strictly according to photo records, lock spring terminals tightly. Insert original matching DI front card into base.
4. Commission VerificationRestore rack power; cancel interlock bypass; monitor all 16 digital channel status on operator station for 2 continuous hours, confirm no false alarms, open/close contact signal response normal.



FAQ

Q1: What is the differeeen and -HA1?A: BC1 = Standard gray non-intrinsic safe terminal base for safe zone cabinets, no explosion-proof barrier; HA1 = Yellow intrinsically safe base with built-in Zener barrier, certified ATEX Ex ia for Zone0/1 hazardous area sensor wiring, cannot cross substitute.

Q2: Can I replace only the front I/O card without disconnecting field wires?A: Yes, the BC1 base stays fixed on rack with all field wiring retained; only pull out the front DI card for hot swap, no field wiring modification needed.

Q3: How many digital input choes support?A: Fixed 16 independent discrete input channels, compatible with 24VDC dry contact, NPN/PNP proximity switches.

Q4: What faults indicged terminal base?A: Whole 16 channels no signal collection, random single channel loss of feedback, continuous channel short/open circuit false alarms, large signal delay when contact status changes.

Q5: What warranty applies nal spare parts?A: Standard 12-month OEM factory warranty covering PCB, spring terminal and isolation circuit manufacturing defects; damage from reversed power polarity, ESD mishandling, live base disassembly is excluded from warranty coverage.
