Product Core Brief

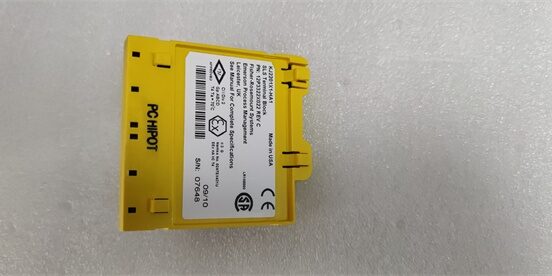

• Model： KJ2201X1-HA1 (Sub part number: 12P3322X022)
• Brand： Emerson (DeltaV Distributed Control System, SLS1508 Logic Solver series)
• Full Name： SLS Intrinsically Safe Terminal Block Assembly
• Series： DeltaV SLS Safety Logic Solver I/O wiring base
• Core Function： Yellow intrinsically safe terminal base dedicated for DeltaV SLS safety logic solver modules. Provides isolated field signal wiring interface for hazardous Zone 0/1/2 explosive environments, integrates built-in intrinsic safety barrier circuits to limit loop energy and prevent ignition of flammable gas/vapor. Matches SLS analog/discrete I/O cards for pressure, temperature, flow safety instrument loops (SIS).
• Product Type： DIN rail mount IS terminal base (passive barrier terminal block, paired with SLS I/O front card)
• Key Specs： ATEX / IECEx intrinsic safe certification; split multi-group terminal layout; screw anti-loose wiring; compatible simplex & redundant SLS I/O cards
• Note: Original OEM spare; must be used together with matching KJ2201X1 series SLS I/O front modules; cannot replace non-IS BA1 standard terminal base for hazardous area installation.



Key Technical Specifications

Electrical Safety & Loop Parameters

1. Intrinsic Safety Grade: ATEX II 1G Ex ia IIC T6, IECEx ia IIC T6 (Zone 0 hazardous area compliant)
2. Terminal Group Classification
   • A-B signal channel: Max 30mA low-energy IS sensor loop (4-20mA AI/DI)
   • A-C auxiliary channel: Max 1A non-intrinsic safety control power loop
3. Loop impedance matching: Simplex / Redundant SLS channel dedicated resistance matching
   • Simplex AI: 22.6V, 20mA, 0.4μF / 15mH
   • Redundant AI: 22.6V, 20mA, 0.2μF / 15mH
   • Discrete Input/Output separate IS barrier parameters
4. Rated insulation voltage: 650V AC between channel groups
5. Operating supply: Derived from SLS rack 24VDC backplane power

Mechanical & Structure

• Housing material: Yellow flame-retardant PC plastic (SIS safety standard color marking)
• Wiring method: M3 anti-loose screw terminal, accepts 0.5–2.5mm² copper wire
• Mounting: Standard 35mm DIN rail snap-in installation
• Overall dimension: 135mm (W) × 82mm (H) × 45mm (D)
• Net weight: 0.18kg
• Terminal layout: Four independent signal terminal banks, clear printed channel marking for SIS loop traceability

Environmental Ratings

• Operating temperature: -25℃ ~ +85℃
• Storage temperature: -40℃ ~ +85℃
• Humidity: 5%–95% RH non-condensing
• Vibration resistance: 10g peak 5–500Hz, suitable for refinery / offshore cabinet installation
• Protection class: IP20 (cabinet indoor use only)

Compliance Certifications

ATEX, IECEx, CE, ISA S71.04 G3 severe industrial environment, RoHS industrial automation standard



Product Introduction

The KJ2201X1-HA1 is the dedicated intrinsic safety terminal base for Emerson DeltaV SLS1508 safety logic solver, specially designed for SIS safety instrumented systems in petrochemical, natural gas, refinery, offshore platforms and chemical plants with explosive hazardous zones.Standard BA1 terminal bases lack intrinsic safety barrier circuits and are only suitable for safe Zone 2 non-hazardous cabinets; HA1 variant embeds precision energy-limiting resistors and Zener barriers inside the yellow housing to suppress fault voltage/current in field sensor loops, complying with global explosion-proof intrinsic safety standards.It adopts split multi-group terminal design to separate IS measurement signals and non-safe power circuits, eliminating cross-loop interference. Anti-loose screw terminals avoid wiring loose faults under long-term vibration, and the yellow safety color provides clear visual differentiation for maintenance personnel to identify hazardous area wiring racks.Typical matching SLS modules: KJ2201X1-BA1 analog input, KJ2211X1 discrete I/O cards; each terminal base supports one simplex or redundant SLS front I/O module hot-plug replacement.



QA & Testing SOP

1. Incoming InspectionVerify Emerson original serial label & ATEX explosion-proof marking; inspect yellow plastic housing for cracking, terminal screw thread integrity, internal barrier circuit solder joints without cold solder.
2. Intrinsic Safety Barrier Calibration TestUse IS safety tester to verify maximum open voltage / short-circuit current comply with Ex ia T6 limit; reject units exceeding tolerance range.
3. Continuity & Insulation Test500V megohmmeter insulation test between channel groups; insulation resistance ≥100MΩ pass standard.
4. Mechanical Wiring Durability Test500 times wire plug/unplug cycling, confirm screw locking mechanism without sliding or terminal deformation.
5. Final PackagingESD anti-static vacuum bag sealed, attached factory explosion-proof test report, serial number traceability label.



Installation Pitfalls & Replacement Guide

Critical Installation Mistakes to Avoid

❗ Mix HA1 IS Terminal with BA1 Non-IS TerminalHA1 carries internal Zener safety barriers; replacing with BA1 will lose explosion-proof protection, forbidden for Zone0/1 hazardous field signal wiring.❗ Cross-Wire IS and Non-Safe CircuitsDo not connect 24V high-power solenoid load to A-B IS signal terminals; excess energy breaks intrinsic safety certification and creates explosion risk.❗ Improper DIN Rail MountingLoose DIN rail mounting causes terminal vibration loosening, leading to safety loop signal loss and SIS system false shutdown.❗ ESD Damage to Internal Barrier ChipsMust wear grounded anti-static wristband during disassembly; static discharge damages precision barrier components and voids ATEX certification.❗ Hot Swap Without SIS BypassReplace terminal block only after activating SIS safety bypass logic; direct live removal triggers safety trip interlock.

4-Step Replacement Guide

1. Pre-operation Safety LockoutActivate DeltaV workstation SIS bypass function; cut off SLS rack 24VDC power; photograph full field wiring correspondence of each terminal group.
2. RemovalLoosen all field wiring terminal screws; unlock DIN rail snap buckle, slide old KJ2201X1-HA1 horizontally off rail.
3. InstallationClip new HA1 terminal block firmly onto DIN rail; rewire each signal strictly per photo record, tighten anti-loose screws with standard torque screwdriver.
4. Commission VerificationRestore rack power; cancel SIS bypass; monitor SLS logic solver channel status for 2 continuous hours, confirm no IS loop fault alarms and stable safety signal acquisition.



FAQ

Q1: What is the difference between KJ2201X1-HA1 and KJ2201X1-BA1?A: HA1 = Intrinsically Safe yellow terminal base with built-in explosion-proof Zener barrier, for Zone0/1 hazardous area sensor loops; BA1 = Standard gray non-IS terminal base without safety barrier, only for safe zone cabinet installation. Two models cannot cross substitute for SIS hazardous area wiring.

Q2: Can this terminal base be used without SLS logic solver front module?A: No, it is a matched terminal base, must pair with DeltaV SLS series I/O front card to complete signal acquisition and safety logic processing.

Q3: Does this terminal base require separate Zener barrier isolators externally?A: No, intrinsic safety limiting circuit is fully integrated inside the HA1 housing; no additional external safety barriers needed to meet ATEX Ex ia certification.

Q4: What faults indicate damaged KJ2201X1-HA1 terminal block?A: SLS continuous IS loop fault alarm, large analog signal drift, safety instrument trip triggered without actual field process deviation, abnormal leakage current on sensor wiring.

Q5: What warranty applies to original KJ2201X1-HA1 spare parts?A: Standard 12-month OEM factory warranty covering internal safety barrier circuits and terminal mechanical structure; damage from wrong wiring, ESD mishandling, overvoltage surge and non-certified field cables is excluded from warranty coverage.
