Component Snapshot At-a-Glance

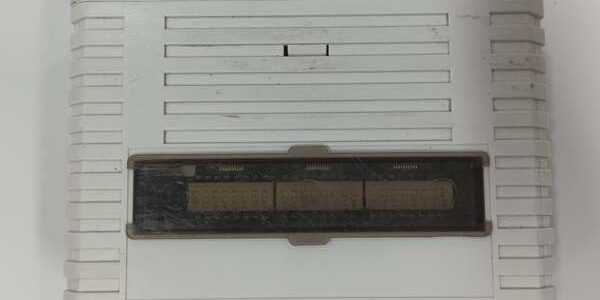

• Model: PNI800 (PNI800K01 base variant)
• Alt. P/N: Virtual VPNI software-only emulation (no hardware layer, cannot drop-in physical rack replacement)
• Product Series: ABB Symphony Plus PN800 real-time plant control network
• Hardware Type: DIN rail mount PRP dual-attached network DANP communication gateway module
• Key Feature: Dual isolated RJ45 PRP redundant Ethernet (PN800A/PN800B), Harmony API native SD controller bridge, front USB service port, hot-swappable on MB805 base
• Primary Field Use: Connect engineering workstations, HMI/800xA Operations, OPC servers to SD-series DCS controllers over PRP redundant PN800 control network in power plants, refineries, pulp mills.

Hard-Numbers: Technical Specifications

• Protocol Support: IEC 62439 PRP Parallel Redundancy Protocol, proprietary PN800 Harmony TCP API, Modbus TCP, UDP, embedded web diagnostic server
• Port Count: Dual RJ45 10/100 Ethernet (A/B PRP lanes); front USB service port; MB805 rear base power/backplane header; 8-segment front status LED bar + STOP/RESET pushbutton
• Baud/Data Rate: Ethernet full-duplex 100Mbps fixed; PN800 controller data refresh <10ms; supports up to 200 concurrent workstation/HMI connections
• Operating Temperature: 0°C to +55°C standard; coated factory variant rated -20°C to +70°C non-condensing turbine/refinery cabinet duty
• Isolation Rating: 1500VAC galvanic isolation separating dual PRP Ethernet ports from internal CPU core
• Power Draw: Max 4.8W continuous; 24VDC supply 18–30VDC nominal, 200mA operating draw
• Processing & Memory: MCF5475 256MHz ColdFire CPU; 64MB DRAM, 4MB non-volatile flash firmware storage
• PRP Capacity: Zero switchover time on single LAN failure; supports up to 256 SD-series controllers per PNI800 gateway
• Physical Mount: TS35 vertical DIN rail onto MB805 communication interface base; weight 0.38kg; IP20 cabinet enclosure
• Certifications: CE industrial EMC, UL general industrial, RoHS compliant, ATEX Zone 2 non-incendive approved

The Real-World Problem It Solves

Running engineering/HMI PCs direct onto raw PN800 control network lacks PRP redundancy. Single switch or cable cut drops all controller tag visibility, forcing unit derate or full process shutdown mid-batch/generation run.Third-party Ethernet gateways lack native Harmony API translation; they corrupt real-time analog loop data and miss SD controller fault event logs due to mismatched PN800 frame formatting.Virtual VPNI software emulation cannot handle high tag counts (30,000+ HMI tags) without scan lag, destabilizing closed-loop temperature/pressure regulation.Where you’ll typically find it:

• Combined-cycle power plant Symphony Plus main control cabinets linking SPE engineering laptops and 800xA HMI servers to boiler/turbine SD controllers
• Refinery crude blending DCS racks providing redundant access to tank level, flow, and furnace safety transmitters
• Pulp mill recovery boiler hazardous Zone 2 control rooms using coated PNI800 hardware to resist steam condensation and chemical dust PCB corrosionDual PRP isolated Ethernet eliminates single network failure downtime, native Harmony API maintains deterministic 10ms controller data refresh, and physical DIN rail hardware supports full high-density HMI tag loads without software lag.

Hardware Architecture & Under-the-Hood Logic

This module runs dedicated ColdFire real-time CPU to translate workstation TCP/Harmony API traffic to PRP control network frames; all PRP packet duplication/filtering executes locally independent of workstation OS communication loss. It hot-plugs onto MB805 base without de-energizing rack power.

1. Rack 24VDC auxiliary power feeds single-stage EMI filtered isolated PSU; split power rails separate CPU core, dual Ethernet transceivers, and USB service port circuits to block VFD harmonic electrical noise.
2. Two independent galvanically isolated RJ45 ports connect to PN800A and PN800B redundant control LANs; PRP logic duplicates every outgoing frame and filters duplicate incoming packets to eliminate tag double-counting.
3. Front USB service port accepts SPE engineering software direct connection for firmware flash, controller database upload/download without dedicated workstation Ethernet cabling.
4. Harmony API frame parser converts HMI/OPC Modbus TCP requests to native real-time telemetry; buffers up to 30,000 analog/discrete tags for low-latency workstation readback.
5. 8-segment LED status bar tracks port link activity, PRP health, controller heartbeat count, and CPU load; STOP/RESET button performs controlled firmware reboot without rack power cycle.
6. Conformal coated PCB variants seal ColdFire CPU, Ethernet isolation transformers, and signal traces against unconditioned cabinet temperature cycling, salt fog, and hydrocarbon condensation.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding PRP Ethernet Shielded Field Cables

New techs ground cable shield braid at both PNI800 RJ45 ports and central plant network switch marshalling racks. Power station ground grid potential differences create circulating ground loop current, distorting PRP frame timing and triggering intermittent SD controller dropout alarms during boiler fan VFD startup transients.Field Rule: Terminate all Ethernet cable shield braid only at the main DCS rack chassis ground stud; fully tape and isolate shield conductors at remote switch cabinet ends.

Relying On Virtual VPNI Emulation Instead Of Physical PNI800 Hardware

Field crews deploy VPNI software gateway for blending unit high-tag HMI loads to skip hardware installation. Software CPU bottlenecks stretch refresh cycles past 100ms, creating PID loop hunting and unstable furnace temperature regulation.Quick Fix: Deploy physical PNI800 hardware for any cabinet with >5,000 active HMI tags; reserve VPNI virtual gateway only for small auxiliary pump house test workstations with <1,000 tag count.

Skipping PRP Dual LAN Port Post Hot-Swap Validation

Techs hot-swap a spare onto MB805 base and only test one RJ45 Ethernet lane. Unverified secondary PN800B port may have crimp or wiring faults; single LAN failure triggers total HMI/engineering workstation blackout without redundant failover.Field Rule: After replacement, pull Ethernet cable on each PRP port sequentially and confirm zero tag loss on HMI; verify front LED bar shows healthy link status on both PN800A and PN800B lanes before returning process to automatic control mode.
