Component Snapshot At-a-Glance

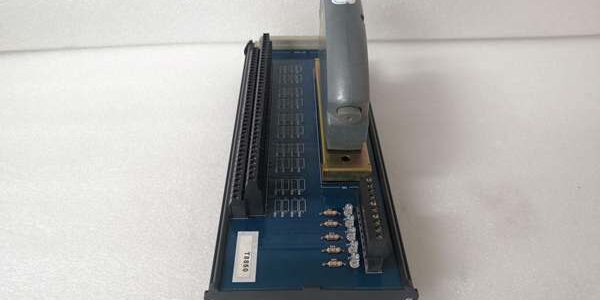

• Model: T8850; harsh environment coated variant T8850C
• Alt. P/N: No direct interchangeable substitute; dedicated output-only FTA, incompatible with T8801/T8831 input FTAs
• Product Series: ICS Triplex Trusted 8000 TMR Safety Instrumented System
• Hardware Type: DIN rail dual-purpose analog/digital output Field Termination Assembly (FTA)
• Key Feature: 40 output channels split into 5 electrically isolated 8-channel power groups, dual 96-way SmartSlot connectors for live T8451/T8480 hot-swap, 2-wire field device screw terminals
• Primary Field Use: Interface T8451 SIL3 digital output modules (ESD solenoids) or T8480 analog output modules (control valve positioners) to field actuators in refinery, power, offshore SIS racks.

Hard-Numbers: Technical Specifications

• Protocol Support: Passive signal routing only; no onboard logic, dual 96-way ribbon direct to primary/standby T8451/T8480 TMR output cards
• Port Count: TB1 dual redundant 24VDC field power terminal block; TB2 40-channel field screw terminals; SK1 primary 96-way connector; SK2 SmartSlot spare 96-way connector; green PWR OK LED
• Baud/Data Rate: No serial/Ethernet communication; output state sampled 0.5ms global chassis scan cycle by paired TMR output module
• Operating Temperature: 0°C to +60°C standard T8850; T8850C rated -40°C to +70°C salt fog/oil mist enclosures
• Isolation Rating: 50V reinforced isolation between each of the five 8-channel power groups; 1000VAC isolation between field power and ribbon signal circuits
• Power Draw: Max 40A total field load split evenly across five isolated groups; dual 22–30VDC diode OR redundant input
• Group Load Limit: Max 8A continuous per 8-channel power group; TVS surge suppression on every output leg for inductive solenoid kickback
• Field Compatibility: Digital mode = 24V ESD trip solenoids; Analog mode = 4–20mA valve positioners; non-incendive Class I Div 2 / ATEX Zone 2 certified
• Wire Range: 12 AWG to 28 AWG screw clamp terminals; TS35 standard DIN rail mount
• Physical: 360mm W × 110mm D × 68mm H; weight 0.95kg; IP20 cabinet-only rating
• Safety Rating: SIL3 compatible termination hardware, CE, UL hazardous area approval

The Real-World Problem It Solves

Generic ungrouped output terminal strips let a single shorted solenoid or valve positioner pull down an entire bank of safety outputs, triggering mass ESD valve failure with no group-level isolation. Separate AO and DO termination hardware doubles DIN rail rack space for mixed valve/solenoid safety loops.

• Where you’ll typically find it:
  • Refinery hydrocracker SIS racks paired with T8451 DO modules driving high-pressure isolation trip solenoids
  • Combined-cycle power plant burner management cabinets matched to T8480 AO modules for fuel gas control valve positioners
  • Offshore platform hazardous zone ESD racks using T8850C coated hardware to block salt fog and condensation PCB corrosionFive electrically separated power groups contain short-circuit faults to only 8 safety outputs, dual SmartSlot connectors enable live TMR output card replacement without disconnecting field actuator wiring, and dual-purpose design eliminates separate AO/DO termination hardware stock.

Hardware Architecture & Under-the-Hood Logic

This passive termination board has no microprocessor or TMR voting logic; all safety output command voting, short-circuit lockout, and slice fault diagnostics run entirely on paired T8451 / T8480 output modules, this FTA only routes isolated conditioned power and signal paths to field actuators.

1. Dual independent 24VDC power inputs feed internal diode OR circuit; seamless automatic switchover to backup supply if primary feed drops out, green PWR LED illuminates when at least one feed is live.
2. 40 field output channels split into five fully isolated power groups of 8 channels each; internal bus barriers prevent cross-group fault propagation during field wiring shorts.
3. Each output leg includes bidirectional TVS surge suppressors to absorb inductive kickback from long solenoid and valve positioner field cables, preventing backfeed voltage damage to TMR output modules.
4. Two parallel 96-way high-density ribbon connectors (SK1 main, SK2 SmartSlot spare) mirror identical signal/power paths to primary and standby T8451/T8480 cards, supporting zero field wire disconnection during hot-swap maintenance.
5. Screw clamp TB2 terminals accept standard 2-wire field actuator wiring, no ferrules required for 12–28 AWG cable, vibration-resistant torque retention for compressor/turbine cabinet runtime.
6. T8850C conformal coated variant seals PCB traces, power group isolation barriers, and terminal sense circuits to resist oil mist, salt fog, and humidity leakage in harsh process control rooms.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Actuator Signal Shield Cables

New techs ground shield braid at both T8850 TB2 terminals and remote valve junction boxes. Ground loop AC noise creates fluctuating coil/positioner voltage, causing solenoid chattering or analog valve drift faults during VFD compressor cycling.

• Field Rule: Terminate all field cable shield braid only at the Trusted SIS rack chassis ground bar; tape and fully isolate shield conductors at all remote actuator enclosures.

Overloading Single 8-Channel Power Group Above 8A Total Draw

Techs stack multiple high-current trip solenoids or large analog valve positioners onto one isolated power group, exceeding the 8A group limit. Overcurrent triggers group-wide voltage collapse and disables all 8 safety actuators mid-process run.

• Quick Fix: Split high-current field loads evenly across all five T8850 power groups; clamp meter each group’s total draw during commissioning to stay under 8A maximum continuous load.

Mismatching T8850 FTA With Input-Specific T8801/T8831 FTAs

Rookies substitute T8801 digital input or T8831 analog input FTAs in place of T8850 output termination hardware. Mismatched internal power routing creates signal short circuits and persistent TMR slice discrepancy fault alarms on paired I/O modules.

• Field Rule: Use exclusively for DO and AO output modules; T8801 reserved for T8403 DI, T8831 reserved for T8431 AI input loops only.
