Component Snapshot At-a-Glance

• Model: IS220PPROH1A
• Alt. P/N: No direct cross-revision substitute; exclusively matched with TREAHxx series protection terminal boards (IS200TREAH1A)
• Product Series: GE Speedtronic Mark VIe Distributed Turbine Control Platform (PPRO = Protection I/O Pack)

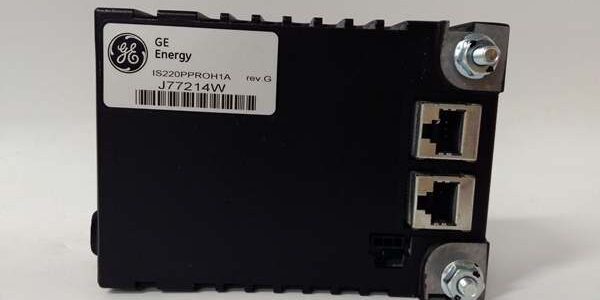

• Hardware Type: Intelligent DIN-rail mounted independent safety processing I/O pack dedicated to hardware-level turbine emergency trip protection
• Key Feature: Standalone hardware overspeed protection logic independent of main UCSA controller, dual redundant 100Mbps IONet Ethernet, full TMR triple modular redundancy support, dedicated Keyphasor/speed probe input processing
• Primary Field Use: Execute hardwired overspeed, over-acceleration, and emergency shutdown safety logic for aeroderivative gas turbines, steam turbines, and refinery compressors; processes raw speed transducer signals and drives trip solenoid circuits via TREA terminal boards to prevent catastrophic rotor overspin even if the primary control CPU fails

Hard-Numbers: Technical Specifications

• Protocol Support: GE proprietary IONet Ethernet, ControlST engineering diagnostic stack, cyclic safety frame transmission
• Port Count: 2×RJ45 IONet Ethernet (ENET1/ENET2), DB62 rear ribbon connector to TREA terminal board, front IR local service port, multi-color front LED diagnostic bank (PWR, ATTN, ENET1 LINK/ACT, ENET2 LINK/ACT)
• Baud/Data Rate: IONet auto-negotiates 10/100Mbps full duplex; hardware speed signal sampling with microsecond response for overspeed trip detection
• Operating Temperature: -30°C to +65°C full safety trip accuracy; storage range -40°C to +70°C; 5%–95% RH non-condensing humidity tolerance
• Isolation Rating: 2000VAC galvanic isolation between field speed probe circuits and internal safety processing logic
• Power Draw: Typical 8W, max 11W; 28VDC nominal rack supply, operating input range 18–32VDC, 380mA peak input current
• Transducer Compatibility: Magnetic speed probes, Keyphasor pulse sensors, accepts raw millivolt AC speed signals without external signal conditioners
• Safety Response: Hardware overspeed trip threshold executes within <2ms, no software latency delay; independent watchdog circuit locks safety state on internal module fault
• PCB Treatment: Factory acrylic conformal coating to resist turbine lubricant mist, condensation, and industrial dust corrosion
• Mount Standard: 35mm standard DIN rail lock-and-slide mounting; IP20 cabinet-only ingress rating
• Physical Dimensions: 127mm H × 83mm W × 56mm D; unit weight 0.38kg
• Hot Swap: Fully hot-swappable on live simplex/TMR Mark VIe racks; full cabinet power lockout is not required for module replacement

The Real-World Problem It Solves

Reliance solely on the main UCSA controller for overspeed protection creates a single point of failure; any CPU software crash or network outage disables critical rotor overspeed safeguards. General-purpose analog I/O packs lack dedicated high-speed hardware sampling for speed probes, introducing dangerous trip response latency during rapid acceleration events. Single-Ethernet safety modules lose all protection telemetry if one network link fails, leaving operators blind to active trip thresholds. Uncoated non-specialized I/O boards develop signal drift in oily turbine enclosures, triggering false overspeed trips or silent protection bypass conditions.Where you’ll typically find it:

1. Combined-cycle aeroderivative gas turbine TMR safety racks handling primary hardware overspeed and fuel shutoff trip logic
2. Steam turbine generator auxiliary protection cabinets paired with TREA terminal boards driving 125VDC overspeed trip solenoids
3. Refinery high-pressure compressor ESD enclosures requiring independent safety trip logic separated from standard process controlDedicated hardware overspeed processing eliminates software latency risks, dual redundant IONet removes single communication failure points, native TMR support meets SIL turbine safety audit standards, and integrated speed signal conditioning eliminates external transducer amplifier hardware.

Hardware Architecture & Under-the-Hood Logic

This safety I/O pack integrates a dedicated isolated safety microprocessor that runs overspeed and trip logic fully independent of the Mark VIe main UCSA controller; all critical speed signal evaluation executes on hardware circuits to guarantee trip response regardless of supervisory control availability.

1. 18–32VDC DIN rail input feeds multi-stage isolated power regulators dedicated to the safety processor, dual Ethernet transceivers, and speed probe signal conditioning circuits.
2. DB62 rear ribbon connector links to paired TREA terminal boards, routing raw AC speed probe and Keyphasor signals to internal anti-aliasing filters that suppress VFD electrical noise and mechanical vibration interference.
3. Hardware overspeed comparator circuits continuously sample rotor speed signals at microsecond intervals; if measured speed exceeds hard-configured trip thresholds, independent hardware logic immediately asserts trip output signals to the TREA board without waiting for controller command.
4. Dual ENET1/ENET2 IONet ports operate active/standby; safety threshold status, fault logs, and speed trending data automatically reroutes to the healthy Ethernet port if one link drops offline.
5. Front IR port enables wireless ControlST connection for local firmware upgrades, overspeed threshold calibration, and fault log extraction without hardwired engineering cables.
6. Front-panel multi-color LED bank delivers instant visual diagnostics: PWR (28V rack supply health), ATTN (hardware/safety fault flag), LINK/TxRx per Ethernet port for cable/switch link verification.
7. Onboard non-volatile flash memory stores overspeed trip setpoints, speed probe scaling factors, and sequence-of-event safety trip logs retained through complete cabinet power loss.

Field Service Pitfalls: What Rookies Get Wrong

Mismatched Firmware Between PPRO Pack and Mark VIe UCSA Controller

New technicians flash updated controller firmware without matching IS220PPROH1A revision. Version incompatibility breaks safety data synchronization, triggers constant ATTN fault alarms, and disables automatic TMR cross-voting for overspeed protection.Field Rule: Upload identical matched firmware bundles for all UCSA controllers and PPRO safety packs; run full speed probe channel scan and forced overspeed functional test post-upgrade before returning the turbine online.

Dual-End Grounding Speed Probe Cable Shields Induces Severe Speed Measurement Drift

Junior field staff ground probe shield braid at both the TREA terminal block and turbine-mounted transducer junction boxes. Parallel ground loop AC noise distorts raw AC speed signals, generating false overspeed pre-alarms or silent under-measurement that bypasses safety trip thresholds during VFD pump/compressor cycling.Quick Fix: Terminate all speed sensor cable shielding only at the Mark VIe cabinet chassis ground bar; fully tape and isolate shield conductors at all remote turbine-mounted probe enclosures.

Blocked Cabinet Airflow Creates Chronic Thermal Safety Trip Offset

Field technicians stack IS220PPROH1A modules flush against power supplies and relay I/O packs with zero vertical clearance above/below each safety pack. Internal PCB temperatures exceed 65°C rated limit, causing hardware speed comparator drift and erratic false overspeed trip triggering.Field Rule: Maintain a minimum 80mm vertical empty clearance top and bottom of every PPRO DIN rail assembly; clean cabinet intake air filters every 90 days in oily refinery and turbine house environments.
