Component Snapshot At-a-Glance

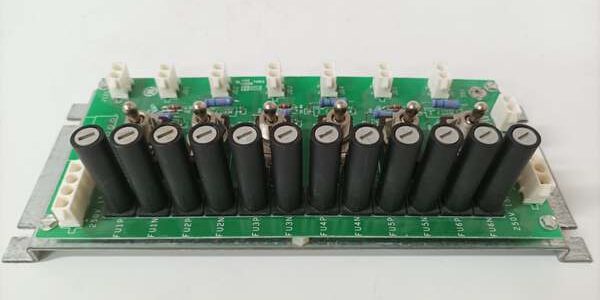

• Model: IS200JPDDG1AAA
• Alt. P/N: Base part IS200JPDDG1A; AAA suffix = full factory conformal coating for harsh turbine cabinet environments
• Product Series: GE Speedtronic Mark VI / Mark VIe Turbine Control Platform (JPDD = Jumper Power Distribution Dual 24V Module)
• Hardware Type: DIN rail mounted 24VDC redundant power distribution PCB with fused output branches and analog fault telemetry header
• Key Feature: Dual redundant 24VDC input busses, 10 independent fused output channels, hardwired fault signal daisy-chain for IS220PPDA monitoring I/O packs
• Primary Field Use: Distribute filtered 24VDC control power to Mark VIe CPU racks, analog/digital I/O packs, network switches and auxiliary turbine monitoring transmitters; transmit fuse loss, bus undervoltage and chassis ground fault signals to centralized PPDA diagnostic modules.

Hard-Numbers: Technical Specifications

• Protocol Support: Analog discrete fault signal daisy-chain bus to IS220PPDA, no onboard digital serial communication
• Port Count: Dual heavy-duty 24VDC input terminal lugs, 10 fused plug-in output connectors, 62-pin ribbon feedback header for PPDA, front panel multimeter test points
• Baud/Data Rate: Continuous analog fault state sampling at 100Hz; no serial bus timing dependency
• Operating Temperature: -40°C to +70°C full rated power throughput; performance derates above +55°C in sealed oil-mist turbine enclosures
• Isolation Rating: 2500VAC galvanic separation between high-current 24V power circuits and low-voltage fault feedback wiring
• Power Draw: Max 40A total combined input current; nominal operating DC range 20–30VDC
• Output Ratings: 10 independent load channels, 8A maximum per single channel, 32A total combined continuous output capacity
• Overcurrent Protection: Individual replaceable OEM fuses on every output branch + electronic auto current limiting to isolate short-circuits without full bus collapse
• PCB Treatment: Full acrylic conformal coating (AAA suffix) to resist turbine oil mist, condensation, and industrial dust buildup
• Mount Standard: 35mm DIN rail lock-and-slide installation; IP20 cabinet-only rating
• Physical Dimensions: 482.6mm W × 44.5mm H × 152.4mm D; unit weight 0.9kg
• Hot Swap: Not hot-swappable; full upstream dual 24VDC LOTO lockout required before board removal or wiring disconnection

The Real-World Problem It Solves

Single non-redundant 24V power feed designs cut power to all core turbine control hardware if one rectifier or battery backup supply fails mid-unit operation. Discrete external fuse terminal blocks create dozens of corrosion-prone wiring junctions and lack native centralized fault reporting to the turbine operator HMI. Uncoated bare PCBs develop intermittent open/short faults in high-humidity turbine houses, and unisolated power distribution hardware lets VFD ground loop noise distort bus voltage monitoring signals.Where you’ll typically find it:

• Combined-cycle gas turbine Mark VIe control racks supplying 24V power to main CPUs, safety I/O packs and plant communication Ethernet switches
• Steam turbine generator excitation and auxiliary monitoring cabinets paired with IS220PPDA diagnostic I/O packs for real-time power health alarm logging
• Refinery turbine compressor ESD safety enclosures powering flame scanners, vibration transmitters and emergency shutdown relay logicDual redundant diode OR-ing inputs eliminate single-source DC power failure risks, per-channel fusing contains short-circuit faults without full rack power loss, and integrated PPDA daisy-chain header removes separate dedicated fault monitoring wiring runs.

Hardware Architecture & Under-the-Hood Logic

This power distribution board contains no real-time control processing logic; it acts as an EMI-filtered, fused power splitter for redundant 24VDC control power and continuously samples bus voltage and blown fuse states to send analog fault signals to the IS220PPDA monitoring pack via multi-conductor ribbon cable.

1. Dual independent 24VDC input lugs accept power from separate rectifier/battery backup sources; internal power diodes enable seamless automatic OR-ing if one feed drops offline.
2. Integrated EMI filter and transient surge suppression circuits block AC ripple and voltage spikes to protect downstream sensitive controller and network hardware.
3. 10 dedicated fused output branches split clean filtered 24V power to individual I/O packs and communication equipment; each blown fuse generates a unique discrete fault signal for diagnostic reporting.
4. Onboard voltage sensing circuits track main bus potential; undervoltage conditions trigger dedicated analog alarm signals routed directly to the PPDA ribbon header.
5. Multi-conductor 62-pin daisy-chain ribbon connector cascades fault data from multiple JPDD boards to a single IS220PPDA I/O pack for consolidated HMI alarm display and event sequence logging.
6. Front panel accessible test points enable handheld multimeter verification of input bus voltage and each individual output channel without full wiring terminal disassembly.
7. Conformal coated PCB fully seals all copper traces and component leads to prevent leakage currents and short circuits caused by condensed turbine oil and moisture buildup inside sealed control cabinets.

Field Service Pitfalls: What Rookies Get Wrong

Skipping Dual 24VDC LOTO Before JPDD Board Extraction

New technicians disconnect wiring or extract the JPDD board without locking out both redundant upstream 24V power feeds. Live high-current DC contact creates shock hazards and can short critical turbine control hardware, triggering uncommanded full unit ESD trips.Field Rule: Perform lockout/tagout on both primary and backup 24V rectifier breakers; wait a minimum of 3 minutes for internal board bus capacitors to fully discharge before handling any terminal lugs or wiring.

Installing Overrated Replacement Fuses Creates Hidden Fire Hazards

Junior staff swap blown branch fuses with higher amp spare parts to bypass recurring short-circuit faults. Oversized fuses fail to open during wiring shorts, leading to PCB trace burnout and permanent loss of critical turbine control power circuits.Quick Fix: Only install OEM GE fuses matching the printed amp rating on each JPDD channel label; log all fuse replacements in the turbine equipment maintenance record.

Dual-End Grounding 24VDC Power Cable Shields Triggers Constant False Undervoltage Alarms

Field technicians ground DC cable shield braid at both the JPDD DIN rail cabinet and remote I/O pack junction boxes. Parallel ground loop leakage current distorts analog bus voltage sampling and spams the plant HMI with false low-voltage alarms during VFD pump/compressor cycling.Field Rule: Terminate all 24V power cable shielding only at the Mark VIe cabinet chassis ground bar; fully tape and isolate shield conductors at all remote field I/O enclosures.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
