Component Snapshot At-a-Glance

• Model: IS200JPDHG1AAA
• Alt. P/N: Base part IS200JPDHG1A; AAA suffix = full factory acrylic conformal coating for high-humidity/oil mist enclosures
• Product Series: GE Speedtronic Mark VI / Mark VIe Turbine Control Platform (JPDH = High Density Power Distribution)

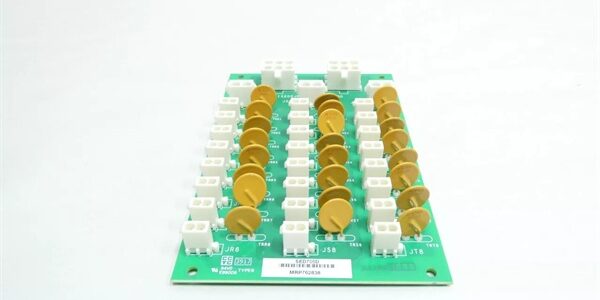

• Hardware Type: Compact DIN-rail / panel-mount 28VDC power distribution PCB with integrated PTC self-resetting overload protection
• Key Feature: 24 independent protected outputs for I/O packs + 3 dedicated ports for Ethernet switches, daisy-chain expansion via J1X connector, Class 1 Div 2 hazardous location certified
• Primary Field Use: Distribute filtered 28VDC control power to dense Mark VIe TMR I/O racks, flame scanners, vibration monitors and cabinet network switches for combined-cycle gas/steam turbines and refinery compressors.

Hard-Numbers: Technical Specifications

• Protocol Support: Passive power distribution only; analog fault feedback daisy-chain compatible with IS220PPDA diagnostic I/O packs
• Port Count: J1 6-pin 28VDC main input, J1X 6-pin daisy-chain output, 24×2-position I/O pack plugs, 3×2-position Ethernet switch plugs, multi-test point front header
• Baud/Data Rate: No digital bus; continuous analog fault state sampling at 100Hz for PPDA monitoring
• Operating Temperature: -40°C to +70°C full rated power; derate above +60°C in sealed turbine enclosures
• Isolation Rating: 1500VAC galvanic separation between main 28V input and individual output branch circuits
• Power Draw: Main input rated 13A max @ 28VDC (24–30VDC operating window)
• Output Circuit Protection: Each branch fitted with PTC self-resetting thermal fuse; max 0.8A per individual I/O port; switch ports rated higher for network hardware
• Connector Ratings: J1/J1X 6-pin Mate-N-Lok rated 600V / 13A; small 2-position output plugs 600V, PTC current-limited
• PCB Treatment: Full conformal coating (AAA revision) blocks turbine oil mist, condensation and dust corrosion
• Hazardous Approval: UL Class 1 Div 2, ATEX Zone 2 certified for non-incendive cabinet installation
• Mount Options: Standard 35mm DIN rail lock mount or 4-point screw panel mounting
• Physical Dimensions: 158.7mm H × 107.9mm W × 20mm D; unit weight 0.4kg
• Hot Swap: Not hot-swappable; full upstream 28VDC LOTO lockout required before card removal or wiring changes

The Real-World Problem It Solves

Low-density JPDD/JPDM power boards consume excessive rack space for large I/O count Mark VIe racks, requiring multiple separate distribution cards that multiply wiring labor. Disposable replaceable cartridge fuses force technician site visits every time an I/O short occurs, creating unplanned downtime. Uncoated base JPDH PCBs form intermittent high-resistance traces in humid turbine houses, and non-hazardous rated power distribution hardware cannot be deployed inside Class 1 Div 2 refinery compressor cabinets.Where you’ll typically find it:

• Combined-cycle gas turbine Mark VIe TMR safety racks housing dense analog/digital I/O packs and cabinet Ethernet switches
• Steam turbine generator auxiliary monitoring cabinets paired with IS220PPDA fault diagnostic modules
• Refinery high-pressure compressor ESD enclosures requiring Class 1 Div 2 non-incendive power distribution hardwareHigh-density port layout reduces total rack slot consumption, self-resetting PTC fuses eliminate blown fuse replacement service calls, factory hazardous location certification removes need for secondary explosion-proof terminal enclosures.

Hardware Architecture & Under-the-Hood Logic

This power distribution PCB contains no real-time control processing; it acts as an EMI-filtered, current-limited splitter for 28VDC control power and routes branch overload fault signals to the IS220PPDA monitoring pack via daisy-chain ribbon cabling.

1. 6-pin J1 main input accepts filtered redundant 28VDC feed from upstream JPDM/JPDD power chassis; integrated varistor surge suppression blocks AC transients and VFD noise.
2. Internal copper bus distributes 28V to 24 I/O and 3 Ethernet switch output branches; every individual circuit path has dedicated PTC thermal overload protection.
3. J1X daisy-chain connector cascades additional IS200JPDHG1AAA boards to expand total I/O capacity; input current of the first JPDH in the chain limits full system load capacity.
4. Onboard fault sensing circuits detect PTC tripped overload conditions for each output branch; discrete analog fault signals pass to PPDA via multi-conductor ribbon daisy-chain.
5. Front panel exposed test points enable handheld multimeter verification of main bus voltage and individual branch continuity without unplugging field I/O cables.
6. Conformal coated PCB fully seals all component leads and copper traces to prevent leakage currents and short circuits caused by condensed turbine lubrication oil and moisture buildup inside sealed control enclosures.
7. Vibration-locked Mate-N-Lok plug connectors resist intermittent power dropouts from turbine and pump frame mechanical vibration.

Field Service Pitfalls: What Rookies Get Wrong

Overloading Daisy-Chain J1X Cascading Circuits Creates System-Wide Voltage Drop

New technicians daisy-chain 3+ JPDH boards without calculating total combined I/O load; cumulative current draw exceeds the 13A rating of the first board’s J1 input plug, triggering constant PTC overload tripping and flickering I/O module power.Field Rule: Limit daisy-chain to maximum 2 cascaded JPDH boards; feed racks with high I/O counts via independent direct 28V power feeds instead of extended cascades.

Ignoring Class 1 Div 2 Wiring Rules In Hazardous Refinery Cabinets

Junior field staff use non-rated unshielded wire and improper cable glands inside Class 1 Div 2 compressor enclosures housing IS200JPDHG1AAA. Non-compliant wiring violates ATEX/UL hazardous location certification and triggers site safety audit failures.Quick Fix: Install only approved non-incendive shielded control cable and certified cable glands per GEH-6725R instruction manual for all hazardous cabinet JPDH wiring runs.

Dual-End Grounding 28VDC Power Cable Shields Generates False Overload Fault Alarms

Field technicians ground DC power shield braid at both the JPDH DIN rail cabinet and remote I/O pack junction boxes. Parallel ground loop leakage distorts PPDA analog fault sampling and spams the turbine HMI with false PTC overload alarms during VFD pump cycling.Field Rule: Terminate all 28V power cable shielding only at the Mark VIe cabinet chassis ground bar; fully tape and isolate shield conductors at all remote I/O enclosures.
