Component Snapshot At-a-Glance

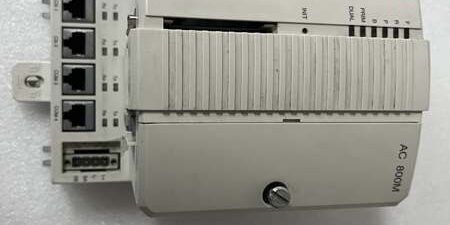

• Model: PM865K01
• Alt. P/N: 3BSE031151R1; upgraded replacement PM867K01 for new builds
• Product Series: ABB AC 800M DCS / 800xA control platform
• Hardware Type: Hot-swappable SIL3-capable main processor unit, matched with TP830 DIN rail baseplate
• Key Feature: Dual redundant Ethernet, isolated serial engineering port, full CPU/CEX-Bus/I/O redundancy with sub-10ms failover, TÜV SIL3 certified with SM81x safety daughterboard
• Primary Field Use: Execute continuous and batch process control logic for power plant boilers, refinery distillation units and water treatment facilities, communicates to S800 I/O racks via CEX-Bus.

Hard-Numbers: Technical Specifications

• Protocol Support: MMS, Modbus TCP, Profibus DP, ABB proprietary CEX-Bus, ModuleBus
• Port Count: 2×RJ45 control Ethernet (CN1/CN2), 2×RJ45 RS232 serial (COM3 modem, isolated COM4 engineering), CompactFlash slot, front LED status bank, rear baseplate CEX-Bus connectors
• Baud/Data Rate: Ethernet 10/100 Mbps auto-negotiation; RS232 max 115.2 kbps; high-speed cyclic CEX-Bus I/O scanning
• Operating Temperature: 0°C to +55°C full rated performance; storage range -40°C to +85°C
• Isolation Rating: 500 VAC galvanic isolation separating serial/Ethernet ports from core CPU logic
• Power Draw: Max 20W total dissipation; 24VDC supply range 19.2–30VDC, peak 1A input current
• Core Hardware: 96MHz MPC862P RISC processor, 128MB SDRAM, 4MB onboard firmware flash, integrated RTC
• Data Retention: Replaceable 3.6V lithium backup battery for RAM and real-time clock without rack power
• Physical Dimensions: 119mm W × 186mm H × 135mm D; total assembly weight 1.2kg
• Mount: Standard DIN rail lock-and-slide mounting; IP20 enclosure rating for cabinet-only installation
• Hot Swap: Fully hot-swappable in live redundant CPU pairs, no full rack LOTO required

The Real-World Problem It Solves

Simplex single CPU setups create unacceptably high downtime risk; any CPU hardware or firmware fault forces full process shutdown. Older low-memory PM860 series controllers lack capacity for complex SIL safety interlocks and large point-count S800 I/O layouts. Controllers without dual isolated Ethernet lose all HMI and historian communication if a single network link fails during critical unit operation. This PM865K01 adds SIL3 safety capability via plug-in SM81x modules without full rack replacement.Where you’ll typically find it:

• Combined-cycle power plant AC 800M racks handling boiler combustion, drum level and turbine auxiliary safety control loops
• Refinery hydrotreater and crude distillation DCS cabinets running redundant CPU pairs for 24/7 unattended operation
• Municipal wastewater treatment plants with extensive analog/digital S800 I/O and remote Modbus field transmittersBuilt-in redundant communication paths eliminate single network failure points, SIL3 certification meets safety instrumented system audit rules, and hot-swap capability drastically cuts planned maintenance outage windows for continuous production units.

Hardware Architecture & Under-the-Hood Logic

This CPU runs independent real-time control logic isolated from field I/O processing; primary/standby CPU pairs continuously sync application logic, alarm buffers and I/O datasets to enable seamless automatic failover. All power, network and I/O signals route through the paired TP830 baseplate.

1. 24VDC DIN rail input feeds isolated regulated power rails for the 96MHz processor, dual Ethernet transceivers and serial port circuits.
2. CompactFlash card stores the full Control Builder M control application, firmware, historical trend logs and sequence-of-event records.
3. CN1/CN2 dual Ethernet ports operate active/standby; network traffic reroutes to the healthy port within milliseconds if a cable or switch port fault occurs.
4. COM3 unisolated RS232 supports remote modem access; isolated COM4 port restricts local engineering tool connections to prevent accidental live logic edits.
5. CEX-Bus expansion interface links BC810/BC820 coupler modules to poll all distributed S800 analog and digital I/O racks cyclically.
6. Front panel multi-color LED array displays rack power, Ethernet link health, CEX-Bus activity, CPU redundancy mismatch codes and hardware fault states for rapid on-site diagnostics.
7. Lithium backup battery preserves RAM control values and real-time clock for weeks with no 24VDC rack supply present.

Field Service Pitfalls: What Rookies Get Wrong

Mismatched Firmware Revisions Between Redundant Primary/Standby CPUs

New technicians flash updated firmware to only one PM865K01 unit in a redundant pair. Version mismatch breaks cross-CPU data synchronization, triggers persistent redundancy mismatch alarms and disables automatic failover functionality.Field Rule: Load identical firmware builds to both primary and standby CPUs; execute full redundancy sync test and complete CEX-Bus I/O scan post-upgrade before returning the process online.

Dual-End Grounding Ethernet Cable Shields Creates Plant-Wide Network Noise

Junior technicians ground Ethernet shield braid at both the DCS cabinet ground bar and remote switch room patch panels. Parallel ground loop currents generate AC interference, leading to intermittent tag timeouts and delayed alarm delivery to operator HMIs.Quick Fix: Terminate Ethernet cable shielding only at the AC 800M control cabinet ground bar; fully insulate shield conductors at all remote network switch enclosures.

Zero Vertical Clearance Around CPUs Causes Chronic Thermal Watchdog Resets

Field technicians mount PM865K01 units flush against power supplies and communication modules with no empty rack space above and below each CPU. Internal PCB temperatures exceed 55°C, triggering uncommanded CPU resets and random loss of CEX-Bus I/O communication.Field Rule: Maintain a minimum 100mm vertical empty clearance above and below every CPU assembly; clean cabinet intake air filters every 90 days in oily refinery and turbine house environments.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
