Component Snapshot At-a-Glance

• Model: PM511V16, full factory part number 3BSE011181R1
• Alt. P/N: PM511V15 (older lower memory variant, limited program capacity, firmware cross-incompatible)
• Product Series: ABB Advant Controller 450, Advant OCS, S100 I/O legacy DCS platform

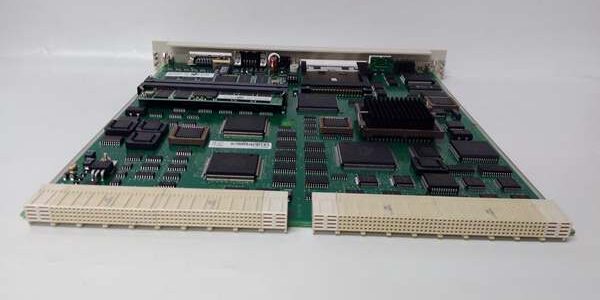

• Hardware Type: Single-slot rack mount main CPU PCB, rear 96-pin S100 backplane connector, front Ethernet/RS232 service ports, multi-status LED array
• Key Feature: 32-bit real-time RISC processor with battery-backed RAM, native S100 bus master control, dual communication ports for programming & plant HMI
• Primary Field Use: Execute closed-loop process control logic, scan all S100 analog/digital I/O, handle remote subrack communication via DSBC176 bus extenders for legacy power & chemical DCS systems

Hard-Numbers: Technical Specifications

• Protocol Support: Proprietary S100 parallel backplane bus, TCP/IP Ethernet, RS232 service serial, IEC 61131-3 control programming standard
• Port Count: 1x 10/100Mbps Ethernet RJ45, 1x RS232 D-Sub service port, full S100 rear backplane edge connector
• Baud/Data Rate: native bus 1 Mbit/s synchronous scan cycle; Ethernet max 100Mbps full duplex
• Operating Temperature: -25°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation between front communication ports and backplane logic
• Power Draw: Max 5.8W total module load, fed 24VDC from RF522 master rack backplane rail
• Processor Core: 32-bit RISC real-time multi-tasking CPU, 400MHz clock speed
• Memory Allocation: 128MB SDRAM runtime memory, 16MB onboard Flash for firmware/application storage, coin cell battery backup for RAM retention
• Logic Execution Speed: 0.1μs per boolean instruction, 2μs per 32-bit floating point math operation
• Physical Weight: 0.65 kg, standard single slot dimensions, IP20 cabinet-only rating
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

PM511V15 low-memory CPUs cap total control logic and historical trend storage capacity; larger boiler and reactor control programs hit memory limits mid-commissioning, forcing costly program simplification or full CPU rack replacement.External standalone communication gateways add extra DIN rail hardware, separate power supplies, and additional fault vectors between the master CPU and plant HMI/SCADA servers.Unbuffered controller CPUs lose runtime variables and I/O mapping data during brief rack power flickers; battery-backed RAM on PM511V16 holds all live control data for offline maintenance cycles without program re-download.Where you’ll typically find it:

• Fossil & combined cycle power plant RF522 master turbine control racks paired with DSAI RTD temperature, DSAO valve output and DSDP encoder pulse I/O cards
• Refinery legacy Advant OCS central DCS master chassis driving remote DSRF197 I/O subracks via DSBC176 bus extenders
• Pulp mill recovery boiler main control racks running high-density web speed tracking and safety interlock logicThis high-memory master CPU eliminates external communication gateway hardware, retains live control data through short power interrupts, and supports full-scale plant process control programs without memory capacity bottlenecks.

Hardware Architecture & Under-the-Hood Logic

This module carries a dedicated real-time RISC CPU with integrated bus master controller; all I/O scanning, control loop math, and network data handling run locally on the board, no secondary processing hardware required.

1. 24VDC RF522 rack backplane power feeds internal EMI filters, isolated communication power rails, battery charging circuit, and front-panel status LED drivers.
2. Coin cell backup battery maintains SDRAM runtime memory for weeks with rack power removed, preserving I/O states, setpoint values and fault history logs.
3. Onboard bus master ASIC synchronizes 1Mbit/s backplane scan timing, sequentially polling all analog, digital and bus extender I/O modules in the master and remote subracks.
4. Front Ethernet port transmits real-time process values, alarm logs and trend data to plant SCADA/HMI servers; RS232 service port used for offline program upload, firmware upgrades and bench diagnostics.
5. Multi-tasking real-time OS prioritizes critical safety interlock logic above non-critical trending and communication tasks to guarantee deterministic millisecond control response.

Field Service Pitfalls: What Rookies Get Wrong

Downgrading PM511V16 To PM511V15 Low-Memory CPU As Direct Replacement

Junior technicians install PM511V15 spare boards without checking program memory requirements. The smaller Flash/RAM capacity truncates large control logic blocks, triggering constant program fault codes and unplanned process trips after rack restart.

• Field Rule: Only deploy PM511V16 for full-size plant control programs; reserve PM511V15 spares for small auxiliary local I/O control racks only.

Disconnecting CPU Backup Coin Cell During Routine Maintenance

Techs remove the onboard backup battery to clean the PCB. All runtime setpoints, accumulated trend data and I/O fault logs erase immediately, requiring full program re-download and loop re-tuning before production restart.

• Quick Fix: Leave backup battery installed unless full firmware reflash is required; keep matching spare coin cell batteries on hand for scheduled replacement every 3 years.

Hot-Swapping CPU Module With RF522 Master Rack Energized

Live backplane transients from card extraction corrupt bus timing registers and wipe battery-backed runtime memory. This forces full plant control logic reloading and triggers full safety shutdown sequences.

• Field Rule: Cut RF522 master rack 24VDC supply breaker and wait 30 seconds for backplane rails to discharge before removing or inserting the PM511V16 CPU module.
