Component Snapshot At-a-Glance

• Model: SC510, full factory order part number 3BSE003832R1
• Alt. P/N: SC511 (single-channel non-redundant bus interface, limited remote subrack capacity)
• Product Series: ABB S100 I/O, Advant OCS, Advant Controller 450 (PM511 CPU) legacy DCS platform

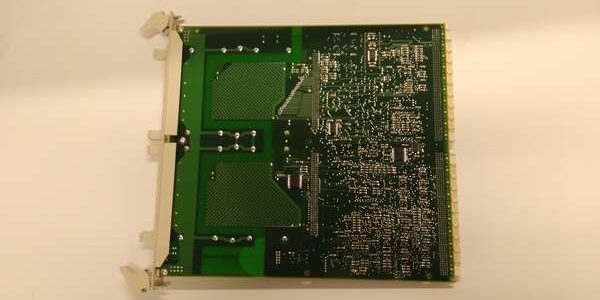

• Hardware Type: Single-slot RF522 master rack plug-in bus coupler PCB, dual 96-pin bus connectors, front diagnostic LED array
• Key Feature: Galvanically isolated S100 bus master interface, supports up to five remote DSRF197 subracks, optional dual redundant bus topology
• Primary Field Use: Bridge PM511 series main CPU to all local and remote S100 I/O subracks, synchronize global 1Mbit/s backplane scan timing across distributed cabinet layouts

Hard-Numbers: Technical Specifications

• Protocol Support: Proprietary ABB S100 parallel synchronous backplane bus, acts as dedicated bus master bridge between CPU and I/O subracks
• Port Count: 1 master CPU backplane bus port, 1 external bus extension port for DSBC176 cabling
• Baud/Data Rate: Fixed native S100 bus speed 1 Mbit/s, synchronized lockstep with PM511 CPU scan cycle
• Operating Temperature: -25°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation between CPU master bus domain and remote extended I/O bus domain
• Power Draw: Max 3.9W total module load, 24VDC fed from RF522 master rack backplane rail
• Max Supported Remote Subracks: 5 independent DSRF197/DSRF190 I/O subracks via DSBC176 extenders
• Max Cable Distance Per Subrack: 12m shielded S100 bus cable, matched to DSBC176 signal regeneration limits
• Redundancy Mode: Hot standby dual SC510 pair supported for critical safety turbine control racks
• Physical Weight: 0.41 kg, standard single slot dimensions, IP20 cabinet-only mounting
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

Direct CPU bus tapping without a dedicated SC510 coupler creates bus load overload when connecting more than two remote I/O subracks. Signal attenuation across long trunk cables triggers cyclic I/O register timeouts and sporadic module fault logs during peak process load.Non-isolated bus couplers create cross-cabinet ground loop currents between master RF522 rack and remote MCC subracks; VFD switching noise corrupts bus clock waveforms, causing unplanned control loop freezes.Single-port SC511 interfaces cap remote subrack count at two, forcing costly additional master rack chassis for large boiler and refinery distributed I/O layouts.Where you’ll typically find it:

• Combined cycle power plant RF522 master turbine control racks paired with PM511V16 CPU and multiple remote DSRF197 boiler I/O subracks
• Refinery legacy Advant OCS central DCS cabinets connecting tank farm and reactor remote I/O via DSBC176 bus extenders
• Pulp mill recovery boiler main control chassis linking web speed encoder, temperature RTD, and valve modulating I/O subracksThis isolated bus coupler offloads bus timing management from the main PM511 CPU, supports up to five distributed remote I/O subracks, and blocks cross-rack ground offset noise to stabilize continuous process scan performance.

Hardware Architecture & Under-the-Hood Logic

This board integrates dedicated bus timing and isolation ASICs; no standalone process CPU, only manages bidirectional signal buffering and clock synchronization between master CPU and remote I/O bus segments.

1. 24VDC RF522 rack backplane power feeds internal EMI filters, isolated DC-DC power converters split for CPU side and remote bus side, front panel status LED drivers.
2. Incoming CPU master bus signals pass TVS surge suppression before entering isolated buffer circuitry to block rack power transients from propagating to remote subracks.
3. Galvanic isolation barrier electrically separates master chassis ground and remote MCC cabinet ground, eliminating circulating ground loop noise currents on kilometer-scale bus trunks.
4. Onboard timing ASIC reconstructs degraded bus clock and data waveforms, maintains synchronous 1Mbit/s scan timing across all local and remote I/O modules without CPU intervention.
5. Front LED bank displays bus power present, active bidirectional data traffic, cable open/short faults, and standby redundant coupler status; fault registers forward to PM511 CPU for HMI alarming.

Field Service Pitfalls: What Rookies Get Wrong

Deploying SC511 Single-Port Couplers To Replace SC510 Multi-Subrack Interfaces

Junior technicians install SC511 spare boards without verifying total remote subrack count. The two-subrack hard limit cuts off remaining distributed I/O banks, generating permanent bus mapping faults and offline process measurement points.

• Field Rule: Only mount SC510 for layouts requiring 3+ remote DSRF197 subracks; reserve SC511 spares for small single remote I/O cabinet layouts only.

Running Unshielded Bus Cable Between SC510 And DSBC176 Remote Extenders

Field crews deploy generic unshielded control wire for bus trunk runs. Inductive coupling from adjacent motor power cables distorts clock signals, triggering daily cyclic I/O dropout alarms during high-load production shifts.

• Quick Fix: Install factory specified shielded twisted pair bus cable; single-point ground cable shield only at the master RF522 rack terminal end, leave remote subrack shield floating.

Hot-Swapping Module With Master Rack Energized

lacks hot-swap rated bus buffer circuits. Removing the live coupler creates open bus transients that crash the PM511 master CPU and initiate full plant safety shutdown sequences.

• Field Rule: Cut master rack 24VDC supply breaker and wait 30 seconds for bus rails to discharge before removing or inserting the bus interface module.
