Component Snapshot At-a-Glance

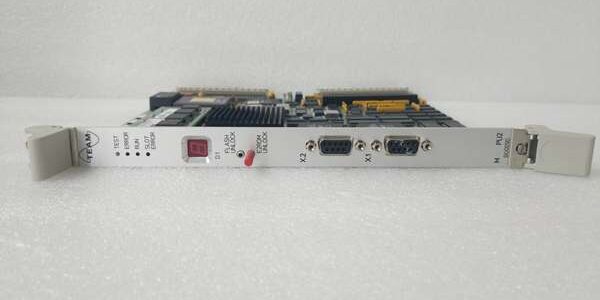

• Model: TEAM BG0090
• Alt. P/N: BG0080 (16-channel compact DI-only variant); BG0100 (32DO heavy relay output variant)
• Product Series: BG0000 VME digital I/O peripheral board, cross-compatible with ALSTOM ALSPA C80/HPC turbine control racks
• Hardware Type: Single-height VME plug-in PCB, front terminal strip for field wiring, multi-channel fault LED indicators, gold-plated rear VME edge connector
• Key Feature: Split 16 isolated digital inputs + 16 solid-state digital outputs, independent per-channel overcurrent/short circuit protection
• Primary Field Use: Interface field 24VDC breaker auxiliary contacts, valve limit switches, and motor interlock signals to VME rack CPU logic for turbine supervisory control.

Hard-Numbers: Technical Specifications

• Protocol Support: VME64 parallel backplane bus, no native external fieldbus on-board
• Port Count: 16 x opto-isolated digital input terminals, 16 x solid-state digital output terminals
• Baud/Data Rate: VME backplane 10ms fixed I/O scan refresh cycle
• Operating Temperature: -20°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 1500Vrms opto-isolation between field wiring and VME backplane logic
• Power Draw: 4.1W total module draw at nominal 24VDC rack supply
• Main Input Power: 18–36VDC station battery, nominal 24VDC VME backplane feed
• DI Signal Level: Logic 1 ≥18VDC, Logic 0 ≤6VDC, 3kΩ input resistance per channel
• DO Rated Output: 0.5A per channel solid-state, max 2A bank total per 8-channel group
• EMC Compliance: IEC 61000-6-2 substation surge and VFD noise immunity
• PCB Treatment: Full acrylic anti-sulfur, anti-salt fog conformal coating
• Physical Weight: 0.46kg single VME slot form factor

The Real-World Problem It Solves

Stacking separate DI-only BG0080 and DO-only BG0100 boards consumes two full VME slots per rack. Extra slots add more wiring terminations that corrode or open in hot turbine cabinet cycling.Unisolated field contact wiring creates common-mode voltage drift that corrupts VME backplane logic registers, triggering random false turbine interlock trips during MV breaker switching transients.Where you’ll typically find it:

• Steam/gas turbine governor ALSPA C80/HPC VME control racks for valve and breaker status monitoring
• Refinery large compressor unit supervisory control cabinets for process interlock signal collection
• Fossil power plant generator excitation auxiliary control rack binary signal conditioningThis single-slot mixed I/O board eliminates two separate hardware pieces and cuts cabinet wiring labor by half for standard 32-point binary field signal setups.

Hardware Architecture & Under-the-Hood Logic

This board uses discrete optocoupler isolation banks and dedicated output driver chips, no onboard user-programmable DSP; it acts as a buffered signal bridge between field 24V wiring and the VME rack CPU bus.

1. Raw 24VDC backplane rack power feeds multi-stage LC EMI filter to strip switching noise before powering input opto banks and output driver circuits.
2. Each of the 16 field DI channels passes through independent opto-isolation to break ground loops between field equipment and rack control ground.
3. Input latch registers buffer all 16 DI states, then transmit full input word data to the VME backplane on the fixed 10ms rack scan cycle.
4. 16 solid-state DO channels receive command logic levels from the VME backplane, each channel fitted with independent current-limiting short-circuit protection.
5. Front panel individual LED per channel: green = DI closed / DO energized, red = channel short fault for fast on-site troubleshooting without workstation access.

Field Service Pitfalls: What Rookies Get Wrong

Swapping BG0080 DI-Only Or BG0100 DO-Only Boards In Place Of BG0090

New techs grab single-function BG series spares without matching full part number. BG0080 lacks output drivers, BG0100 has no input opto banks; rack CPU throws constant I/O mapping faults and loses half of all field signal visibility.Field Rule: Only deploy BG0090 for mixed 16DI/16DO rack slots; store BG0080 and BG0100 single-function spares in separate labeled bins.

Hot-Swapping Module While Live Field 24V Wiring Remains Terminated

Junior crews pull the VME card while field valve/breaker wiring stays energized. Open-circuit transients surge backward through the VME backplane, corrupting CPU memory registers and triggering unplanned turbine runback interlocks.Quick Fix: Lock out and de-energize all field 24VDC DI/DO wiring at cabinet terminal blocks before extracting the BG0090 module.

Overloading Solid-State DO Channels With Large Auxiliary Relay Coils

Rookies wire heavy cabinet annunciator relay coils directly to board DO terminals. Channel current exceeds the 0.5A rated limit, burning internal output driver chips and permanently disabling actuator control logic.Field Rule: All external relay loads must use intermediate auxiliary relays to buffer current; never connect coils drawing over 0.3A directly to BG0090 DO terminals.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
