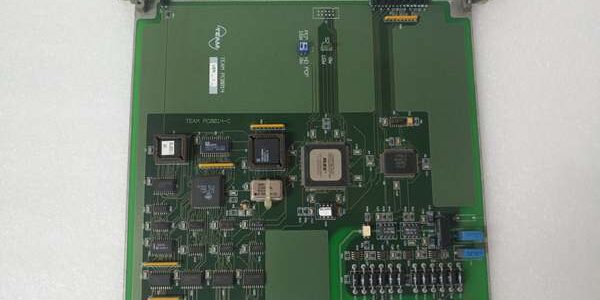

Component Snapshot At-a-Glance

• Model: TEAM BL0308, factory part suffix PC0014-P
• Alt. P/N: BL0307 (8-channel analog-only variant); BG0090 (pure 16DI/16DO digital I/O, no analog channels)
• Product Series: TEAM BL0000 VME peripheral I/O board, fully drop-in compatible with ALSTOM ALSPA C80/HPC turbine control racks
• Hardware Type: Single-height VME plug-in PCB, front terminal block for field sensor wiring, dual DB9 serial service ports, multi-channel fault LED bank, gold-plated rear VME edge connector
• Key Feature: Software configurable 6 analog input channels + 14 programmable binary DI/DO points, independent per-channel 1500V opto-isolation
• Primary Field Use: Condition 4–20mA pressure/temperature transmitter analog signals and monitor valve/breaker binary status for steam/gas turbine governor supervisory logic.

Hard-Numbers: Technical Specifications

• Protocol Support: VME64 parallel backplane bus, front RS232 service port for local calibration, Modbus RTU over RS485 secondary
• Port Count: 6 analog input terminals, 14 configurable digital I/O terminals, 2 x DB9 serial service ports
• Baud/Data Rate: VME backplane fixed 10ms I/O scan cycle, RS232 locked 9600bps calibration baud
• Operating Temperature: -20°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 1500Vrms opto-isolation per individual analog/digital channel
• Power Draw: 4.7W total module draw at nominal 24VDC rack supply
• Main Input Power: 18–36VDC station battery, nominal 24VDC VME backplane feed
• AI Signal Range: Software selectable 0–10V / 4–20mA industrial transmitter inputs
• DI Signal Level: Logic 1 ≥18VDC, Logic 0 ≤6VDC 24V wet contact inputs
• DO Rated Output: 0.5A per channel solid-state, per-channel current limiting short-circuit protection
• EMC Compliance: IEC 61000-6-2 substation surge and VFD noise immunity
• PCB Treatment: Full acrylic anti-sulfur, anti-salt fog conformal coating
• Physical Weight: 0.52kg single VME slot form factor

The Real-World Problem It Solves

Stacking separate BL0307 analog input and BG0090 digital I/O boards consumes two full VME slots per rack. Extra hardware adds dozens of wiring terminations that corrode and open in hot turbine cabinet thermal cycles.Unisolated analog transmitter wiring creates common-mode voltage drift that skews pressure/temperature readings, triggering false turbine runback interlocks during MV breaker switching transients.Where you’ll typically find it:

• Steam/gas turbine governor ALSPA C80/HPC VME control racks for fuel pressure, exhaust temp, valve position transmitters
• Refinery large compressor unit supervisory control cabinets for process analog and interlock binary signals
• Fossil power plant generator auxiliary control racks monitoring lube oil and cooling water sensorsThis single-slot mixed signal board eliminates two separate hardware pieces and cuts cabinet wiring labor by half for combined analog + binary sensor monitoring setups.

Hardware Architecture & Under-the-Hood Logic

This board carries an onboard 32-bit ARM signal processing MCU for analog conversion and channel configuration, split into fully isolated analog signal zone, digital I/O zone, serial service zone, and VME backplane logic zone to block cross-talk.

1. Raw 24VDC backplane rack power feeds multi-stage LC EMI filter to strip breaker and VFD switching noise before powering analog converters, opto banks and serial transceivers.
2. Each of the 6 analog input channels passes through dedicated opto-isolation and RC anti-aliasing filter; MCU converts raw analog signals to scaled engineering values per user software configuration.
3. 14 binary channels are software toggled as DI or DO via rack CPU logic; each channel has independent current limiting to prevent full board shutdown from a shorted field wire.
4. All scaled analog values and binary I/O states buffer to VME backplane registers, transmitted to rack CPU on fixed 10ms scan cycle.
5. Front panel individual LED per channel: green = valid signal / energized output, red = channel short or open circuit fault for fast on-site troubleshooting without workstation access.

Field Service Pitfalls: What Rookies Get Wrong

Swapping BL0307 Analog-Only Or BG0090 Digital-Only Boards In Place Of BL0308

New techs grab single-function BL series spares without matching full part number. BL0307 lacks all binary I/O drivers, BG0090 has no analog conversion circuitry; rack CPU throws constant I/O mapping faults and loses half of all field sensor visibility.Field Rule: Only deploy BL0308 for mixed analog + binary rack slots; store BL0307 and BG0090 single-function spares in separate labeled storage bins.

Hot-Swapping Module While Live Field Sensor Wiring Remains Terminated

Junior crews pull the VME card while analog transmitters and valve binary wiring stay energized. Open-circuit transients surge backward through the VME backplane, corrupting CPU memory registers and triggering unplanned turbine runback interlocks.Quick Fix: Lock out and de-energize all field 24VDC analog and binary wiring at cabinet terminal blocks before extracting the BL0308 module.

Overloading Solid-State DO Channels With Large Auxiliary Relay Coils

Rookies wire heavy cabinet annunciator relay coils directly to board DO terminals. Channel current exceeds the 0.5A rated limit, burning internal output driver chips and permanently disabling valve actuator control logic.Field Rule: All external relay loads must use intermediate auxiliary relays to buffer current; never connect coils drawing over 0.3A directly to BL0308 DO terminals.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
