Component Snapshot At-a-Glance

• Full Model: PIB1201A
• Manufacturer Part Code: 3BEC0067
• Brand: ALSTOM / Converteam (legacy ALSPA P320 S3/S4 turbine & generator control platform, later GE Grid Solutions)
• Alt P/N: PIB1201B (enhanced redundant communication revision, incompatible firmware); PIB310 (rack power board without communication channels)
• Product Series: PIB1200 series multi-function VME interface board, standard 6U VME rack plug-in, fully compatible with BGTR8HE rack power supply, PIB100G analog board, PIB102A digital input board

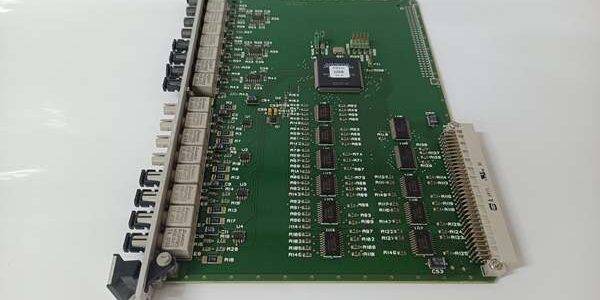

• Hardware Type: 6U VME single PCB plug-in communication + auxiliary power composite board, dual gold-plated rear VME edge connector, front panel multi-port serial bus terminals + system status LED array, full acrylic conformal coated industrial PCB
• Key Feature: Integrated dual core functions: multi-channel isolated Profibus DP / RS485 communication gateway + auxiliary rack power conditioning & distribution; onboard isolated DC-DC conversion, multi-stage EMI surge filtering, independent bus channel galvanic isolation, real-time VME bus data forwarding for turbine governor, generator excitation and unit protection SCADA communication
• Primary Field Use: Serve as rack central communication gateway for ALSPA S3/S4 control racks; exchange real-time protection status, analog CT/PT data, breaker binary signals with remote SCADA, IED protection devices and local HMI; meanwhile supply filtered isolated auxiliary 24V/5V logic power for front-end signal conditioning daughtercards, eliminate ground loop interference between field communication bus and rack control ground

Hard-Numbers: Technical Specifications

• System Compatibility: ALSPA S3 / S4 VME64 6U control rack
• Main Input Power: Wide range 18–36VDC station control battery nominal 24VDC, total module power consumption 5.2W
• Onboard Isolated Power Output: Stabilized 5V / 24VDC auxiliary logic power for local communication transceivers and small signal conditioning circuits
• Communication Interfaces (Front Panel):
  • Dual independent Profibus DP DB9 ports, 1.5Mbps max baud rate
  • Dual isolated RS485 serial channels for Modbus RTU / custom ALSPA field protocol
• Channel Isolation Grade: 1500Vrms opto-isolation per communication bus channel, separate transformer isolation for power rail
• Built-In Protections: All bus ports TVS lightning surge suppression, power input reverse polarity lockout, overvoltage OVP, overcurrent OCP, board overheat thermal alarm
• Backplane Bus: VME64 standard, deterministic real-time data refresh cycle 10ms
• Diagnostic Indicators: Front panel LED: rack power OK, Profibus link active, RS485 communication fault, board overheat, channel short-circuit alarm
• Operating Temperature: -20℃ ~ +65℃ cabinet operational; storage -40℃ ~ +85℃
• EMC Compliance: IEC 61000-6-2 heavy industrial substation surge & VFD noise immunity standard
• PCB Treatment: Full anti-sulfur, anti-salt fog conformal acrylic coating for coastal, refinery, offshore power plants
• Mounting: Hot-swappable VME rack slot with anti-vibration locking clip
• Physical Dimension: 6U VME standard 263 × 58 × 30mm; weight 0.6kg

The Real-World Problem It Solves

Separate standalone Profibus communication boards and discrete auxiliary DC-DC power modules occupy two independent VME rack slots, add dozens of vibration-prone wiring splices that drift open under long-term plant thermal cycling; PIB1201A integrates communication gateway and power conditioning into single slot to reduce cabinet space and wiring workload.Unisolated field communication bus lines create severe common-mode ground offset noise; interference distorts CT/PT analog sampling values on PIB100G analog boards, triggering random nuisance trips on differential and voltage supervision protection relays. Independent per-channel opto-isolation fully decouples field bus ground and rack control ground.Low-channel single-port communication cards cannot simultaneously connect SCADA HMI, remote feeder IEDs and turbine speed monitoring units; dual Profibus + dual RS485 multi-bus design supports multi-device parallel communication without extra expansion boards.PIB1201B enhanced redundant communication version costs higher for conventional single-SCADA monitoring cubicles; cuts spare part inventory cost for standard turbine/generator control racks without redundant bus requirements.External discrete surge suppressors for communication bus occupy extra terminal blocks and require annual re-calibration; all TVS surge protection integrated onboard to reduce maintenance points.Where you’ll typically find it:

• Steam/gas turbine governor & generator excitation ALSPA S3/S4 VME control racks
• Fossil power plant main transformer unit protection cubicle SCADA communication interface cabinets
• Refinery large MV compressor unit interlock & speed monitoring control racks paired with PIB100G/PIB102A
• Hydroelectric generator stator protection analog signal acquisition & remote monitoring panelsThis composite VME plug-in communication & power interface board unifies multi-protocol isolated bus gateway and auxiliary rack power conditioning, eliminates external surge and power conversion hardware, reduces cabinet wiring and spare inventory for critical power generation control systems.

Hardware Architecture & Under-the-Hood Logic

Three fully isolated independent circuit zones separated by optocoupler & transformer barriers, zero cross-domain noise crosstalk: station power conversion zone, multi-channel communication transceiver zone, VME backplane data logic zone.

1. 24VDC station battery input enters multi-stage LC EMI filter front-end, onboard isolated DC-DC converter generates clean stabilized auxiliary logic power for all onboard communication transceivers, independent short-circuit protection prevents full board shutdown from single bus port short fault.
2. Dual Profibus DP + dual RS485 communication channels each equipped with independent opto-isolation stage and TVS surge suppression circuit; filter substation switching transient noise to avoid bus communication dropout during MV breaker operation.
3. Onboard dedicated communication protocol DSP packages sampled analog/digital signal data from VME backplane, forwards real-time data to front field bus ports, and uploads remote field device status back to rack main CPU via rear VME gold-plated edge connector on fixed 10ms cycle.
4. Front panel multi-color LED array provides direct visual troubleshooting without DCS workstation access: green = bus link healthy, red = communication loss / channel short / overheat fault.
5. Lockable slide-in VME design prevents loose backplane contact caused by long-term temperature cycling; conformal coated PCB prevents trace corrosion and leakage current in corrosive industrial cabinet environments.

Field Service Pitfalls: What Rookies Get Wrong

Swapping Redundant PIB1201B Variant For Standard 3BEC0067

New technicians install PIB1201B spare without matching part code. Upper-level ALSPA CPU firmware does not support redundant dual-bus register mapping, triggering constant board communication alarm and full data transmission mismatch between rack and SCADA.Field Rule: 3BEC0067 mandatory for standard single-bus turbine/generator control racks; PIB1201B only for critical unit protection racks requiring redundant Profibus communication. Segregate two variants in locked labeled spare storage bins.

Hot-Swap Board Without Disconnecting All Field Communication Bus Wiring

Apprentices pull while live Profibus/ field cables connected. Sudden bus open circuit generates large voltage transients, surge back into VME backplane and damage adjacent PIB100G analog signal conditioning board sampling circuits.Quick Fix: Before removing module, cut all field communication bus power supply at cabinet terminal block, confirm all bus channels de-energized before hot swap.

Routing Unshielded Communication Bus Cables Parallel To BGTR8HE Rack Power DC Output Wiring

Maintenance crews run raw field bus control cables alongside rack power supply DC wiring. Switching EMI distorts serial bus signal levels, SCADA randomly loses generator/transformer real-time monitoring data during MV breaker switching events.Field Rule: All Profibus/ communication wiring use shielded twisted pair, routed in dedicated signal cable trays separated from DC power wiring; single-point shield ground only at the VME rack terminal side.

Deploying Uncoated Surplus Boards In Coastal/Refinery Corrosive Cubicles

Field crews install uncoated used boards without checking PCB conformal coating. Sulfur and salt fog corrode optocoupler and bus transceiver pads within 3–6 months, causing intermittent communication dropout and loss of protection remote monitoring function.Field Rule: Only fully conformal coated 3BEC0067 modules permitted in chemical, coastal, offshore power plant cabinets; re-coat bare PCB surplus before rack installation.

Overloading Onboard Auxiliary Power Output With External Field I/O Loads

Techs wire external relay coils and field sensor power directly to onboard auxiliary 5V/24V terminals. Excess load triggers channel overcurrent lockout, all rack communication bus functions shut down completely.Field Rule: Onboard auxiliary power outputs exclusively reserved for internal board communication transceivers; all external field device loads must connect to separate BGTR series cabinet bulk power supply auxiliary terminals.
