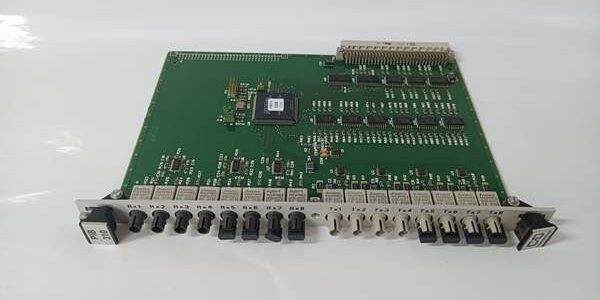

Component Snapshot At-a-Glance

• Full Model: PIB310
• Manufacturer Part Code: 3BHB0190
• Brand: ALSTOM / Converteam (legacy ALSPA P320 S3/S4 turbine & generator control platform, later transferred to GE Grid Solutions)
• Alt P/N: PIB311 (enhanced redundant power variant, different backplane pinout); BGTR8HE (standalone rack power supply, not VME plug-in)
• Product Series: PIB peripheral interface board family, standard 6U VME rack plug-in power distribution motherboard, compatible with full PIB series I/O boards (PIB100G, PIB102A)
• Hardware Type: 6U VME single PCB rack plug-in power interface board, dual gold-plated rear VME edge connector, front panel multi-terminal power/field signal terminals, full acrylic conformal coated industrial PCB with onboard shielded DC-DC conversion circuits
• Key Feature: Rack-wide isolated power distribution hub; accepts station 24VDC battery input, generates multi-channel isolated ±15V/5V stabilized logic power for all VME I/O daughtercards; integrated EMI filtering, channel independent short-circuit protection, galvanic isolation between station DC and rack logic ground, auxiliary signal surge suppression for CT/PT front-end circuits
• Primary Field Use: Central power conditioning & distribution for ALSPA VME control racks; convert unregulated substation 24VDC station battery into clean isolated low-voltage logic power for CPU, analog/digital I/O boards; eliminate ground loop noise from shared station DC bus, supply filtered power to PIB100G signal conditioning, PIB102A digital input boards in turbine governor, generator excitation and unit protection cubicles.

Hard-Numbers: Technical Specifications

• System Compatibility: ALSPA S3 / S4 VME 6U control rack
• Main Input Power: Wide range 18–36VDC station control battery, nominal 24VDC, max input draw 120W
• Onboard Isolated Power Outputs:
  • +5V logic rail: 8A continuous, short-circuit auto-recovery
  • ±15V analog signal rail: 3A each, independent channel current limiting
• Isolation Grade: 2500Vrms transformer isolation between station 24V input and all logic output rails
• EMI Filtering: Multi-stage LC front-end filter + onboard metal shielding, compliant IEC 61000-6-2 substation heavy surge immunity
• Built-In Protections: Input reverse polarity lockout, overvoltage OVP, overcurrent OCP, overheat thermal shutdown, TVS lightning surge suppression on all front terminals
• Backplane Bus: VME64 standard, power distribution traces routed separately from signal traces to avoid crosstalk
• Diagnostic Interfaces: Front panel LED indicators: main input healthy, +5V normal, ±15V active, board overheat, channel overload fault
• Operating Temperature: -20℃ ~ +60℃ cabinet operational; storage -40℃ ~ +85℃
• PCB Treatment: Full conformal anti-sulfur / anti-salt fog coating for coastal, refinery, offshore power plants
• Mounting: Hot-swappable VME rack slot, anti-vibration locking clip design
• Physical Dimension: 6U VME standard 263 × 58 × 32mm; weight 0.85kg

The Real-World Problem It Solves

Distributed discrete DC-DC converters on each I/O board create uneven voltage sag across the VME backplane; simultaneous multi-channel analog sampling loads pull down logic rails, causing random signal offset and CPU communication dropout. centralizes all rack power regulation to maintain tight ±1% voltage stability across all I/O slots.Unfiltered raw station 24VDC contains substation switching surge noise and ground potential shift; unisolated power feeds generate common-mode interference, distorting CT/PT analog signals on PIB100G and triggering nuisance protection trips. Full transformer isolation eliminates ground loop interference completely.PIB311 enhanced redundant power variants carry higher cost for standard single-source DC cubicles; cuts spare inventory cost for conventional turbine/generator control racks without redundant power requirements.Separate external EMI filter terminal blocks occupy extra rack slots and add vibration-prone wiring splices; multi-stage LC filtering integrated onboard reduces cabinet wiring complexity and maintenance workload.Standalone BGTR8HE rack power supply is cabinet-wide bulk power, cannot provide isolated per-VME-slot logic power; acts as dedicated rack power conditioner inside the VME frame for all ALSPA I/O boards.Where you’ll typically find it:

• Steam/gas turbine governor & generator excitation ALSPA S3/S4 VME control racks
• Fossil power plant main transformer unit protection cubicle signal conditioning racks paired with PIB100G/PIB102A
• Refinery large MV compressor unit interlock & speed monitoring control cabinets
• Hydroelectric generator stator protection analog signal acquisition panelsThis dedicated VME rack power interface board unifies centralized isolated logic power distribution, integrates full EMI filtering and multi-layer fault protection, stabilizes backplane voltage for all analog/digital I/O boards and eliminates ground-loop noise interference in critical power generation control systems.

Hardware Architecture & Under-the-Hood Logic

Four independent circuit zones fully separated by transformer isolation barriers, zero cross-domain noise crosstalk: station input filter zone, isolated DC-DC conversion zone, multi-channel power distribution zone, VME backplane power routing zone.

1. 24VDC station battery input enters multi-stage LC EMI filter front-end, suppresses MV breaker switching surges and VFD harmonic noise before conversion stage, reverse polarity fuse protection prevents board burnout from reversed field wiring.
2. High-frequency shielded DC-DC isolation transformer converts unregulated 24V input into galvanically separated +5V/±15V logic power; independent closed-loop regulation maintains fixed output voltage under full 0–100% load swing.
3. Multi-channel independent power distribution branches feed each VME slot backplane pinout; every branch equipped with fast current-limiting circuit, single faulty I/O board short will not crash the entire rack power rail.
4. Rear dual gold-plated VME edge connector distributes stabilized isolated logic power to all plug-in I/O boards (PIB100G analog hub, PIB102A digital input, pulse speed boards); power traces separated from signal traces to eliminate switching crosstalk.
5. Front panel multi-color status LED array provides direct visual troubleshooting: green = rail healthy, red = overload/overheat fault, no DCS workstation required for basic power fault diagnosis.
6. Lockable slide-in VME design prevents loose backplane contact caused by long-term plant thermal cycling; conformal coated PCB prevents trace corrosion and leakage current in corrosive industrial cabinet environments.

Field Service Pitfalls: What Rookies Get Wrong

Swapping Redundant PIB311 Variant For Standard 3BHB0190

New technicians install PIB311 spare without matching part code. PIB311 uses dual redundant input circuits with different VME pin assignment; rack backplane power rails mismatch, all I/O boards lose logic power and cease signal acquisition.Field Rule: 3BHB0190 mandatory for single 24VDC source ALSPA control racks; PIB311 only for dual redundant station DC supply critical unit protection racks. Segregate two variants in locked labeled spare storage bins.

Hot-Swap Board Without Disabling All VME I/O Field Wiring

Apprentices pull while live CT/PT/digital DI field wiring connected. Sudden loss of isolated logic power creates large common-mode voltage spikes, damages adjacent analog signal sampling circuits and generates lethal CT open-circuit surge hazards.Quick Fix: Before removing module, short all CT secondary terminals, disconnect PT voltage wiring and cut all field 24VDC DI power supply at cabinet terminal block.

Routing Unshielded CT/PT Analog Cables Parallel To Station 24VDC Input Wiring

Maintenance crews run raw field analog signal cables alongside main 24V power input wiring. Switching EMI distorts sampled CT/PT values, differential and voltage supervision relays trigger random nuisance trips during MV breaker switching events.Field Rule: All CT/PT analog wiring use shielded twisted pair, routed in dedicated signal cable trays separated from DC power wiring; single-point shield ground only at the VME rack terminal side.

Deploying Uncoated Surplus Boards In Coastal/Refinery Corrosive Cubicles

Field crews install uncoated used boards without checking PCB conformal coating. Sulfur and salt fog corrode DC-DC transformer pads and isolation circuits within 3–6 months, causing intermittent logic rail voltage drop and random I/O board offline faults.Field Rule: Only fully conformal coated 3BHB0190 modules permitted in chemical, coastal, offshore power plant cabinets; re-coat bare PCB surplus before rack installation.

Overloading Single Power Branch With Extra External Auxiliary Loads

Techs wire cabinet lighting, door interlock heater loads directly to regulated ±15V/5V logic terminals. Excess load triggers permanent channel overcurrent lockout, all rack I/O signal acquisition and communication functions shut down completely.Field Rule: Onboard regulated logic power outputs exclusively reserved for internal VME I/O daughtercards; all non-protection auxiliary loads must connect to separate BGTR series cabinet bulk power supply auxiliary terminals.
